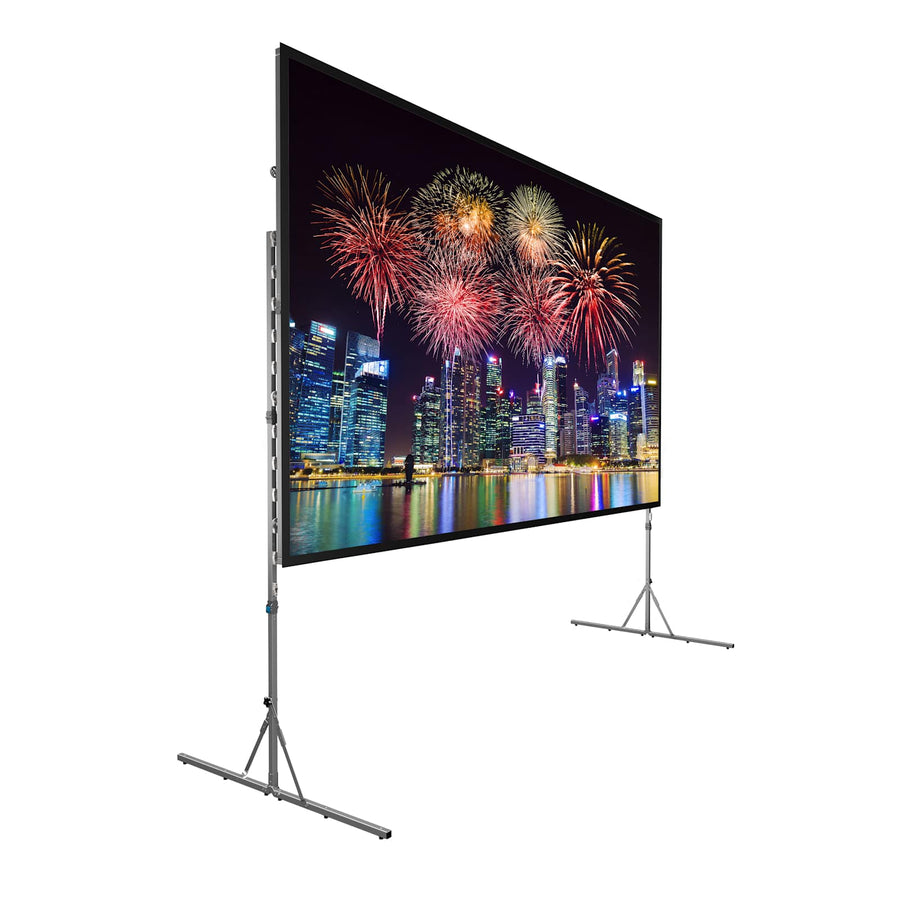

Da-Lite Fast-Fold Deluxe Screen System, 56.5 x 102.5 in HD Rental - 88605KHD
115" diagonal portable projection screen with HD Rental surface, black frame, and heavy-duty legs for rental and staging applications
The Da-Lite 88605KHD is a professional-grade Fast-Fold Deluxe Screen System designed specifically for high-demand rental and staging environments. This portable solution is built for rapid deployment and tear-down by installers of all skill levels. This specific SKU features an HD Rental surface, which is an optically enhanced, foldable material capable of delivering high-definition AV experiences. The screen is constructed with a 1 1/4" aluminum tubing frame and includes RF welded binding and matte snap caps for a clean, professional aesthetic. For enhanced longevity in high-use scenarios, the system features adjustable corner braces to correct frame bowing over time. This model utilizes a wheel and keyway leg-to-frame locking mechanism to ensure the assembly remains secure without the risk of losing individual parts. It is provided with a wheeled carrying case for efficient transport between job sites. This system is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 115 in (292.1 cm) |
| Screen Height | 56.5 in (143.5 cm) |
| Shipping Dimensions | 44" x 18" x 13" (111.8 x 45.7 x 33 cm) |
| Shipping Weight | 82 lbs (37.2 kg) |
| Size | 56.5" x 102.5" or 115" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
All other specifications 8
| Screen Format | HDTV (16:9) |
| Screen Options | Black Frame and Heavy-Duty Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Surface | HD Rental |
| TAA Compliant | Yes |
| UPC | 717068062696 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 56.5" x 102.5" - 36517GRP
36517GRP$2,715.20
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 56.5" x 102.5" - 36517P
36517P$2,715.20
Da-Lite Fill Strip Clamp
90748$28.80
Da-Lite Straight Screen Joining Clamp
90749$46.40
Da-Lite Fast-Fold Skirt, 56.5" x 102.5" Gray Skirt
36727GR$720.00
Da-Lite Fast-Fold Skirt, 56.5" x 102.5" Black Skirt
36727$720.00
Questions about this part
What is the surface type for the 88605KHD?
This unit features an HD Rental surface, which is a foldable, optically enhanced surface designed for high-definition projection.
Will this screen work for 16:9 widescreen content?
Yes, this model is designed with a 16:9 HDTV screen format to support modern high-definition video standards.
What is the difference between this and older Fast-Fold models?
This version uses a wheel and keyway leg-to-frame locking mechanism; it is not compatible with older frames using the Speedy Cranks design.
What accessories are compatible with the 88605KHD?
You can expand this system with items like the Da-Lite Fast-Fold Skirt (36727) or replacement surfaces like the Da-Tex (90805).
Is this screen suitable for outdoor use?
No, this product is not designed for outdoor use.
