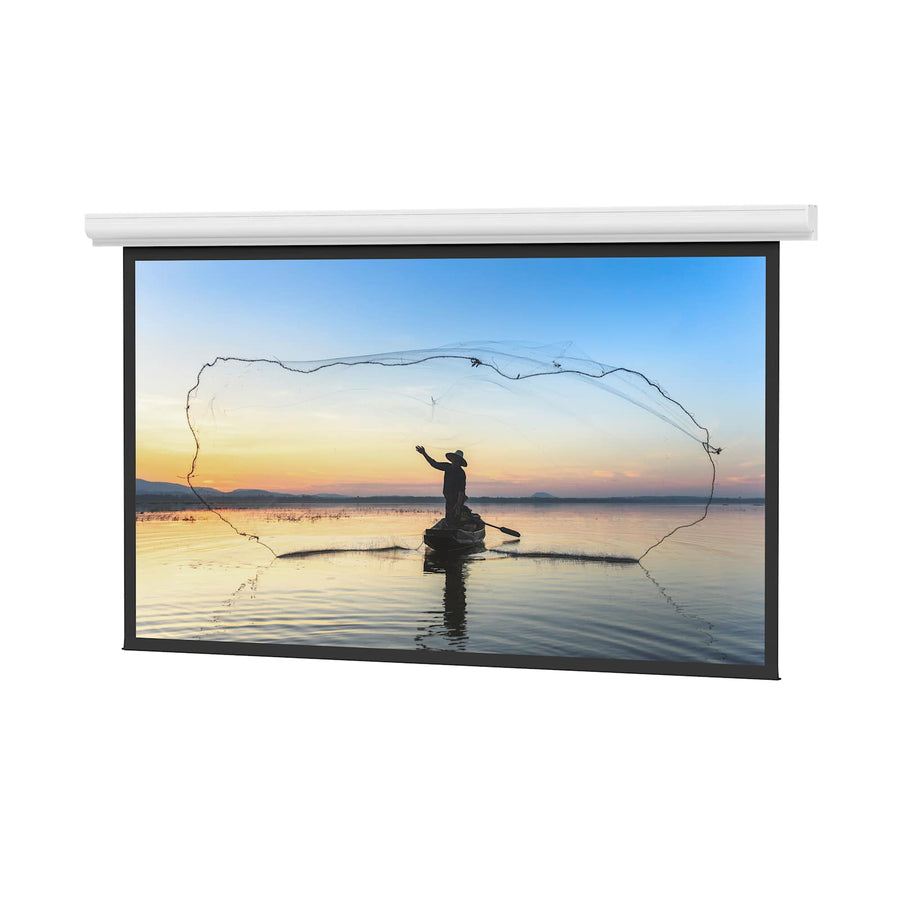

Da-Lite Designer Contour Electrol, 96" x 96" with High Contrast Matte White - 92664E
Square electric projection screen, 96" x 96" size, featuring a High Contrast Matte White non-tensioned surface
The Da-Lite 92664E is a Designer Contour Electrol series electric screen designed for both ceiling and wall mounting. This 96" x 96" square format screen features a non-tensioned High Contrast Matte White surface optimized for front projection. Built with a compact housing measuring 4 5/8" high and 4 3/32" deep, it provides a low-profile solution for professional environments. This specific model is configured with a 220V (50Hz) motor for export markets and is TAA compliant. The screen utilizes a standard black backing to help retain projected brightness and features a seamless surface for a clean aesthetic. This series is ideal for installers looking for a reduced footprint compared to traditional electric housings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 136 in (345.4 cm) |
| Screen Height | 96 in (243.8 cm) |
| Shipping Weight | 55 lbs (25 kg) |
| Size | 96" x 96" |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the configuration of the 92664E motor?
This model is equipped with a 220V (50Hz) motor intended for export use.
What mounting options are available for this screen?
The Designer Contour Electrol can be installed as either a ceiling-mounted or wall-mounted projection screen.
What accessories are compatible with the Designer Contour series?
You can add the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) or a Locking Switch Cover Plate (98837).
Does this screen include a battery motor option?
While this SKU is a 220V motor model, the Designer Contour series supports the Agility Battery Motor (lithium-ion) for wireless, no-wire installations.
Which document is needed for a submittal for the 92664E?
Installers can refer to the Designer Contour Specification Sheet for technical data or the Designer Contour with IR BIM Models for 3D modeling requirements.
