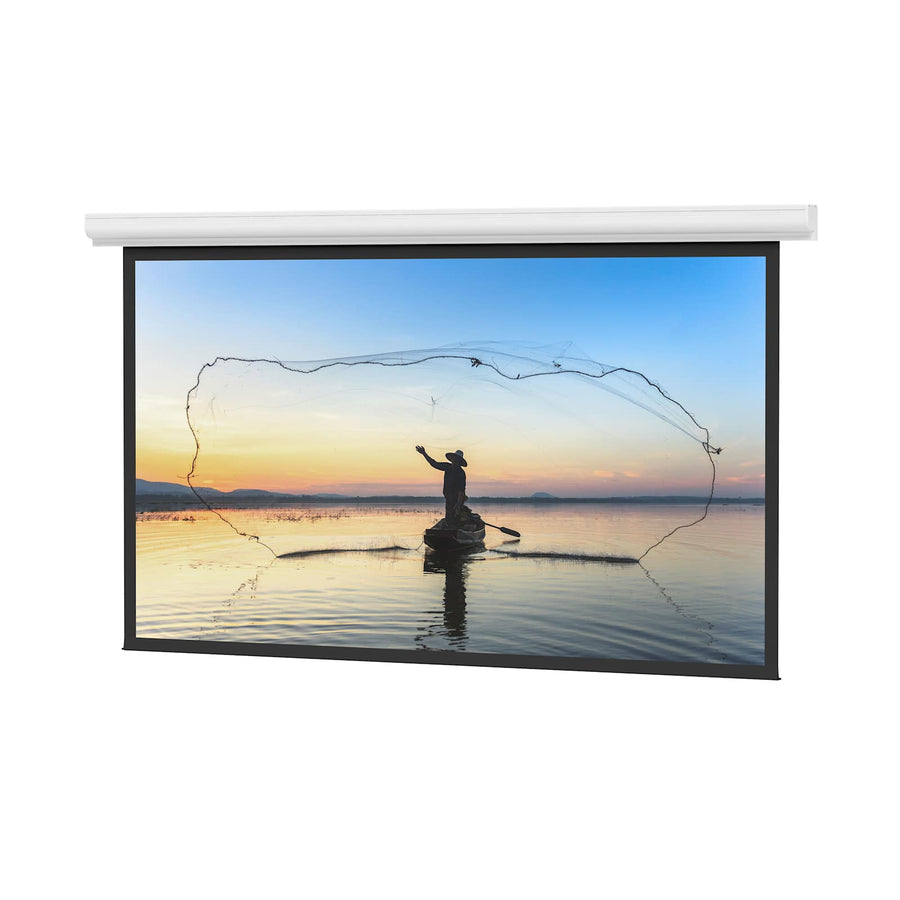

Da-Lite Designer Contour Electrol, 60" x 60" with High Contrast Matte White - 92660E
Square electric projection screen for ceiling or wall mounting with High Contrast Matte White surface and 220V export motor
The Da-Lite Designer Contour Electrol 92660E is a square-format electric projection screen designed for ceiling or wall applications. This 60" x 60" screen features a High Contrast Matte White non-tensioned surface, which is backed by standard black to help maintain projected brightness. This model is equipped with a 220V (50Hz) motor specifically for export use. For installers requiring flexible power solutions in historic buildings or locations where wiring is difficult, the Agility™ Battery Motor is an available lithium-ion option. This accessory provides over 200 cycles per charge via a micro-USB port and supports wireless handheld remote operation. The unit is TAA compliant and features a slim profile housing that measures 4 5/8” high and 4 3/32” deep.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 85 in (215.9 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Size | 60" x 60" |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 92660E suitable for ceiling or wall mounting?
Yes, this Designer Contour Electrol screen is designed for both ceiling and wall applications.
What voltage motor is included with the 92660E?
The 92660E comes with a 220V (50Hz) motor intended for export use.
Can I use the Agility Battery Motor with this screen?
Yes, the Agility lithium-ion battery motor is an option for the Designer Contour series, providing wireless operation and avoiding the need for hardwiring.
Does this screen include control options for automation?
Yes, it supports optional low-voltage control and is compatible with the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E).
Which submittal documents are available for the 92660E?
You can access the Designer Contour Specification Sheet, the Installation and Connections manual, and BIM models via the Resources tab.
