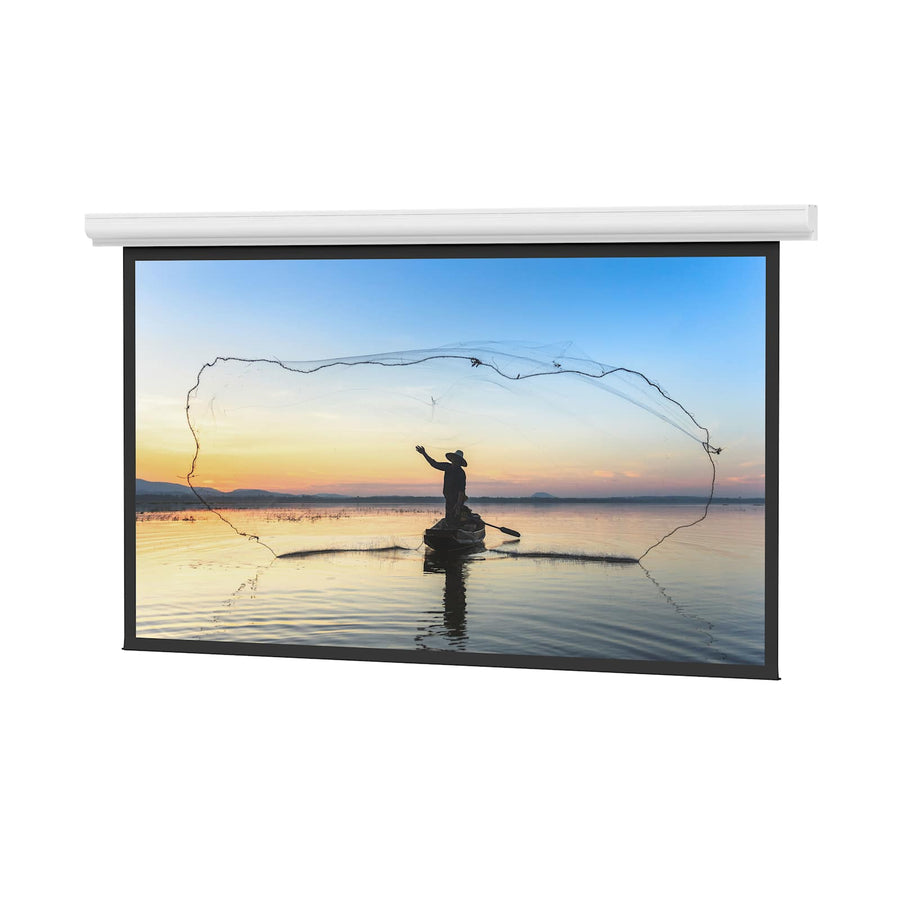

Da-Lite Designer Contour Electrol, 54" x 96" with Matte White - 14429
Electric 110" diagonal projection screen with Matte White surface and Agility Battery Motor for ceiling or wall mounting
The Da-Lite 14429 Designer Contour Electrol is an electric projection screen designed for versatile ceiling or wall mounting. This 54" x 96" (110" diagonal) model features a Matte White non-tensioned surface and a standard black backing to help retain projected brightness. It is ideal for retrofitting historic buildings or environments where running electrical wiring is difficult, as it utilizes the Agility Battery Motor (Lithium-Ion). This motor can complete over 200 cycles on a single charge via a micro-USB port. The housing is compact, measuring 4 5/8" high and 4 3/32" deep. This TAA compliant screen offers a 16:9 HDTV format and is optimized for front projection. For continuous operation, the Da-Lite 14856 PoE 5V Micro USB Adapter can be used to keep the battery charged.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Weight | 53 lbs (24 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my 16:9 display setup?
Yes, this 14429 model is configured in a 16:9 HDTV screen format, providing a 54" x 96" projection area.
What is required to charge the Agility Battery Motor?
The motor uses a micro-USB port for charging. You can use the Da-Lite 14856 PoE 5V Micro USB Adapter to maintain the charge between uses.
Can I control the screen via a mobile app?
Yes, if you add the Da-Lite 14701 WiFi Bridge accessory, you can control the screen via a mobile app and monitor battery life.
Does this screen require an electrician for installation?
Because this SKU features the Agility Battery Motor, it can be operational out of the box without the need for electrical wiring or an electrician.
What do I need for submittals and installation?
Installers can refer to the Designer Contour Installation PDF for guidance or the Designer Contour Specification Sheet for technical data.
