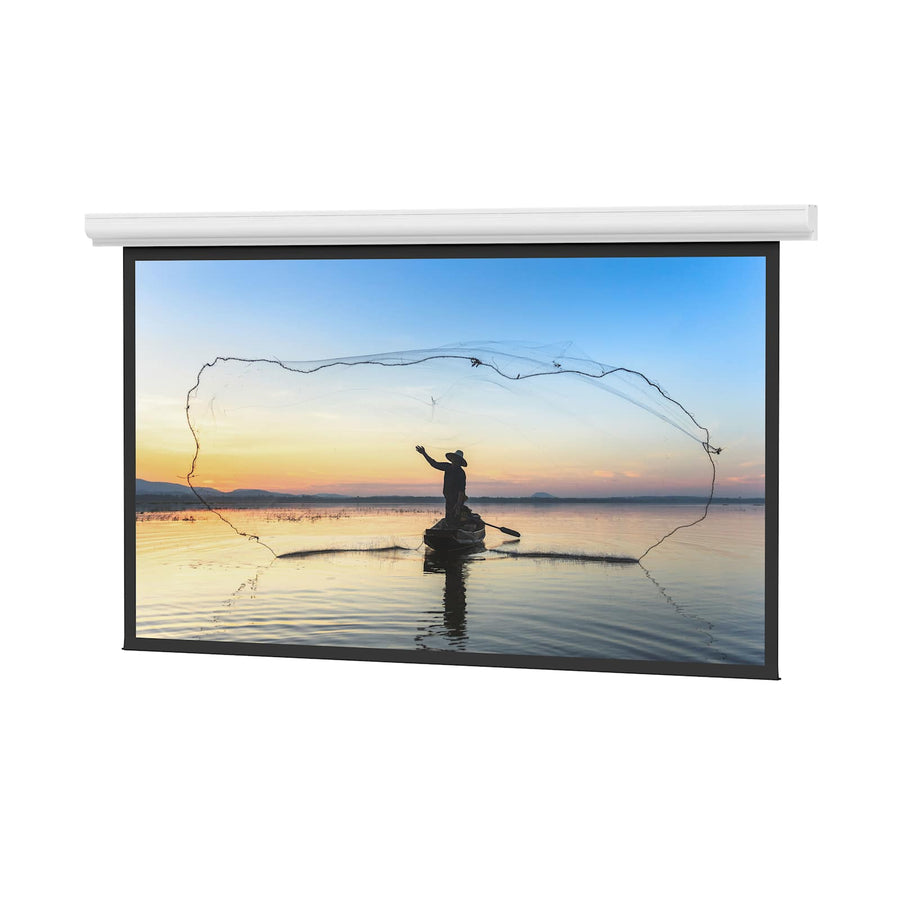

Da-Lite Designer Contour Electrol, 52" x 92" with Matte White - 89758E
Electric projection screen with 52" x 92" Matte White surface, 106" diagonal, and 220V motor for international export
The Da-Lite 89758E is a Designer Contour Electrol series electric projection screen designed for both ceiling and wall mounting. This 52" x 92" screen features a 106 in (269.2 cm) diagonal measurement and is configured for HDTV (16:9) aspect ratios using a non-tensioned Matte White surface. The unit is equipped with a 220V (50Hz) motor specifically for export markets. To maintain high projected brightness, the housing includes a standard black backing. This series features a compact profile, measuring only 4 5/8” high and 4 3/32” deep, allowing it to integrate into various room aesthetics. For installers working in historic buildings or locations where running new electrical lines is difficult, the Agility Battery Motor is available as an optional upgrade, offering up to 200 cycles on a single charge via micro-USB. The standard white powder-coated aluminum finish can be provided in black upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Dimensions | 113" x 8" x 6" (287 x 20.3 x 15.2 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 8
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068817272 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 89758E compatible with 220V power?
Yes, this specific SKU is equipped with a 220V (50Hz) motor designed for export markets.
Can I use the Agility Battery Motor with this screen?
Yes, an optional Agility Battery Motor (lithium-ion) is available for the Designer Contour series, which can be charged via a micro-USB port.
What mounting options are available for the 89758E?
This screen is designed for both ceiling and wall applications, providing flexibility for different installation environments.
Is this screen TAA compliant?
Yes, the 89758E is TAA Compliant and is of US origin.
What accessories are available for controlling the screen?
You can add a Da-Lite Single Motor Low Voltage Control System (SKU 40973E) or a Da-Lite Locking Switch Cover Plate (SKU 98837).
