Da-Lite Designer Contour Electrol, 52" x 92" with High Contrast Matte White - 14444
Electric 52" x 92" (106" diagonal) projection screen with High Contrast Matte White surface and Agility battery motor

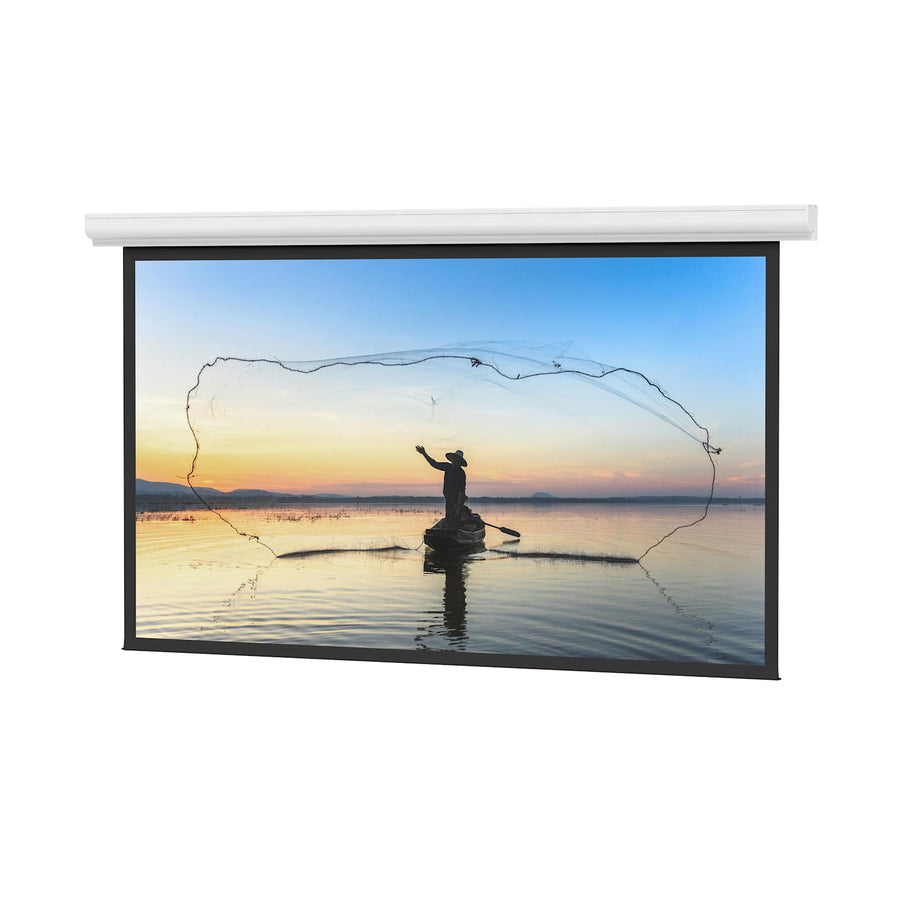

The Da-Lite 14444 is a Designer Contour Electrol series electric projection screen designed for both ceiling and wall mounting applications. This 52" x 92" unit features a High Contrast Matte White non-tensioned surface and a standard black backing to maintain projected brightness. It is powered by the Agility Battery Motor, which utilizes a Lithium-Ion system that provides over 200 cycles on a single charge via a micro-USB port. This wireless power solution is ideal for retrofitting historic buildings where running new electrical wiring is difficult or cost-prohibitive. This TAA-compliant screen is a 16:9 HDTV format and is optimized for front projection. For continuous operation, a Da-Lite 14856 PoE 5V micro-USB adapter can be used to keep the battery charged between uses, or a Da-Lite 14701 WiFi Bridge can be added to enable mobile app control and third-party device integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 14444 work for front projection?
Yes, this screen is specifically designed for front projection applications using a High Contrast Matte White surface.
How is the Agility motor powered on the 14444?
The motor uses a Lithium-Ion battery that can be recharged via a micro-USB port. You can also use the Da-Lite 14856 PoE 5V micro-USB adapter for maintenance-free, continuous operation.
Can I control this screen remotely without wiring?
Yes. The motor includes wireless handheld remote operation, and you can add a Da-Lite 14701 WiFi Bridge to allow control via a mobile app or third-party devices.
What are the mounting requirements for the Designer Contour Electrol?
This model is designed for both ceiling and wall mounting applications to suit your installation environment.
Is this screen TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
