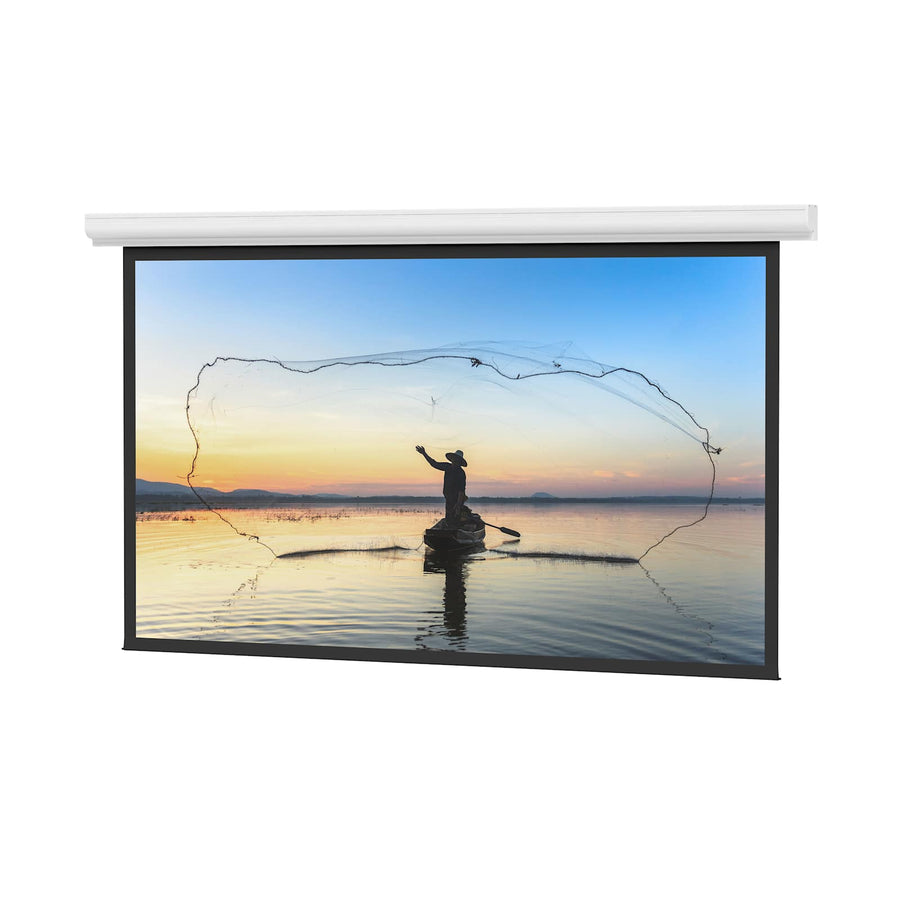

Da-Lite Designer Contour Electrol, 45" x 80" with Matte White - 89754
Electric projection screen with 45" x 80" dimensions, Matte White non-tensioned surface, and TAA compliance for ceiling or wall mounting
The Da-Lite 89754 is a Designer Contour Electrol series electric projection screen designed for both ceiling and wall mounting applications. This 45" x 80" unit provides a 92 in (233.7 cm) diagonal viewing area with a standard 16:9 HDTV screen format. The non-tensioned Matte White surface is paired with a standard black backing to help retain projected brightness during front projection use. This specific model operates on a standard 120V (60Hz) motor and features a compact housing that is only 4 5/8” high and 4 3/32” deep. For specialized environments, this series offers an Agility™ Battery Motor option for wireless operation and a variety of control accessories including a three-position Decora-style wall switch. This TAA compliant, US-made screen is built for professional environments requiring a low-profile, motorized solution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Can I use the 89754 in a historic building without new wiring?
Yes, the Designer Contour series offers an Agility™ Battery Motor option that uses a lithium-ion battery, providing over 200 cycles per charge via micro-USB.
What mounting options are available for this screen?
The 89754 is designed for both ceiling and wall applications, allowing for flexible installation depending on your room layout.
What is the screen aspect ratio and surface type?
This model features a 16:9 HDTV aspect ratio and a non-tensioned Matte White surface designed for front projection.
Does this screen support remote or smart control?
Beyond the included three-position wall switch, you can add a Da-Lite Single Motor Low Voltage Control System (SKU 40973) or a Wi-Fi bridge for mobile app control.
What is the housing depth for the 89754?
The housing for this unit is 4 3/32” deep, offering a low-profile solution for ceiling or wall installations.
