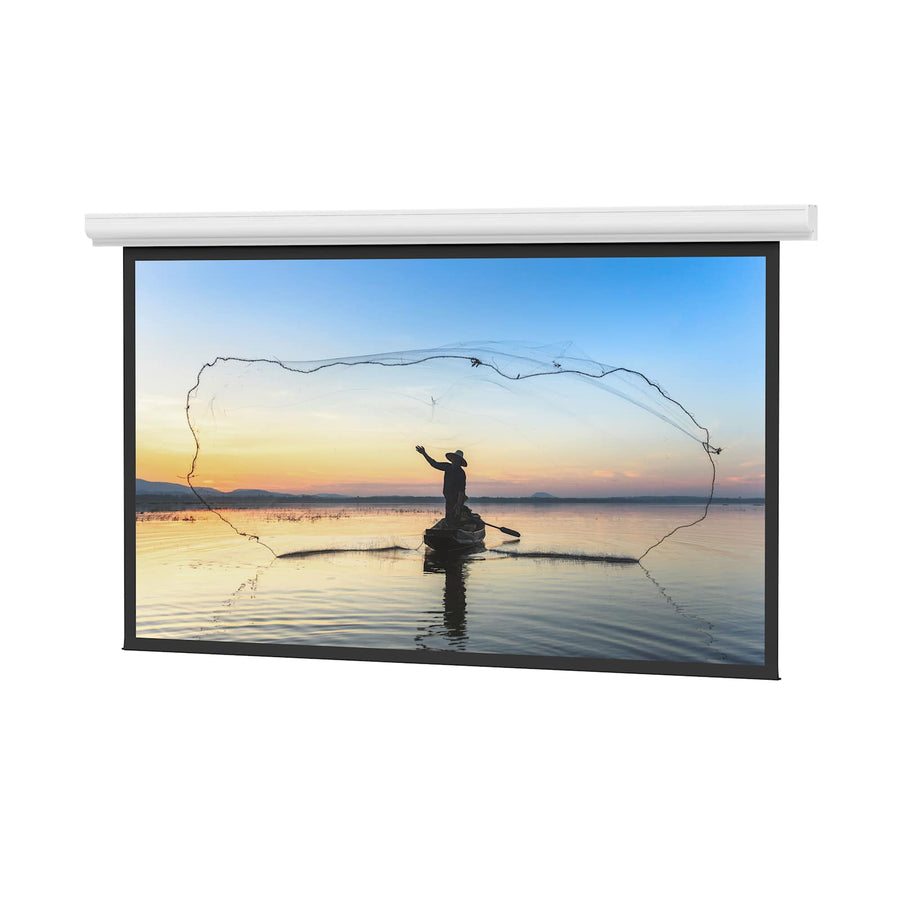

Da-Lite Designer Contour Electrol, 45" x 80" with High Contrast Matte White - 92670
Electric projection screen with 45" x 80" dimensions, High Contrast Matte White surface, and TAA compliance
The Da-Lite 92670 is a Designer Contour Electrol projection screen designed for ceiling or wall mounting in professional environments. This 45" x 80" electric screen features a High Contrast Matte White non-tensioned surface and a standard 120V (60Hz) motor. The compact housing measures 4 5/8” high and 4 3/32” deep, allowing it to integrate into a room with a minimal profile. For installations in historic buildings or sites where electrical wiring is difficult, the Agility™ Battery Motor is an available option that provides lithium-ion power for over 200 cycles per charge via a micro-USB port. This TAA-compliant model includes a standard black backing to help maintain projected brightness. For specialized control, installers can add a Decora-style three-position wall switch or utilize optional low-voltage control systems. The series also supports a Wi-Fi bridge accessory for mobile app control or third-party device integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 46 lbs (20.9 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this 92670 screen work with my projector?
This model is designed for front projection setups and features a High Contrast Matte White surface optimized for standard resolution content.
Can I install this screen without running new electrical wiring?
Yes, you can utilize the optional Agility™ Battery Motor, which is a lithium-ion powered option that requires no hardwiring.
What control options are available for the Designer Contour Electrol?
The screen comes with a Decora-style, three-position wall switch and supports optional low-voltage control or a Wi-Fi bridge for mobile app operation.
What accessories are compatible with the 92670?
Compatible accessories include the Da-Lite 98837 Locking Switch Cover Plate and the 40973 Single Motor Low Voltage Control System.
Where can I find the installation instructions for the 92670?
Detailed installation and connection guides are available in the Designer Contour Installation PDF found in the Resources tab.
