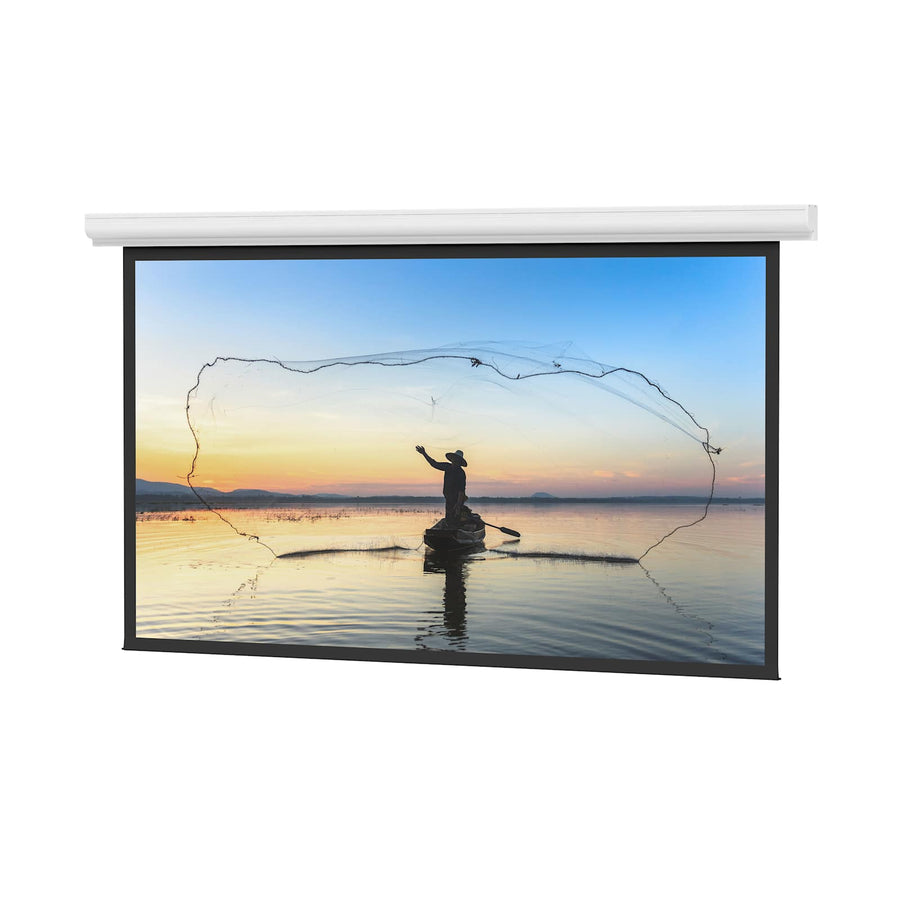

Da-Lite Designer Contour Electrol, 37.5" x 67" with Matte White - 97962
Electric projection screen for ceiling or wall mounting, 37.5" x 67" dimensions with Matte White surface
The Da-Lite 97962 Designer Contour Electrol is a versatile electric projection screen designed for ceiling or wall installation. This 37.5" x 67" (77" diagonal) unit features a non-tensioned Matte White surface and is optimized for front projection in a 16:9 HDTV format. The housing is compact, measuring 4 5/8" high and 4 3/32" deep, helping it maintain a low profile in the room. This SKU includes a standard 120V (60Hz) motor. For installers working in historic buildings or locations where running new electrical lines is difficult, an optional Agility Battery Motor is available to provide wireless operation via a lithium-ion battery. The screen is built with a standard black backing to help retain projected brightness and is TAA compliant for federally regulated projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 77 in (195.6 cm) |
| Screen Height | 37.5 in (95.3 cm) |
| Shipping Weight | 36 lbs (16.3 kg) |
| Size | 37.5" x 67" or 77" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Can I use the Agility Battery Motor with this screen?
Yes, the Designer Contour Electrol series supports the optional Agility Battery Motor, which uses a lithium-ion battery providing over 200 cycles per charge via micro-USB.
What electrical requirements are needed for the 97962?
This specific SKU comes with a standard 120V (60Hz) motor. For low-voltage control, you can add the Da-Lite Single Motor Low Voltage Control System 120 Volt (part 40973).
Is this screen suitable for ceiling or wall mounting?
The 97962 is designed for both ceiling and wall applications, allowing for flexible installation depending on your room's layout.
Does this screen support wireless control?
While this SKU uses a standard motor, you can add a Wi-Fi bridge accessory to enable control through a mobile app or a third-party device.
What mounting accessories are available for this screen?
You can add a Da-Lite Locking Switch Cover Plate (98837) or various replacement wall switches, including a stainless steel option (92055) or a standard white option (80575).
