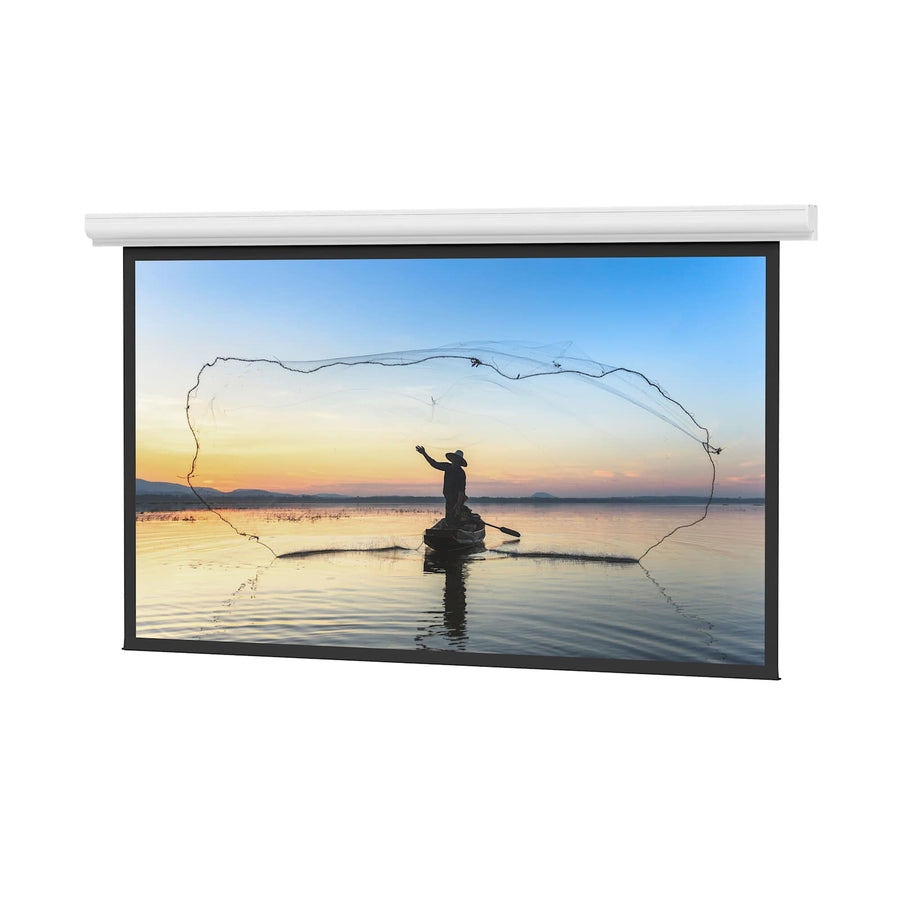

Da-Lite Designer Contour Electrol, 37.5" x 67" with High Contrast Matte White - 97963E
Electric projection screen with High Contrast Matte White surface, 37.5" x 67" dimensions, and TAA compliance
The Da-Lite 97963E is a Designer Contour Electrol series electric projection screen designed for both ceiling and wall applications. This specific model features a 37.5" x 67" screen area, providing a 77 in (195.6 cm) diagonal viewing area with a 16:9 HDTV aspect ratio. The screen uses a non-tensioned High Contrast Matte White surface paired with a standard black backing to help retain projected brightness. This unit is equipped with a 220V (50Hz) motor intended for export markets. For installers looking for flexibility in historic buildings or locations where hardwiring is difficult, the Agility Battery Motor is an available option. This lithium-ion battery motor can provide over 200 cycles on a single charge via a micro-USB port. This TAA compliant screen also supports optional low-voltage control and can be integrated with a Wi-Fi bridge accessory for mobile app or third-party device control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 77 in (195.6 cm) |
| Screen Height | 37.5 in (95.3 cm) |
| Shipping Dimensions | 94" x 8" x 6" (238.8 x 20.3 x 15.2 cm) |
| Shipping Weight | 36 lbs (16.3 kg) |
| Size | 37.5" x 67" or 77" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 8
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068078734 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 97963E TAA compliant?
Yes, this model is TAA compliant, making it suitable for projects requiring compliance with the Trade Agreements Act.
What motor voltage does the 97963E use?
This specific SKU is configured with a 220V (50Hz) motor intended for export use.
Can I use the Agility Battery Motor with this screen?
Yes, the Agility Battery Motor is an option for the Designer Contour Electrol series, allowing for wireless, lithium-ion powered operation with over 200 cycles per charge.
What is the difference between the standard and Agility motor options?
While this 97963E includes a 220V motor, the Agility option provides a lithium-ion battery that can be charged via micro-USB and controlled with a handheld remote.
Does this screen support mobile app control?
Yes, by using a Wi-Fi bridge accessory, you can control the screen via a mobile app or a third-party device.
