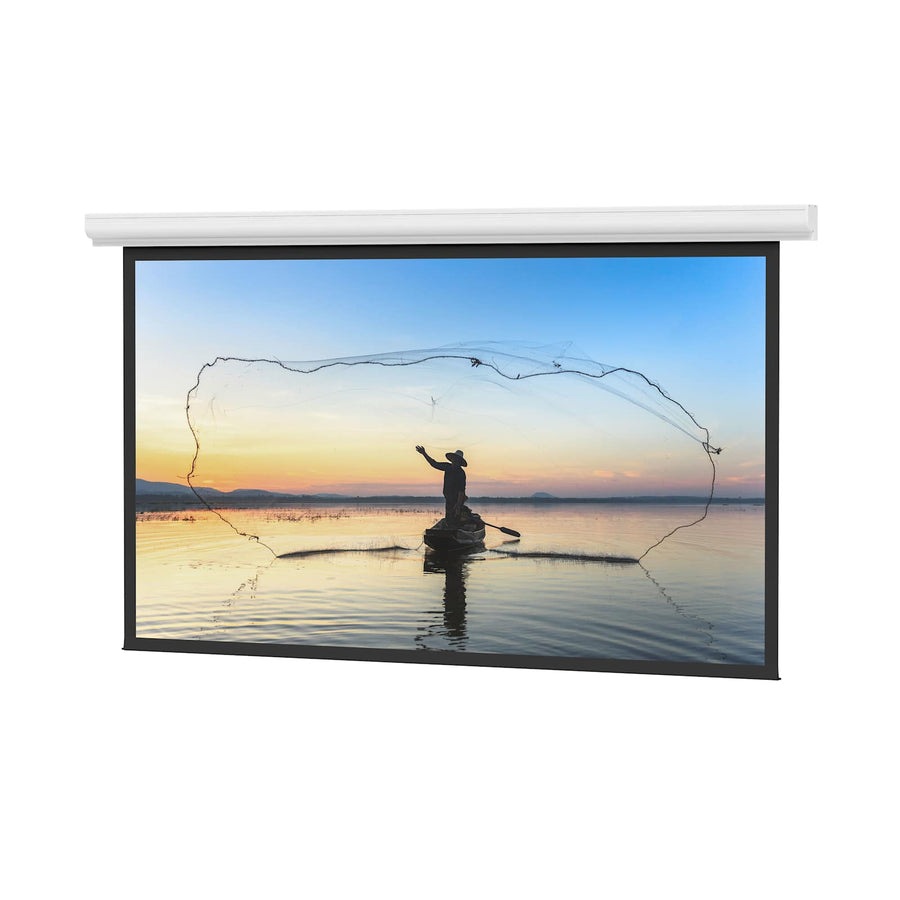

Da-Lite Designer Contour Electrol, 37.5" x 67" with High Contrast Matte White - 97963
Electric projection screen for ceiling or wall mounting, 37.5" x 67" size, featuring High Contrast Matte White surface
The Da-Lite Designer Contour Electrol 97963 is an electric projection screen designed for ceiling or wall applications. This 77 inch (195.6 cm) diagonal screen features a 37.5 in (95.3 cm) height and a 16:9 HDTV screen format. It is equipped with a standard 120V (60Hz) motor and a High Contrast Matte White non-tensioned surface. To maximize projected brightness, the unit includes standard black backing. This TAA compliant series is characterized by a compact housing profile of 4 5/8” high by 4 3/32” deep. For installation, users can utilize a Decora-style, three-position wall switch. This model provides a versatile front projection solution for professional environments requiring a white powder-coated aluminum finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 77 in (195.6 cm) |
| Screen Height | 37.5 in (95.3 cm) |
| Shipping Weight | 36 lbs (16.3 kg) |
| Size | 37.5" x 67" or 77" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 97963 work with front projection setups?
Yes, this model is specifically designed for front projection with a High Contrast Matte White surface.
Can I mount this screen on a wall or the ceiling?
The 97963 is designed for both wall and ceiling applications depending on the installation environment.
What controls are used with this electric screen?
It features a Decora-style, three-position wall switch and supports optional low-voltage control or Agility Battery Motor upgrades.
Is the Da-Lite 97963 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What is the difference between the standard motor and the Agility option?
The 97963 comes with a standard 120V motor, but an Agility lithium-ion battery motor is available as an option for wireless operation.
