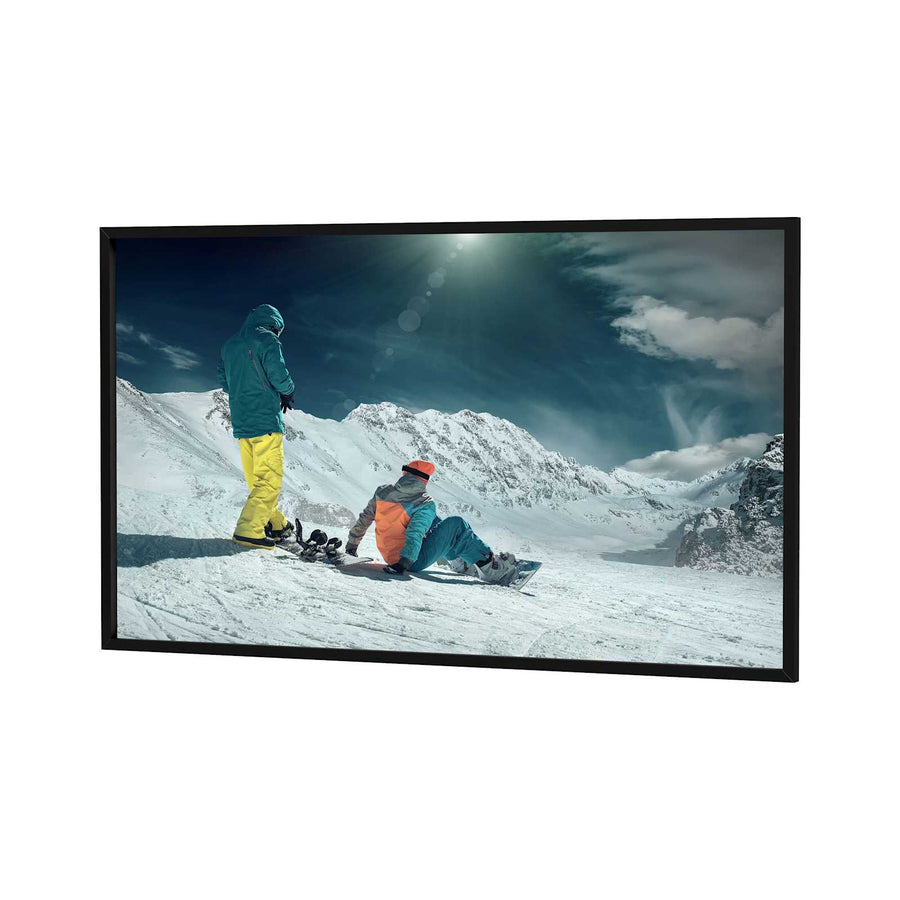

Da-Lite Da-Snap, 45" x 80" with HD Progressive ReView 0.9 - 83422V
Fixed frame rear projection screen, 45" x 80" (92" diagonal), featuring HD Progressive ReView 0.9 surface and Pro-Trim frame finish
The Da-Lite 83422V is a Da-Snap series fixed frame screen designed for rear projection applications. This specific model features an HD Progressive ReView 0.9 surface and a Pro-Trim frame finish, which is engineered to absorb light surrounding the viewing area to maintain high contrast. The 45" x 80" (92" diagonal) screen is built with a square aluminum tubing frame. This series offers significant installation versatility, as the frame can be mounted directly onto a wall or installed within a wall opening. While this model is configured for rear projection, the Da-Snap series is capable of supporting both front or rear projection surfaces using either snaps or optional Velcro. For those requiring specialized dimensions, the Da-Snap series offers custom sizing options beyond this standard 92" diagonal configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Dimensions | 91" x 8" x 9" (231.1 x 20.3 x 22.9 cm) |
| Shipping Weight | 26 lbs (11.8 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
All other specifications 9
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Options | Pro-Trim |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068540316 |
| Certifications | TAA |
Resources
Questions about this part
What are the dimensions of the 83422V screen?
The screen has a 45" x 80" surface area, which equates to a 92" (233.7 cm) diagonal measurement.
Can I mount the Da-Snap 83422V in a recessed opening?
Yes, the Da-Snap series is designed for versatile mounting, allowing for installation either on a wall or within a wall opening.
Does this screen include the Pro-Trim finish?
Yes, this SKU is specified with the Pro-Trim frame finish, which is designed to absorb light around the viewing area.
Is the 83422V TAA compliant?
Yes, this product is TAA compliant and is of US origin for Federal Ops.
What documentation is available for submittals?
You can access the Da-Snap Specification Sheet, the Product Information Sheet, or the 3-Part CSI Specifications for project submittals.
