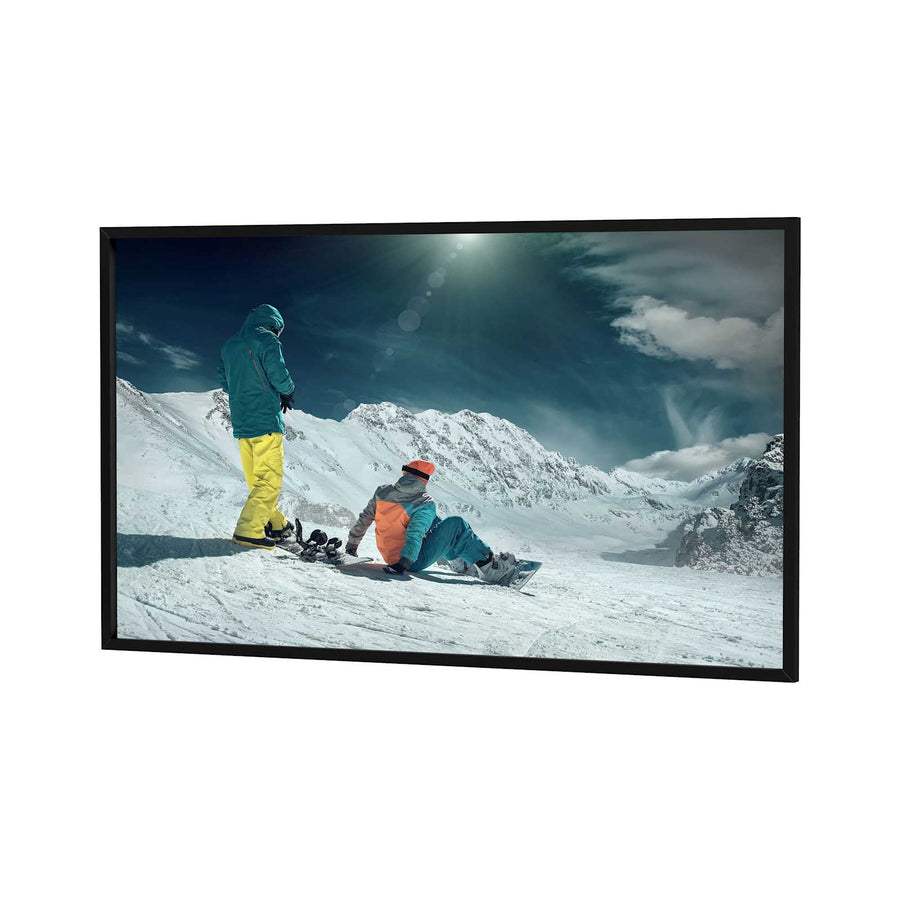

Da-Lite Da-Snap, 40.5" x 72" with Da-Tex - 96509
Fixed frame rear projection screen, 40.5" x 72" (82" diagonal) with Da-Tex surface
The Da-Lite 96509 is a 40.5" x 72" (82" diagonal) fixed frame screen featuring a Da-Tex surface designed for rear projection. This series provides versatile installation options, allowing for mounting directly on a wall or within a wall opening. The frame is constructed from square aluminum tubing and comes with a standard black finish. The Da-Tex surface is specifically configured for rear projection applications. This TAA compliant screen is suitable for HDTV 16:9 formats and offers standard resolution performance. For installers requiring specific light absorption, the frame is also available with a Pro-Trim finish to reduce ambient light around the viewing area.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 82 in (208.3 cm) |
| Screen Height | 40.5 in (102.9 cm) |
| Shipping Weight | 26 lbs (11.8 kg) |
| Size | 40.5" x 72" or 82" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Black (standard) |
| Projection Type | Rear Projection |
All other specifications 5
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Fixed Frame |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
Questions about this part
Can the Da-Snap 96509 be used for front projection?
The Da-Tex surface in this SKU is configured for rear projection. However, the Da-Snap series offers front projection surfaces as well, which feature black backing to help retain projected brightness.
What are the mounting options for this Da-Lite screen?
The 96509 can be installed as a wall-mounted unit or integrated into a wall opening for a more recessed look.
Is this screen suitable for 16:9 displays?
Yes, this fixed frame screen is designed in a 16:9 HDTV format.
What is the frame finish for the 96509?
This model comes with a standard black frame finish.
What documentation is available for submittals?
Installers can refer to the Da-Snap Specification Sheet or the Da-Snap Product Information Sheet for detailed submittal data.
