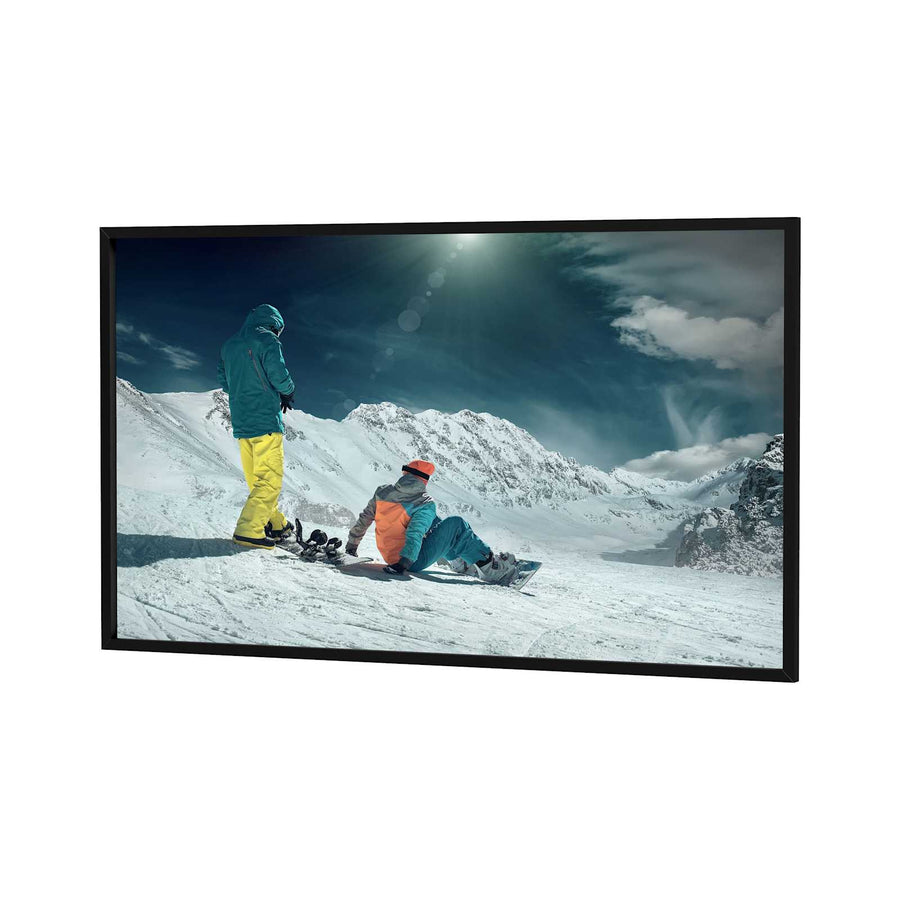

Da-Lite Da-Snap, 120" x 192" with Da-Tex - 70389V
Fixed frame rear projection screen with Da-Tex surface, 120" x 192" dimensions, and Pro-Trim frame finish
The Da-Lite 70389V is a fixed frame rear projection screen from the Da-Snap series, featuring a 120" x 192" (304.8 x 487.6 mm) dimension and a 226" (574 cm) diagonal. This unit is configured with a Da-Tex surface designed for rear projection in a wide 16:10 screen format. The frame utilizes square aluminum tubing and is finished with Pro-Trim to absorb ambient light surrounding the viewing area. Designed for versatile installation, this Da-Snap screen can be mounted directly to a wall or installed within a wall opening. The frame assembly allows for customization, including options for curved frames or wrap-around surfaces. This specific SKU is TAA compliant and manufactured in the US. For submittals, installers can refer to the Da-Snap Specification Sheet or the Da-Snap Product Information Sheet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 131" x 10" x 12" (332.7 x 25.4 x 30.5 cm) |
| Shipping Weight | 82 lbs (37.2 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Frame Type | Pro-Trim |
All other specifications 9
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Options | Pro-Trim |
| Screen Surface Features | Standard Resolution |
| Screen Type | Fixed Frame |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068817821 |
| Certifications | TAA |
Resources
Questions about this part
Will the Da-Lite 70389V fit my wall opening?
The 70389V is designed for wall mounting and is compatible with both direct wall installation or placement within a specific wall opening.
What type of projection does this screen support?
This model uses a Da-Tex surface specifically designed for rear projection applications.
What is the difference between the Pro-Trim frame and standard frames?
The Pro-Trim finish on this frame is engineered to absorb light surrounding the viewing area to improve image contrast.
Is this screen TAA compliant for government contracts?
Yes, the Da-Lite 70389V is TAA compliant and is manufactured in the US.
Which documents are available for project submittals?
Installers can access the Da-Snap Specification Sheet, the Da-Snap Product Information Sheet, or the Da-Snap Instructions PDF for installation details.
