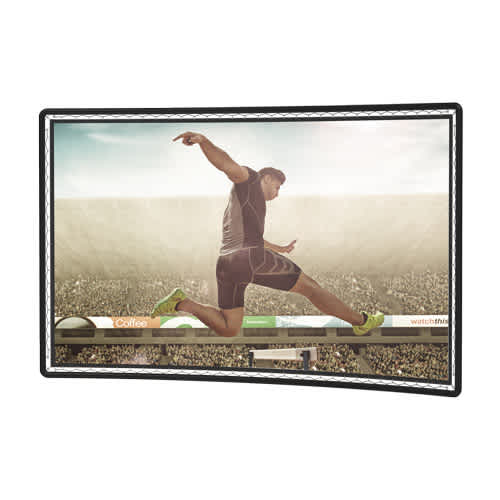

Da-Lite Curved Series 300 Lace and Grommet Frame
Curved fixed frame for large venue projection, supports single-axis curves up to 30' wide
The Da-Lite Curved Series 300 Lace and Grommet Frame (SKU: 99463) is a fixed frame designed for large venue environments. It is engineered for front and rear projection, making it a viable solution for digital edge blending and simulation applications. The structure is built using 3” diameter aluminum tubing and features reinforced corners for stability. This frame is designed for ceiling application. It can be specified to any degree of single-axis curve, provided the maximum width does not exceed 30’. To facilitate installation, the frame includes lacing cord and positioned “S” hooks required for attaching a Da-Lite Lace and Grommet projection screen surface. For professional installations where light absorption is necessary, an optional black velour cover can be added to conceal the screen binding and lacing cord while absorbing ambient light around the viewing area.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Application | Ceiling |
| Screen Type | Fixed Frame |
| Special Features | Large Venue |
Resources
You'll need these with it

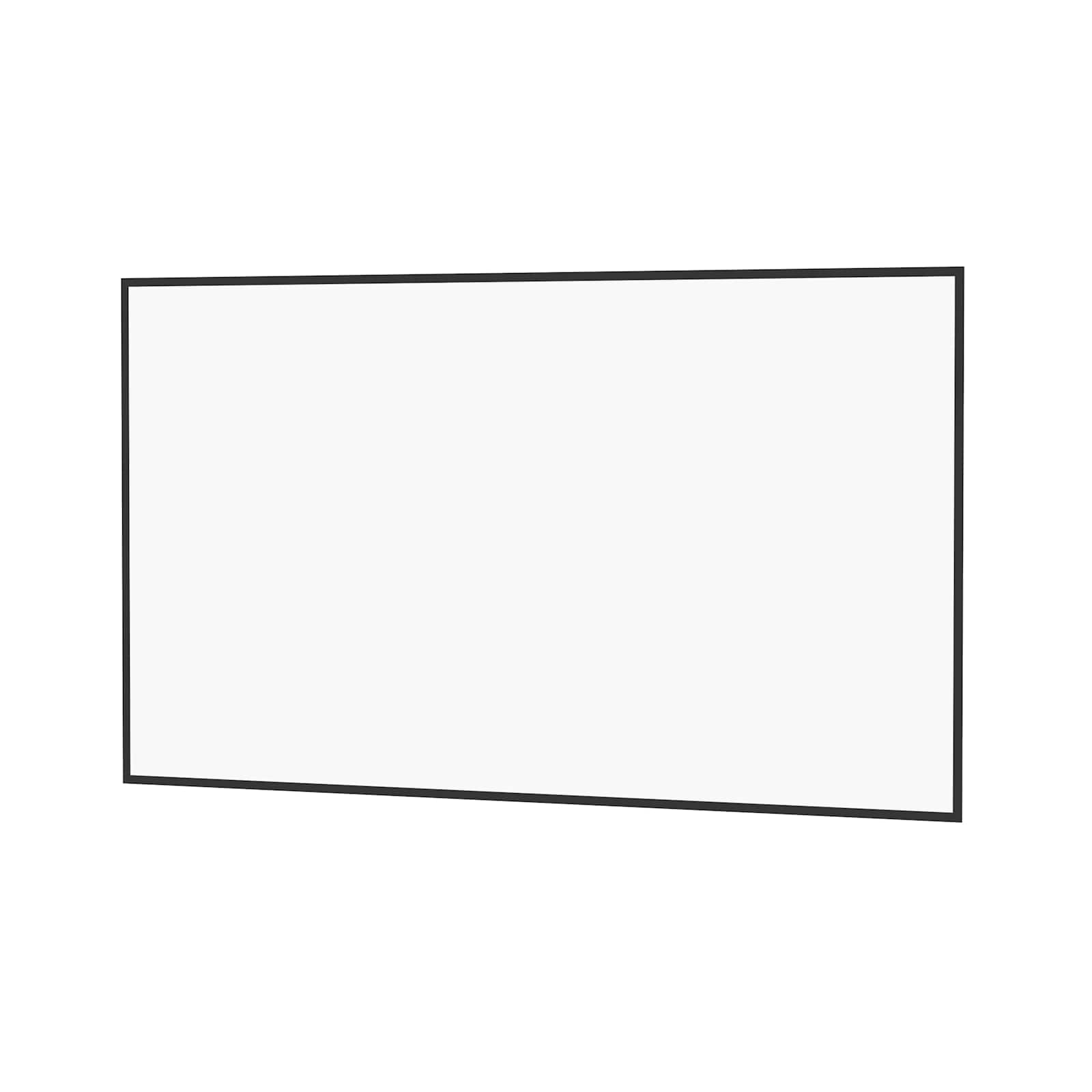

Da-Lite Lace and Grommet Screen Surfaces, with Parallax Stratos 1.0
29993
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 1.1 Contrast Black Backed
36436
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 1.0 Perf
20444
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive ReView 0.9
81326
Da-Lite Lace and Grommet Screen Surfaces, with HD Rental Foldable Black Backed
29998
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 1.3
24259
Da-Lite Lace and Grommet Screen Surfaces, with Da-Tex
29994
Da-Lite Lace and Grommet Screen Surfaces, with Da-Mat
40397
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 1.0
29997
Da-Lite Lace and Grommet Screen Surfaces, with Da-Mat Black Backed
36431
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 0.9
29996Discontinued
Da-Lite Lace and Grommet Screen Surfaces, with HD Progressive 0.6
29995Discontinued
Questions about this part
What type of surfaces work with the 99463 frame?
This frame is designed specifically for Da-Lite Lace and Grommet projection screen surfaces, such as Parallax Stratos 1.0, HD Progressive 1.0, or Da-Tex.
Can this frame be used for edge blending applications?
Yes, this curved frame is designed for use in digital edge blending and simulation applications in large venue settings.
What is the maximum width for a curved specification?
The frame can be specified to any degree of single-axis curve with a maximum width of 30'.
How do I attach the projection surface to the frame?
The frame comes equipped with positioned “S” hooks and lacing cord to secure the Lace and Grommet screen surface.
Is there an option to hide the lacing cord?
An optional black velour cover is available to conceal the lacing cord and screen binding while helping to absorb light in the viewing area.
