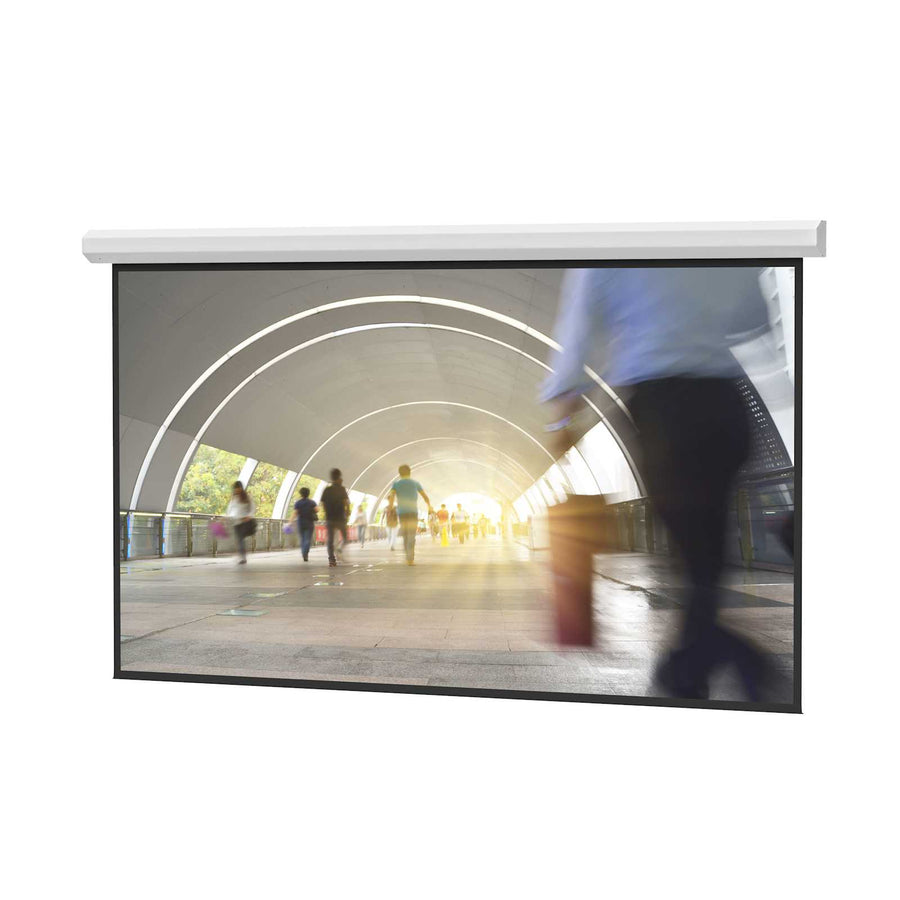

Da-Lite Cosmopolitan Series, 144" x 144" with Matte White - 40823E
Square 144" x 144" electric projection screen for large venue front projection, featuring a Matte White surface and 220V export motor
The Da-Lite Cosmopolitan Series 40823E is an electric, square-format projection screen designed for large venue applications. This 144" x 144" (365.8 x 365.8 cm) screen features a non-tensioned Matte White surface, engineered for front projection. This specific model is configured with a 220V (50Hz) motor designed for export markets. For installation, this series utilizes a two-piece aluminum case with mounting brackets to accommodate wall or ceiling mounting for screens with a diagonal of 188" and over. To maintain high image contrast, the housing includes a standard black backing that retains projected brightness on the front surface. The unit includes a Decora-style, three-position wall switch for manual control. This TAA compliant product is manufactured in the US and is part of the Cosmopolitan Series, which is scheduled for discontinuation on 10/30/26; the suggested alternative for new projects is the Myriad Reveal series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 204 in (518.2 cm) |
| Screen Height | 144 in (365.8 cm) |
| Screen Width | 144 in (365.8 cm) |
| Shipping Dimensions | 163" x 14" x 20" (414 x 35.6 x 50.8 cm) |
| Shipping Weight | 324 lbs (147 kg) |
| Size | 144" x 144" |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068255067 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 40823E suitable for front projection?
Yes, this Cosmopolitan Series screen is designed specifically for front projection using a Matte White surface.
Can I mount this 40823E screen on a ceiling or a wall?
This model features a two-piece aluminum case with mounting brackets that allows for both wall and ceiling installation.
What is the motor voltage for this specific SKU?
The 40823E is equipped with a 220V (50Hz) motor intended for export use.
What accessories are compatible with the Cosmopolitan 40823E?
You can add a Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) or a Da-Lite Locking Switch Cover Plate (98837).
Does this screen include a wall switch for operation?
The screen comes with a Decora-style, three-position wall switch for controlling the electric motor.
