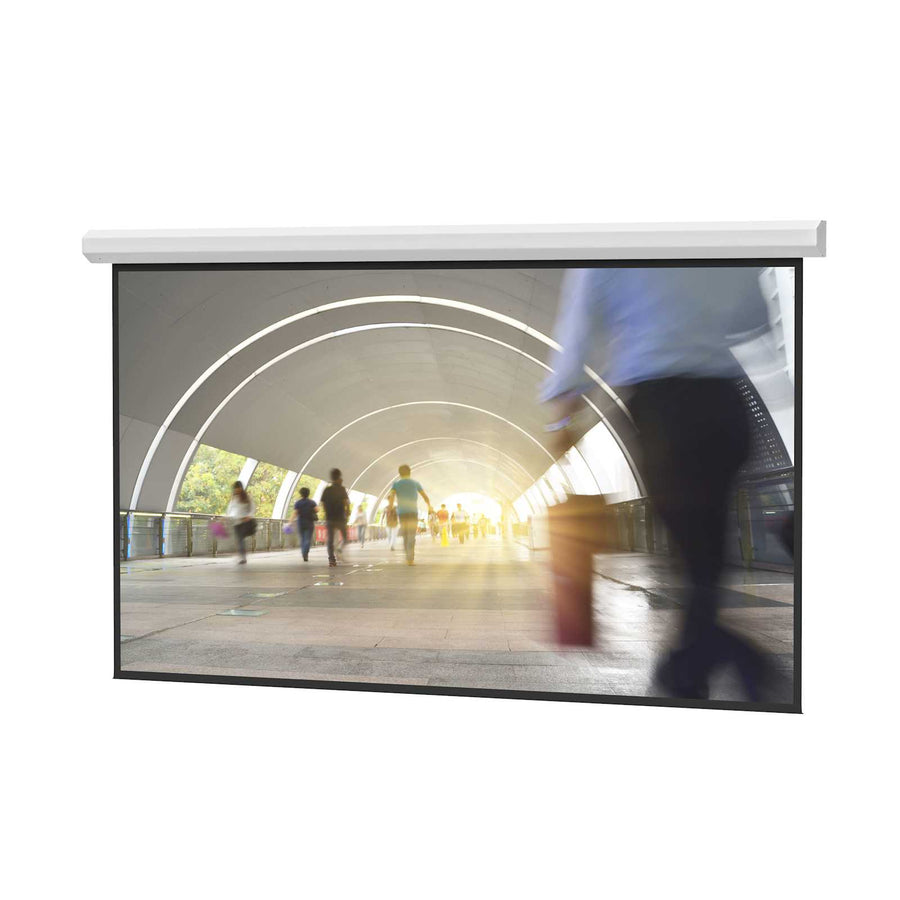

Da-Lite Cosmopolitan Series, 110" x 176" with Matte White - 70281E
Electric Cosmopolitan series projection screen, 110" x 176" wide format with matte white surface and 220V export motor
The Da-Lite 70281E is a large venue electric projection screen measuring 110" x 176", providing a 208" diagonal viewing area. Featuring a matte white non-tensioned surface and a 16:10 wide screen format, this unit is designed for front projection applications. This specific model is equipped with a 220V (50Hz) motor intended for export markets. The Cosmopolitan series housing is a two-piece aluminum case specifically designed for wall or ceiling mount installation on screens with a diagonal of 188" or larger. For installation, this model includes mounting brackets to facilitate secure placement. The unit features a standard black backing to help retain projected brightness on the matte white surface. This product is TAA compliant and is manufactured in the US. Please note that this SKU is scheduled for discontinuation on 10/30/26; its direct replacement options include DL100208EL or DL100201EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Dimensions | 198" x 13" x 20" (502.9 x 33 x 50.8 cm) |
| Shipping Weight | 435 lbs (197.3 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
All other specifications 10
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068814967 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What are the dimensions and size for the 70281E?
The 70281E features a screen height of 110" (279.4 cm), a width of 176" (447 cm), and a 208" (528.3 cm) diagonal.
Is the 70281E suitable for ceiling or wall mounting?
Yes, this Cosmopolitan series screen is designed for both ceiling and wall applications using the included aluminum mounting brackets.
What motor voltage is required for this screen?
This model is built with a 220V (50Hz) motor specifically for export use.
What is the difference between this and the Myriad Reveal series?
The Cosmopolitan series is a standard electric screen, whereas the Myriad Reveal series offers modern aesthetic upgrades such as the SightLine Cable Drop.
Which documents are available for submittals and installation?
You can access the Cosmopolitan Series Specification Sheet, the Installation Manual, and BIM/CAD models via the Resources tab.
