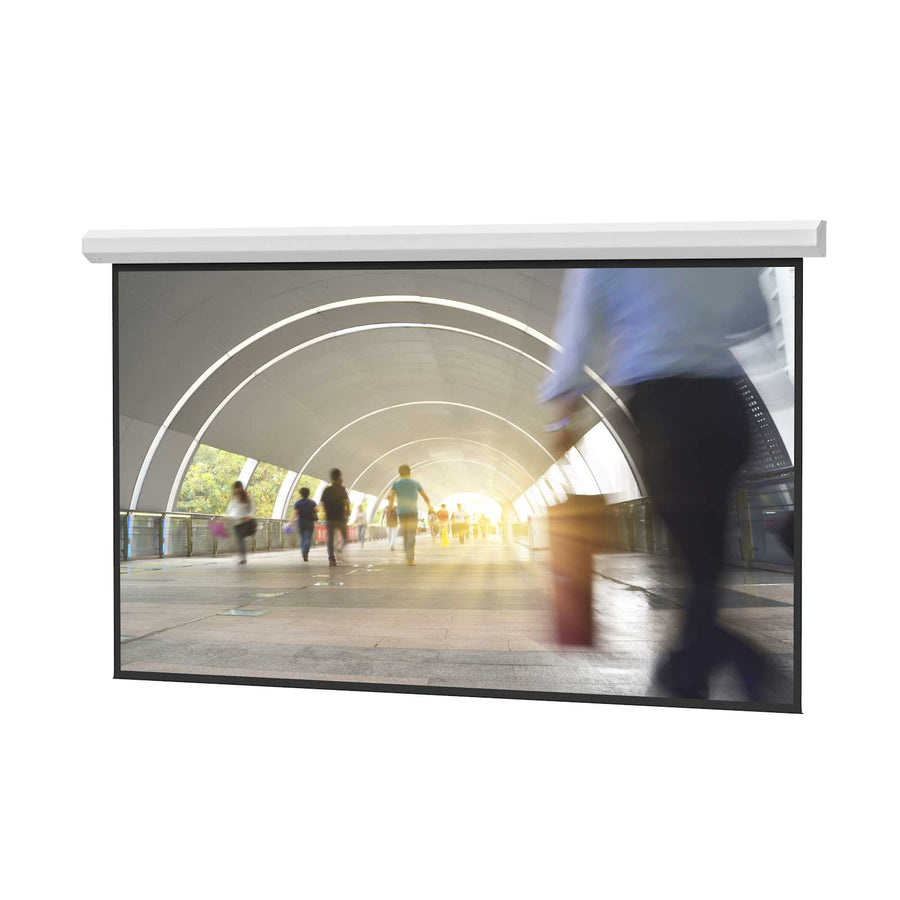

Da-Lite Cosmopolitan Series, 110" x 176" with Matte White - 70281
Large venue electric projection screen, 110" x 176" dimensions, with a Matte White non-tensioned surface for front projection
The Da-Lite 70281 is a large venue electric projection screen from the Cosmopolitan Series, featuring a 110" x 176" screen size and a 208 in (528.3 cm) diagonal. This screen uses a non-tensioned Matte White surface designed for front projection applications. It is configured with a standard 120V (60Hz) motor and is built with a two-piece aluminum case that utilizes mounting brackets for both wall and ceiling installation. This specific configuration is optimized for wide 16:10 aspect ratio formats. The housing features a standard white powder-coated finish and includes a standard black backing to help retain projected brightness on the front surface. This model is TAA compliant and is manufactured in the US. Please note that this product is scheduled to be discontinued on 10/30/26, with direct replacement options being the DL100208L or DL100201L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 198" x 13" x 20" (5029.2 x 330.2 x 508 mm) |
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Screen Width | 176 in (447 cm) |
| Shipping Weight | 435 lbs (197.3 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
All other specifications 8
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 70281 suitable for my installation space?
This screen is designed for large venue applications and can be mounted on either the ceiling or a wall. It utilizes a two-piece aluminum case with dedicated mounting brackets for these installation types.
What is the aspect ratio for this Cosmopolitan Series screen?
The 70281 is configured with a Wide 16:10 screen format, making it suitable for modern digital projection requirements.
Can I control the motor using low voltage?
Yes, you can add a Da-Lite Single Motor Low Voltage Control System 120 Volt (part number 40973) to manage the motor operation.
What replacement model should I use after 2026?
As this model is slated for discontinuation on 10/30/26, Legrand recommends the DL100208L or DL100201L as direct replacement options.
Does this screen come with a wall switch?
It includes a Decora-style, three-position wall switch. Additional options include the Da-Lite Replacement Wall Switch in Stainless Steel (92055) or White (80575).
