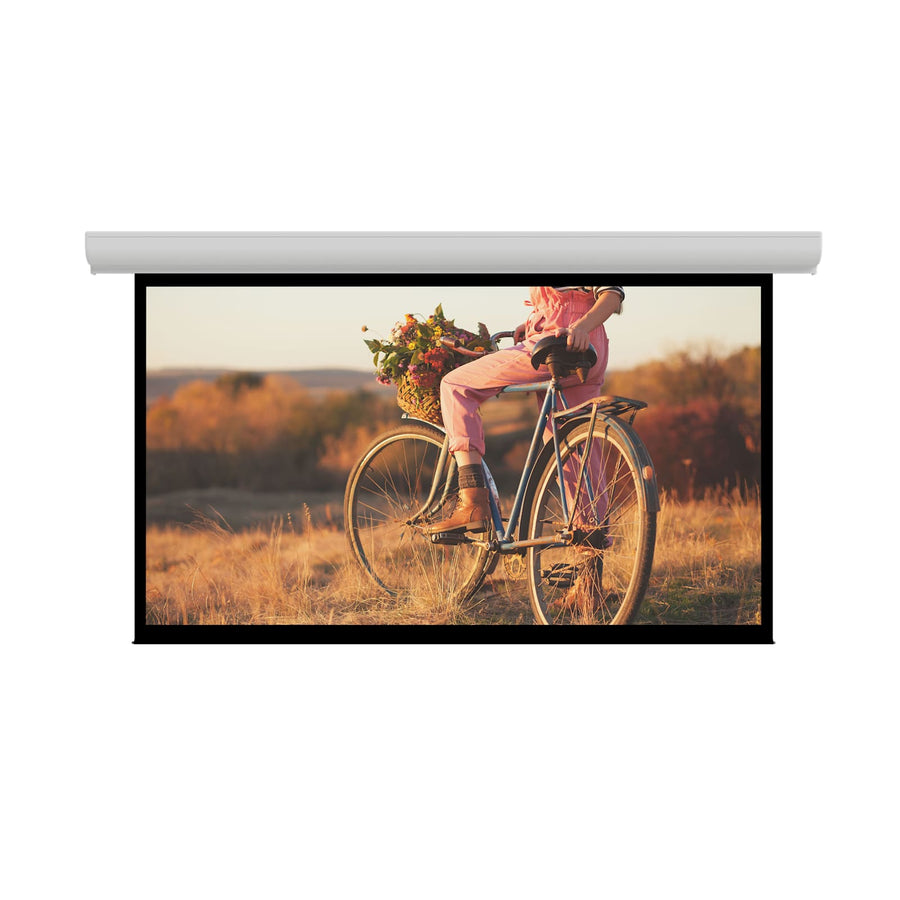

Da-Lite Contour Electrol, 90" x 160" with Matte White - 35168L
Electric projection screen with 90" x 160" matte white surface, 184" diagonal, and standard low voltage control
The Da-Lite 35168L is a Contour Electrol series electric projection screen designed for both ceiling and wall mounting. This 90" x 160" (184" diagonal) screen features a non-tensioned matte white surface specifically optimized for front projection in 16:9 HDTV formats. To maintain high image brightness, the unit utilizes a standard black backing. It is powered by a standard 120V (60Hz) motor and includes a silent drive system suitable for sizes up to 10’x10’. This model is TAA compliant and is manufactured in the US. For control, the screen features standard low voltage control (LVC) and a dry contact interface, which includes a Decora-style, three-button wall switch with control connections located on the back. Additionally, the unit supports a 5-12V projector trigger for automated deployment. This specific SKU is a non-tensioned model; for applications requiring a Tensioned Contour Electrol system, please refer to the tensioned series variants.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Dimensions | 182" x 13" x 10" (462.3 x 33 x 25.4 cm) |
| Shipping Weight | 125 lbs (56.7 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | CeilingWall |
| Built-In Control | Standard Low Voltage Control |
| Federal Ops Country of Origin | US |
All other specifications 9
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068036567 |
| Certifications | TAA |
Resources
Questions about this part
Will this screen work with my existing projector trigger?
Yes, this screen supports a 5-12V projector trigger to automate screen deployment when the projector is turned on.
What is the difference between this and the Tensioned Contour Electrol?
The 35168L is a non-tensioned screen. If your installation requires a Tensioned Contour Electrol system, you should select that specific series instead.
Does this screen include a wall switch for control?
Yes, it features a Decora-style, three-button wall switch with control connections located on the back of the unit.
Can this screen be mounted on a ceiling?
Yes, the Contour Electrol is designed for both ceiling and wall applications.
What documentation is available for submittals?
You can access the Contour Electrol Product Information Sheet, CAD files, and the Contour Electrol Instructions PDF for technical submittals.
