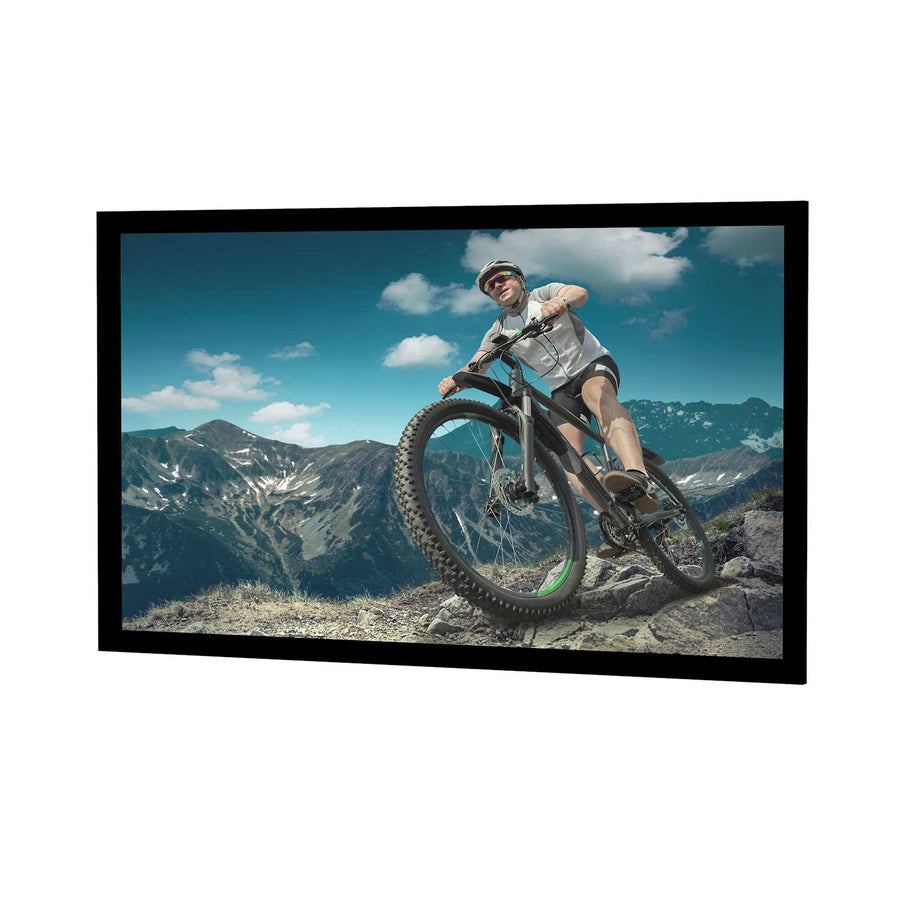

Da-Lite Cinema Contour, 65" x 116" with Da-Tex
Fixed frame rear projection screen, 65" x 116" (133" diagonal) with Da-Tex surface and Pro-Trim finish
The Da-Lite 87172V is a Cinema Contour series fixed frame screen designed for rear projection applications. This 65" x 116" (133" diagonal) screen features a Da-Tex surface, which provides a perfectly flat viewing area for high-quality imaging. The frame is constructed with a 45-degree angle-cut design and includes a Pro-Trim finish intended to absorb ambient light surrounding the viewing area. To maximize brightness, the screen utilizes a standard black backing. This series is engineered with a substantial frame that provides a clear visual reference for the viewer, enhancing overall contrast. The surface is mounted onto an aluminum frame with the option for masking or a cropping border. This specific model is TAA compliant and is designed for wall applications to support high-definition content reproduction.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 130" x 8" x 9" (330.2 x 20.3 x 22.9 cm) |
| Shipping Weight | 47 lbs (21.3 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | Pro-Trim Standard |
All other specifications 9
| Frame Type | Pro-Trim |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Fixed Frame |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068666955 |
| Certifications | TAA |
Resources
Questions about this part
Yes, this Cinema Contour model is specifically configured for rear projection using the Da-Tex surface.
Yes, this Cinema Contour model is specifically configured for rear projection using the Da-Tex surface.
What are the dimensions of the 87172V screen?
The screen has a height of 65" (165.1 cm) and a width of 116" (294.6 cm), resulting in a 133" (337.8 cm) diagonal.
What is the purpose of the Pro-Trim finish on this model?
The Pro-Trim finish is applied to the frame to help absorb light around the viewing area, which helps to enhance the contrast of the projected image.
Does this screen meet TAA requirements?
Yes, the 87172V is TAA compliant, making it suitable for projects with specific federal acquisition regulations.
Which documents are available for installation and submittals?
Installers can access the Cinema Contour Installation PDF, the Cinema Contour Specification Sheet, and the Cinema Contour Series Parts List for technical planning.
