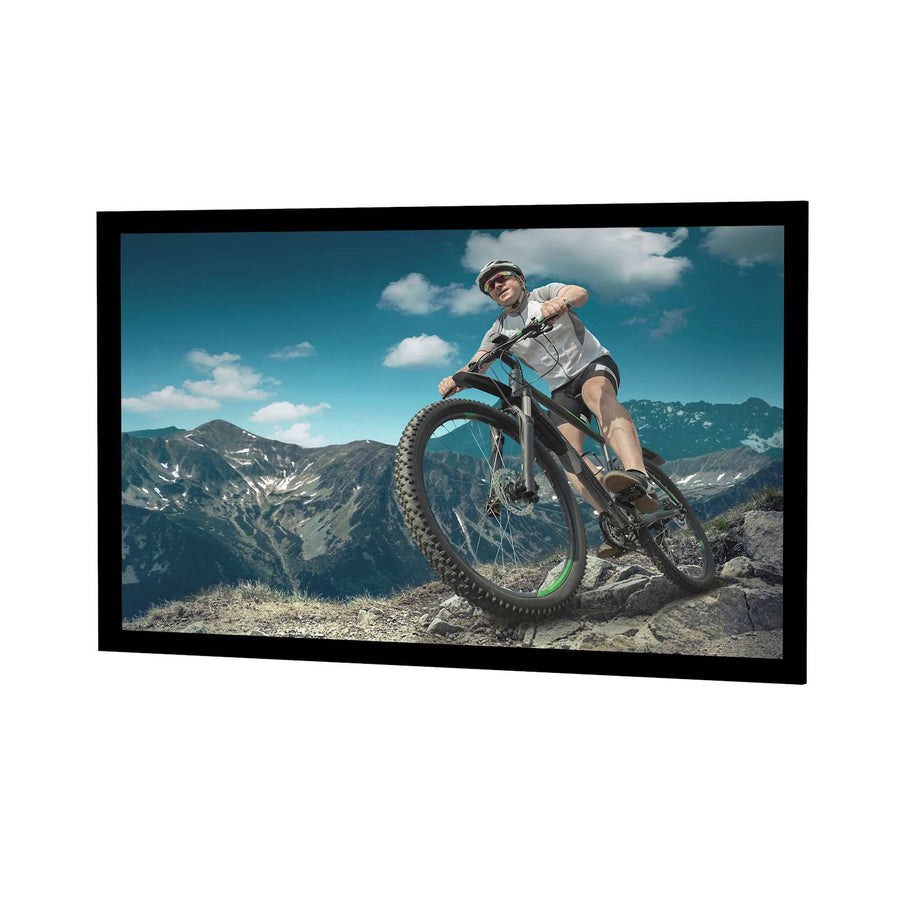

Da-Lite Cinema Contour, 58" x 104" with Da-Tex
Rear projection fixed frame screen with Da-Tex surface, measuring 58" x 104" with a 119" diagonal
The Da-Lite 87165V is a Cinema Contour series fixed frame screen designed specifically for rear projection applications. This unit features a 58" x 104" viewing area, providing a 119 in (302.3 cm) diagonal screen format in a 16:9 HDTV aspect ratio. The screen utilizes the Da-Tex surface, which is mounted on the back of an aluminum frame that features a 45-degree angle-cut design. To maximize visual contrast for high-definition viewing, the frame is equipped with a Pro-Trim Standard finish to absorb ambient light surrounding the viewing area, while the standard black backing helps retain projected brightness. This TAA compliant screen is designed for wall application and features a perfectly flat viewing surface. This specific configuration is part of a customizable series where frame, finish, size, and surface can be tailored to specific project requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 58 in (147.3 cm) |
| Shipping Dimensions | 118" x 8" x 9" (299.7 x 20.3 x 22.9 cm) |
| Shipping Weight | 42 lbs (19.1 kg) |
| Size | 58" x 104" or 119" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | Pro-Trim Standard |
All other specifications 9
| Frame Type | Pro-Trim |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Fixed Frame |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068666672 |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite 87165V suitable for rear projection?
Yes, this Cinema Contour screen is specifically configured for Rear Projection use with a Da-Tex surface.
What are the dimensions of the 87165V viewing area?
The screen has a 58 in (147.3 cm) height and a 104 in width, resulting in a 119 in (302.3 cm) diagonal.
Does this screen support 4K or Ultra HD content?
The Cinema Contour series is designed to maximize projector technology for 4K and Ultra HD, utilizing the Da-Tex surface to maintain high-quality imagery.
What is the frame finish for this model?
The 87165V features the Pro-Trim Standard finish, which helps absorb light around the screen to increase viewer contrast.
Which installation document is needed for submittals?
Installers can refer to the Cinema Contour Specification Sheet (PDF) for technical data or the Cinema Contour Instructions (PDF) for installation guidance.
