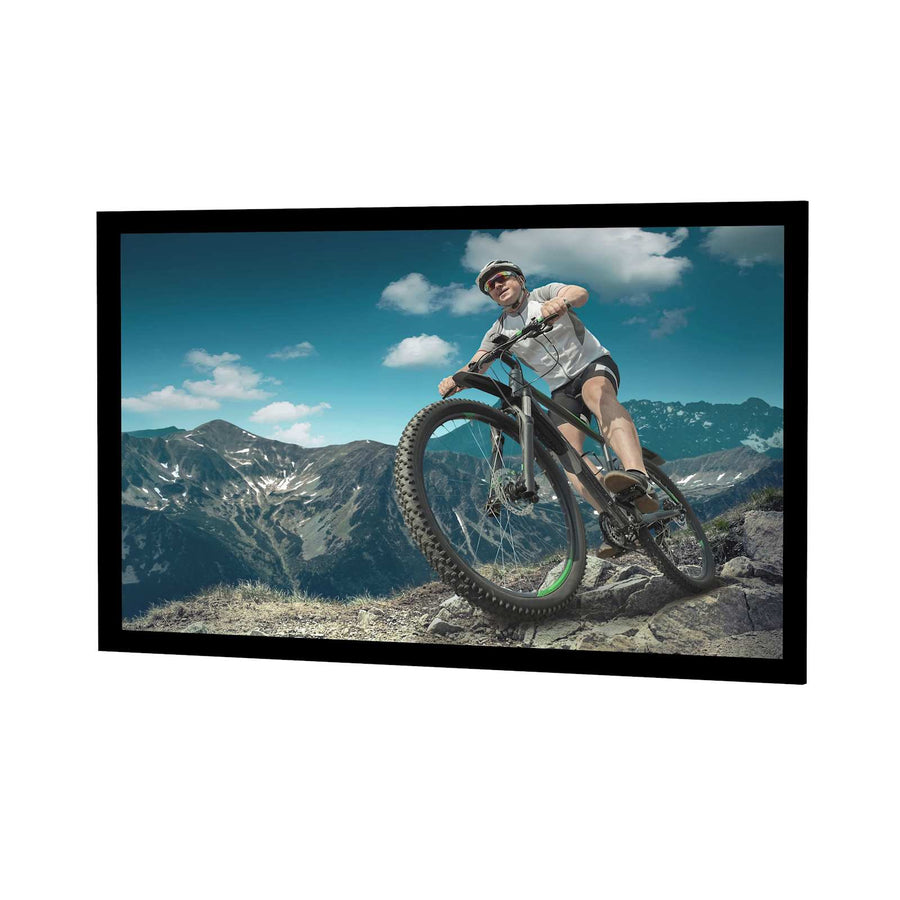

Da-Lite Cinema Contour, 40.5" x 96" with HD Progressive 1.0
Ultrawide 21:9 fixed frame screen, 40.5" x 96" (104" diagonal) with HD Progressive 1.0 surface
The Da-Lite DL15770V is a Cinema Contour series fixed frame screen designed for high-end front projection applications. This ultrawide 21:9 format model measures 40.5" x 96" (104" diagonal), making it an ideal choice for cinematic aspect ratios. It features the HD Progressive 1.0 surface, which is a high-resolution screen surface engineered to maximize the performance of 4K and Ultra HD projectors. The screen is constructed with a 45-degree angle-cut aluminum frame that provides a perfectly flat viewing surface. To enhance image contrast for film purists, the frame is finished with Pro-Trim® standard finish, which helps absorb ambient light surrounding the viewing area. Additionally, a standard black backing is used to ensure projected brightness is retained. This TAA compliant product is manufactured in the US and is designed for wall application.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 104 in (264.2 cm) |
| Screen Height | 40.5 in (102.9 cm) |
| Shipping Dimensions | 110" x 8" x 9" (279.4 x 20.3 x 22.9 cm) |
| Shipping Weight | 39 lbs (17.7 kg) |
| Size | 40.5" x 96" or 104" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | Pro-Trim Standard |
All other specifications 9
| Frame Type | Pro-Trim |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 840236944361 |
| Certifications | TAA |
Resources
Questions about this part
Will the DL15770V fit a 21:9 aspect ratio projection setup?
Yes, this DL15770V model is a dedicated 21:9 ultrawide format screen with dimensions of 40.5" x 96".
What is the purpose of the Pro-Trim finish on the Cinema Contour frame?
The Pro-Trim finish is designed to absorb ambient light surrounding the viewing area, which helps enhance image contrast.
Is this screen suitable for 4K or Ultra HD projectors?
Yes, the HD Progressive 1.0 surface is designed specifically to maximize the technology of 4K and Ultra HD projectors.
What type of mounting is required for this screen?
This is a fixed frame screen intended for wall application.
Which documents are available for submittals and installation?
Installers can access the Cinema Contour Specification Sheet, the Installation Instructions, and BIM models for project integration.
