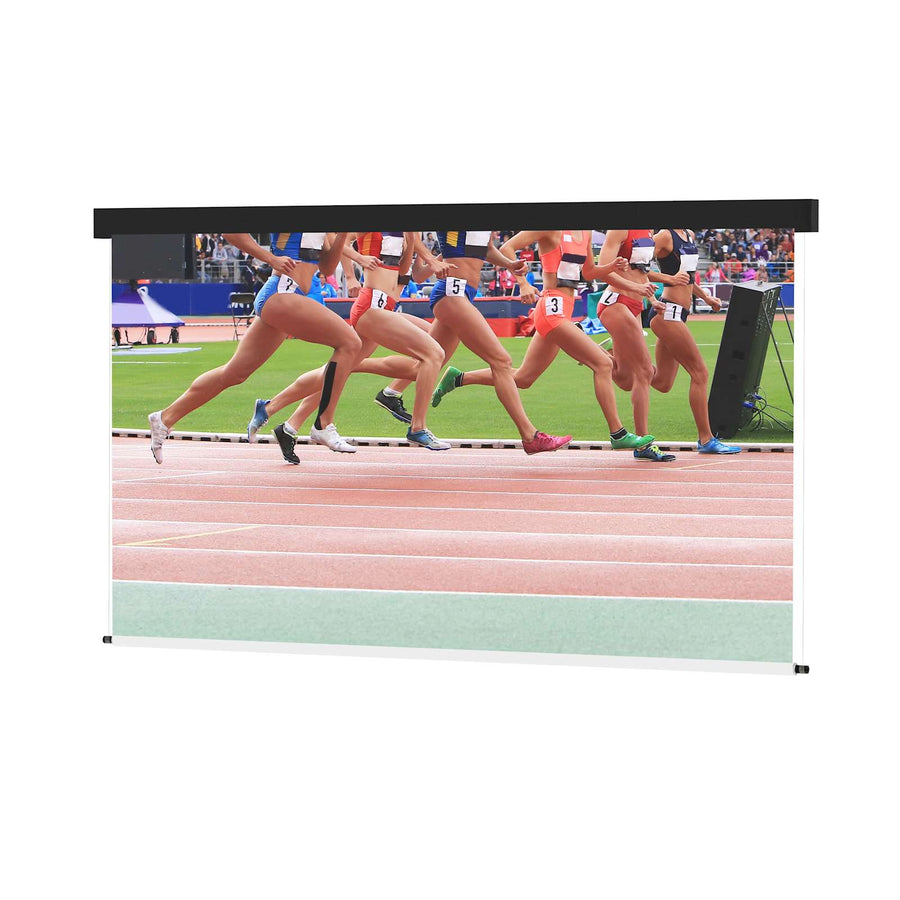

Da-Lite Arena Electrol, 236" x 472" with Perforated Matte White - 20832E
Large format 2:1 Arena Electrol motorized screen, 236" x 472" with Perforated Matte White acoustically transparent surface
The Da-Lite 20832E is a high-resolution Arena Electrol electric projection screen designed specifically for large-scale venues. Measuring 236" x 472" with a 2:1 aspect ratio, this unit is engineered for front projection applications where screen width exceeds 39 feet. This specific model features a Perforated Matte White surface that is acoustically transparent, allowing for high-quality audio integration. The construction includes a durable steel inner frame with a black steel case finish and fixed mounting brackets. For smooth operation during retraction, the system utilizes a built-in balancing system and steel cable guides to maintain a flat viewing surface. This 220V motor unit is suitable for both ceiling and wall mounting applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 0 in (0 cm) |
| Screen Height | 236 in (599.4 cm) |
| Size | 236" x 472" |
| Application | CeilingWall |
| Projection Type | Front Projection |
| Screen Format | 2:1 |
| Screen Options | 220V Motor |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Surface | Perforated Matte White |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
What is the aspect ratio and surface type of the 20832E?
The 20832E features a 2:1 screen format and utilizes a Perforated Matte White surface for acoustically transparent, high-resolution front projection.
How is the Arena Electrol screen motorized and powered?
This model is an electric screen powered by a 220V motor and includes a radio frequency remote control for operation.
Can I add control interfaces to this Arena Electrol screen?
Yes, you can integrate this screen with accessories like the Da-Lite Radio Frequency Single Channel Wall Switch (28359) or the Radio Frequency Dry Contact Interface (71912).
What mounting options are available for the 20832E?
This screen is designed for both ceiling and wall applications and comes with fixed mounting brackets and a black steel case finish.
How do I ensure a flat viewing surface during retraction?
The Arena Electrol series uses a built-in balancing system and steel cable guides to ensure the surface remains flat during movement.
