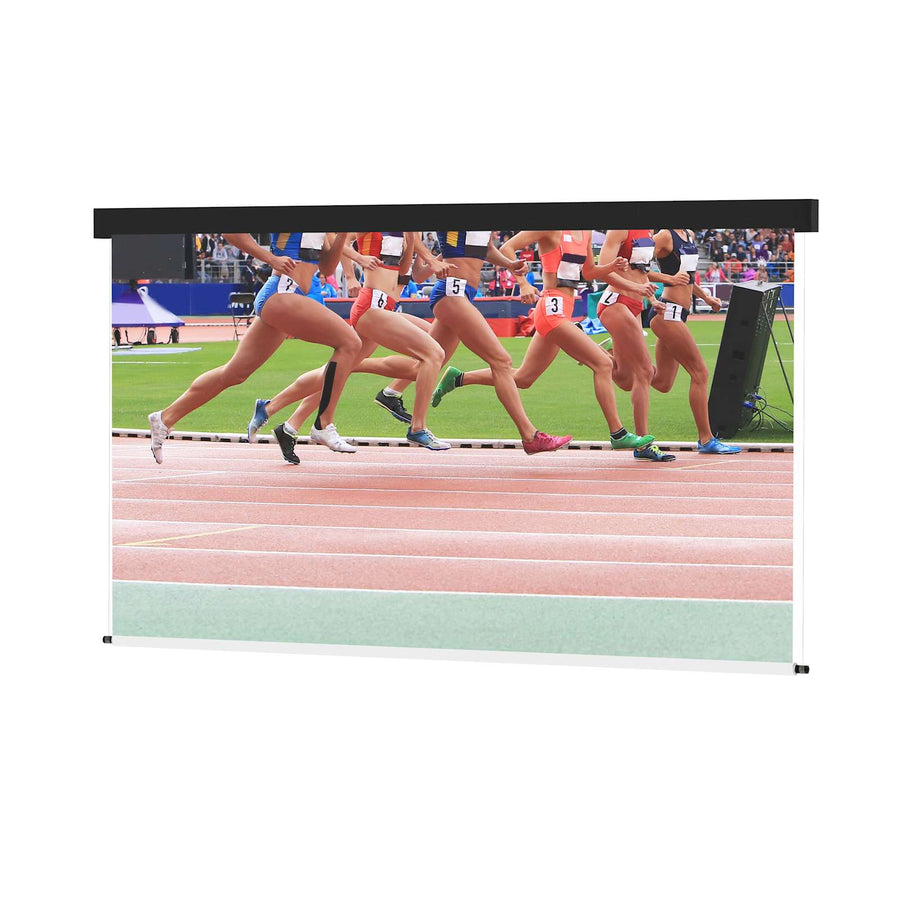

Da-Lite Arena Electrol, 230" x 408" with Perforated Matte White - 20824E
Motorized 230" x 408" projection screen featuring an acoustically transparent Perforated Matte White surface for large venue front projection
The Da-Lite Arena Electrol 20824E is a large-format motorized projection screen engineered for expansive venues. This 230" x 408" (469" diagonal) screen is built for front projection applications and features a 16:9 HDTV screen format. The surface is a Perforated Matte White that is both high resolution and acoustically transparent, making it suitable for setups where audio must pass through the screen. This model features a 220V motor for electric operation. The construction includes a durable steel inner frame with a black steel case finish, utilizing fixed mounting brackets for ceiling or wall applications. To ensure a flat viewing surface and smooth retraction, the unit incorporates a built-in balancing system and steel cable guides. The screen surface is centered within the housing to provide a borderless appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 469 in (1,191.3 cm) |
| Screen Height | 230 in (584.2 cm) |
| Size | 230" x 408" or 469" diagonal |
| Application | CeilingWall |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Options | 220V Motor |
| Screen Surface Features | Acoustically TransparentHigh Resolution |
| Screen Type | Electric |
| Surface | Perforated Matte White |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Arena Electrol 20824E work for front projection with audio behind the screen?
Yes, this model features an acoustically transparent Perforated Matte White surface designed to allow sound to pass through for front projection setups.
What are the mounting requirements for the Da-Lite 20824E?
This screen is designed for either ceiling or wall applications and utilizes a fixed mounting bracket system with a steel inner frame.
Does this screen include a remote control for operation?
The Arena Electrol series includes a radio frequency remote control for electric operation.
Can I integrate this screen into a hardwired control system?
Yes, you can add compatible accessories such as the Da-Lite Radio Frequency Single Channel Wall Switch (SKU 28359) or a Dry Contact Interface (SKU 71912).
What is the voltage requirement for the motor on this SKU?
This specific model (20824E) is equipped with a 220V motor option.
