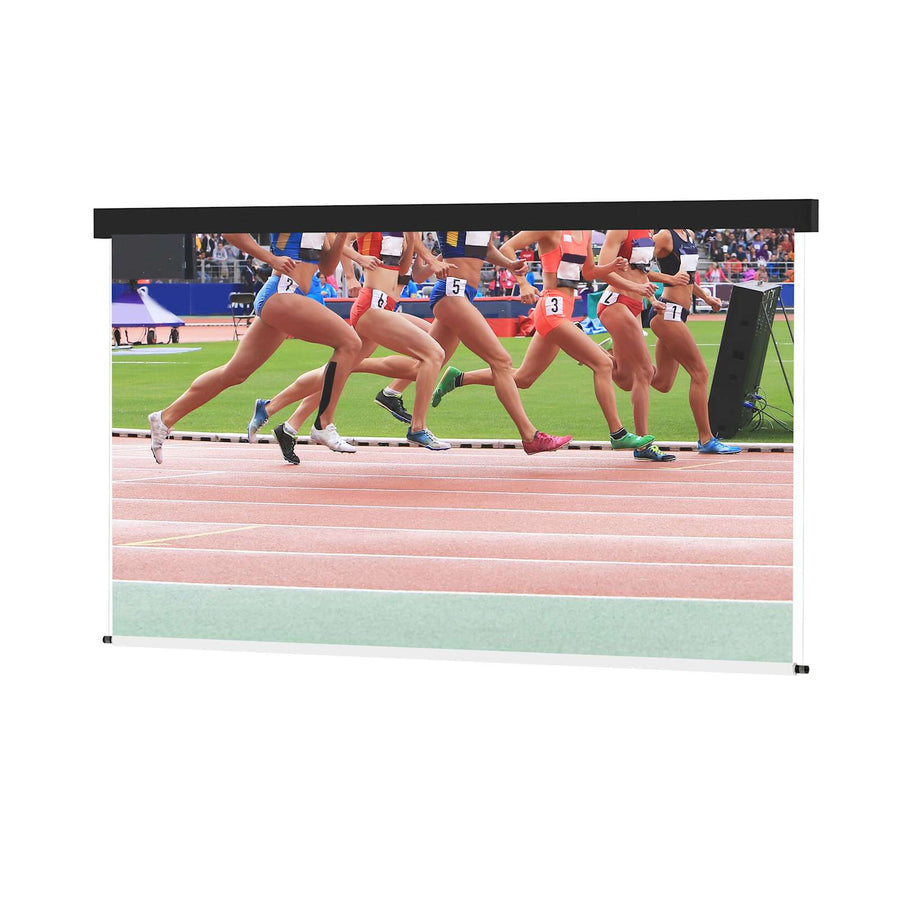

Da-Lite Arena Electrol, 230" x 408" with Matte White - 20823E
Motorized front projection screen, 230" x 408" (469" diagonal), with Matte White surface and 220V motor
The Da-Lite Arena Electrol 20823E is a motorized projection screen designed for large venues that require a durable solution over 39 feet wide. This unit features a 230" x 408" (469" diagonal) screen size with a 16:9 HDTV aspect ratio, making it suitable for modern high-definition content. The screen utilizes a Matte White surface with White Backing for front projection applications. For smooth operation and a flat viewing surface, the series incorporates a built-in balancing system and steel cable guides. The retractable screen surface is centered within a durable steel inner frame that features a black steel case finish and fixed mounting brackets. This specific 20823E model is equipped with a 220V motor and includes a radio frequency remote control for wireless operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 469 in (1,191.3 cm) |
| Screen Height | 230 in (584.2 cm) |
| Size | 230" x 408" or 469" diagonal |
| Application | CeilingWall |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Options | 220V Motor |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (White Backing) |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
What are the dimensions of the 20823E screen?
This screen has a width of 408 inches and a height of 230 inches, providing a 469 in (1,191.3 cm) diagonal.
Can I control the Arena Electrol 20823E with a wall switch?
Yes, you can integrate the screen with Da-Lite Radio Frequency single channel wall switches (SKU 28359) or dry contact interfaces (SKU 71912).
What type of projection is required for this screen?
The 20823E is designed specifically for front projection applications using a Matte White surface.
Is this screen suitable for ceiling or wall mounting?
Yes, this Arena Electrol model is rated for both ceiling and wall applications.
What documents are available for installation and submittals?
You can refer to the Arena Electrol Installation instructions or the Arena Electrol Product Information Sheet for technical details.
