Da-Lite Arena Electrol, 201" x 472" with Matte White - 20829E
Cinemascope motorized projection screen for large venues, 201" x 472" (513" diagonal) with Matte White surface

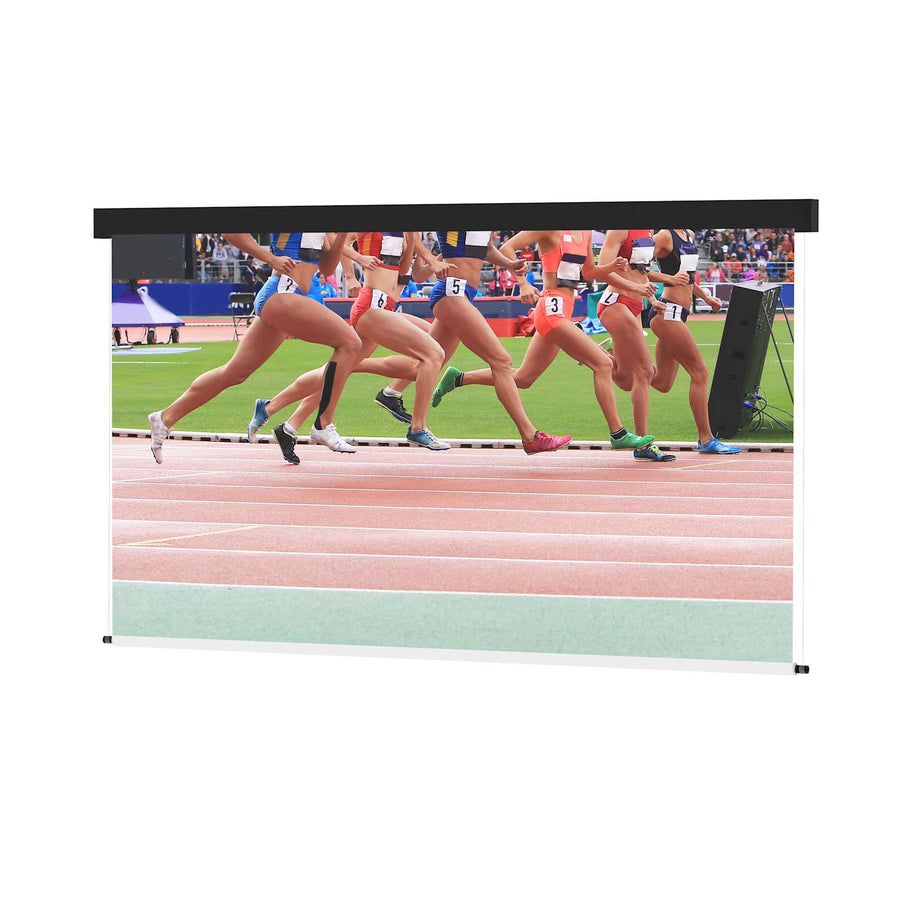

The Da-Lite Arena Electrol 20829E is a motorized projection screen engineered for large-scale venues requiring a durable, expansive viewing surface. This specific model features a 201" x 472" (513" diagonal) screen in a Cinemascope 2.35:1 aspect ratio. It is equipped with a 220V motor and a Matte White surface with white backing for standard resolution front projection applications. The unit is constructed with a durable steel inner frame featuring a black steel case finish and fixed mounting brackets. To ensure a smooth, flat viewing surface during operation, the screen utilizes a built-in balancing system and steel cable guides. This borderless screen surface is centered within the housing for consistent performance in high-demand environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 513 in (1,303 cm) |
| Screen Height | 201 in (510.5 cm) |
| Size | 201" x 472" or 513" diagonal |
| Application | CeilingWall |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Options | 220V Motor |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (White Backing) |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
What are the dimensions of the Arena Electrol 20829E?
This screen has a height of 201" (510.5 cm) and a width of 472" (1200 mm), totaling a 513" (1,303 cm) diagonal.
What control options are available for this motorized screen?
The 20829E includes a radio frequency remote control. Additional control options include a wireless wall switch (SKU 28359), a dry contact interface (SKU 71912), or RS-232 control (SKU 29243).
Can this screen be mounted on a wall or ceiling?
Yes, the Arena Electrol series is designed for both ceiling and wall applications.
What is the finish of the screen housing?
The standard model features a black steel case finish with fixed mounting brackets; a white case is available as an additional charge.
Which document is required for installation?
For installation procedures, refer to the Arena Electrol Instructions (PDF) document provided in the resources section.
