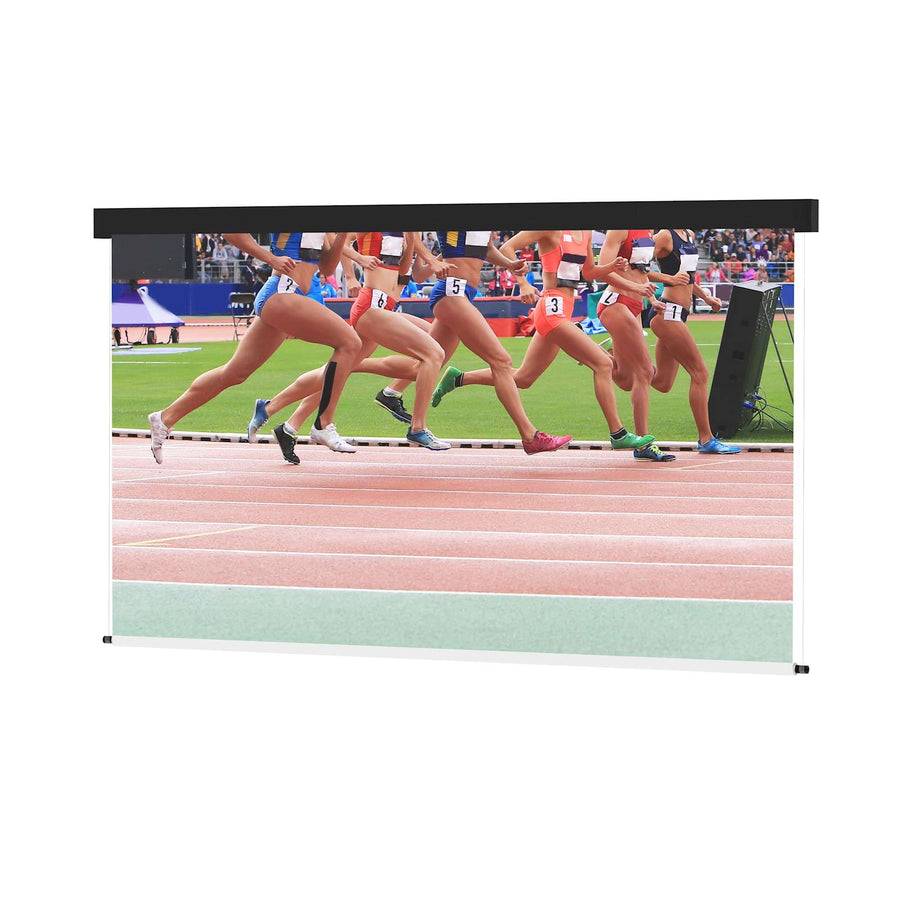

Da-Lite Arena Electrol, 194" x 456" with Matte White - 20827E
Large-format Cinemascope electric screen measuring 194" x 456" with a Matte White surface and 220V motor
The Da-Lite Arena Electrol 20827E is a motorized projection screen designed for large-scale venues requiring high-durability surfaces. This specific model features a 194" x 456" (495" diagonal) Cinemascope (2.35:1) screen format, making it suitable for wide-aspect cinema presentations. The unit utilizes a Matte White surface with white backing for standard resolution front projection applications. To ensure smooth operation in large-scale installations, the screen incorporates a built-in balancing system and steel cable guides to maintain a flat viewing surface during retraction. The housing features a durable steel inner frame finished in black steel, and it includes fixed mounting brackets for ceiling or wall applications. This 220V motor version provides the power necessary for managing large-format screen retraction in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 495 in (1,257.3 cm) |
| Screen Height | 194 in (492.8 cm) |
| Size | 194" x 456" or 495" diagonal |
| Application | CeilingWall |
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Options | 220V Motor |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Matte White (White Backing) |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Arena Electrol 20827E fit a Cinemascope setup?
Yes, this 20827E model is configured in a 2.35:1 Cinemascope screen format with a 194" x 456" area.
What is required for hardwired control of this screen?
For integrated control, you can use the Da-Lite Radio Frequency Single Channel Wall Switch (28359) or the Radio Frequency Dry Contact Interface (71912).
Can I use this screen for front projection?
Yes, the 20827E is designed specifically for front projection using a Matte White surface.
Is the housing finish customizable for this model?
The standard 20827E features a black steel case finish, but a white case is available upon request at an additional charge.
What documents are available for installation and submittals?
Installers can refer to the Arena Electrol Instructions PDF or the Arena Electrol Product Information Sheet for technical details.
