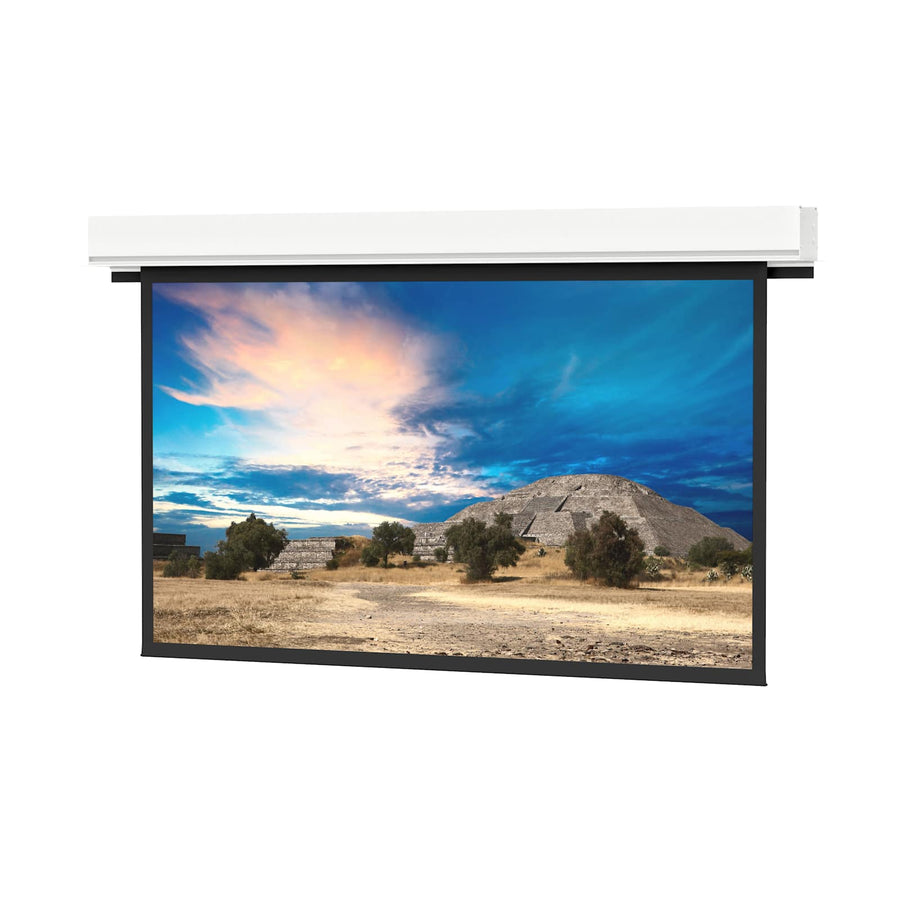

Da-Lite Advantage Series, 96" x 96" with Matte White - 88095B
Square ceiling recessed electric screen, 96" x 96" surface, featuring an automatic closure door and matte white finish
The Da-Lite 88095B is a ceiling recessed electric projection screen designed for large venue applications. This square format screen features a 96" x 96" matte white non-tensioned surface with a standard resolution. It is engineered for front projection and utilizes a standard black drop to maintain high brightness on the projection surface. The unit includes an automatic closure door and is powered by a standard 120V (60Hz) motor with built-in standard low voltage control. This SKU is part of the Advantage Series, which allows for a two-stage installation: the white powder-coated, UL Plenum rated case can be installed during the rough-in stage, while the screen surface assembly is added during finishing. The housing is designed to conceal the rough opening with ceiling trim. This TAA compliant product is manufactured in the US and provides a professional, integrated look for recessed ceiling installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 136 in (345.4 cm) |
| Screen Height | 96 in (243.8 cm) |
| Shipping Dimensions | 118" x 13" x 10" (299.7 x 33 x 25.4 cm) |
| Shipping Weight | 80 lbs (36.3 kg) |
| Size | 96" x 96" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068697782 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is required for the rough-in for the Da-Lite 88095B?
The Advantage Series allows for a two-stage installation where the case is installed during the rough-in construction stage, while the screen surface is installed during finishing.
Does the 88095B include a wall switch?
This model features standard low voltage control; for additional control options, you can add the Da-Lite 40975 Low Voltage Wall Switch or a 98837 Locking Switch Cover Plate.
Is this screen suitable for plenum environments?
Yes, the 88095B features a UL Plenum rated case, making it suitable for specific installation requirements in ceiling spaces.
What is the projection type for this screen?
This is a front projection screen utilizing a standard black drop to preserve brightness on the matte white surface.
What dimension is the 88095B screen surface?
The screen surface is 96" x 96" (243.8 cm) in a square format with a 136 inch (345.4 cm) diagonal.
