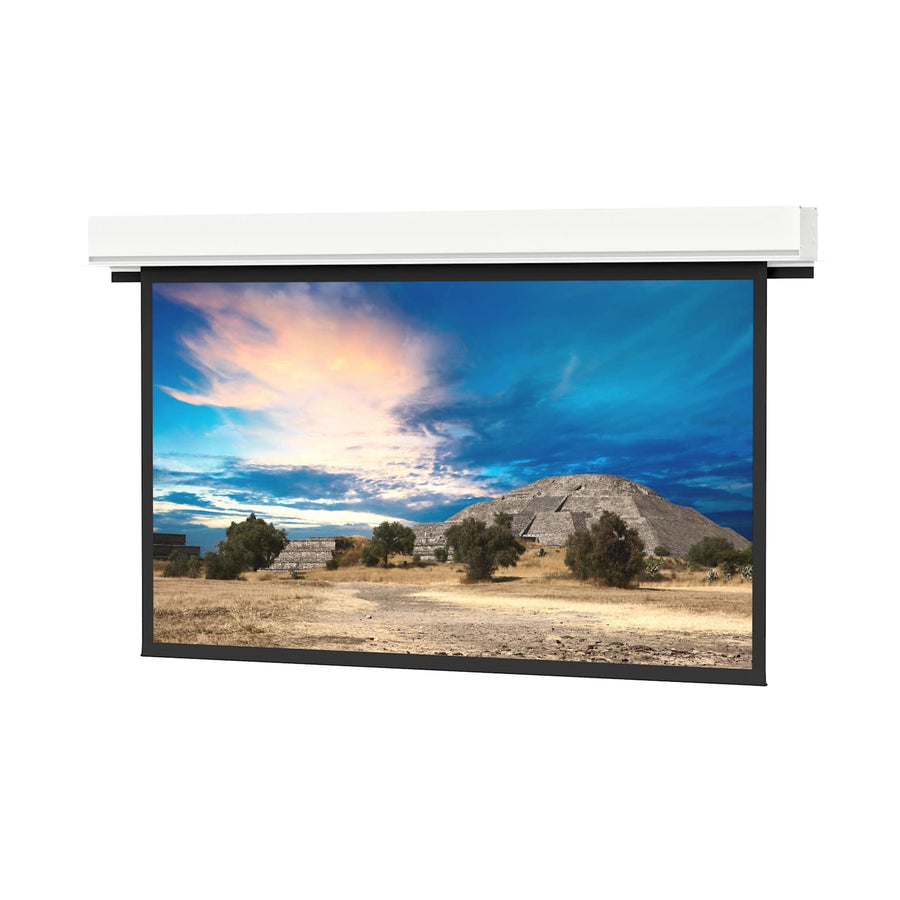

Da-Lite Advantage Series, 90" x 160" with Matte White - 35179
Ceiling recessed electric screen for front projection, 90" x 160" (184" diagonal) with Matte White surface and automatic closure door
The Da-Lite 35179 is a ceiling recessed electric screen designed for large venue environments requiring a clean, integrated aesthetic. This 90" x 160" (184" diagonal) screen features a Matte White non-tensioned surface optimized for front projection. Because this unit includes an automatic closure door, it protects the screen surface when not in use, making it a complete solution for professional AV installations. This TAA-compliant model is powered by a standard 120V (60Hz) motor and includes standard low voltage control. The white powder-coated housing is designed for ceiling recessed applications, with a two-stage installation process that allows the case to be installed during the rough-in phase and the screen surface assembly to be completed during the finishing stage. The unit features a standard black drop and a black backing to ensure maximum projected brightness for the front projection surface. This model is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Weight | 198 lbs (89.8 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen work with my existing low voltage controls?
Yes, the 35179 features standard low voltage control and is compatible with accessories like the Da-Lite 40975 Low Voltage Wall Switch.
What is the installation requirement for this recessed screen?
This model is designed for ceiling recessed applications using a two-stage installation method. The housing can be installed during rough-in, with the surface assembly installed during finishing.
Is this screen suitable for plenum environments?
Yes, this specific SKU features a UL Plenum rated case, making it suitable for air handling spaces.
What type of projection is required for this surface?
The 35179 is a front projection screen featuring a Matte White surface and a standard black drop to help maintain brightness.
Does this screen include a way to lock the controls?
You can add the Da-Lite 98837 Locking Switch Cover Plate to provide extra security for the wall switch.
