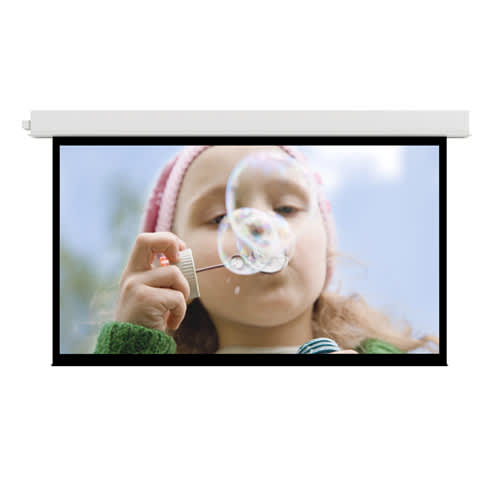

Da-Lite Advantage Series, 87" x 139" with Matte White - 34524EBL
Electric ceiling recessed screen, 87" x 139" (164" diagonal), matte white non-tensioned surface with 220V motor and TAA compliance
The Da-Lite 34524EBL is an electric ceiling recessed projection screen designed for professional large venue applications. Measuring 87" x 139" with a 164" diagonal, this screen features a matte white, non-tensioned surface optimized for front projection. It utilizes a standard black drop type and a slot closure door. This specific model is configured with a 220V (50Hz) motor intended for export markets and includes standard low voltage control for flexible operation. As an Advantage Series product, it is designed for ceiling recessed installation, allowing the case to be installed during the rough-in stage and the surface assembly during final finishing. The white powder-coated case is UL plenum rated, ensuring compliance for various installation environments. This TAA compliant screen provides a professional, clean aesthetic with a seamless surface and a standard black backing to maintain brightness for front projection setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will this screen fit a standard ceiling rough-in?
Yes, the Advantage Series is designed for ceiling recessed applications where the case can be installed during the rough-in stage to conceal the opening.
What is the motor voltage for the 34524EBL?
This specific SKU features a 220V (50Hz) motor, which is configured for export markets.
Does this screen meet TAA requirements?
Yes, the 34524EBL is TAA compliant and carries CE certification.
Can I use this screen for front projection?
Yes, it is designed for front projection and features a standard black backing to help retain brightness on the matte white surface.
Which installation manual should I use for the Advantage Series?
For installation and connection details, you should refer to the Da-Lite Advantage Series Instructions PDF.
