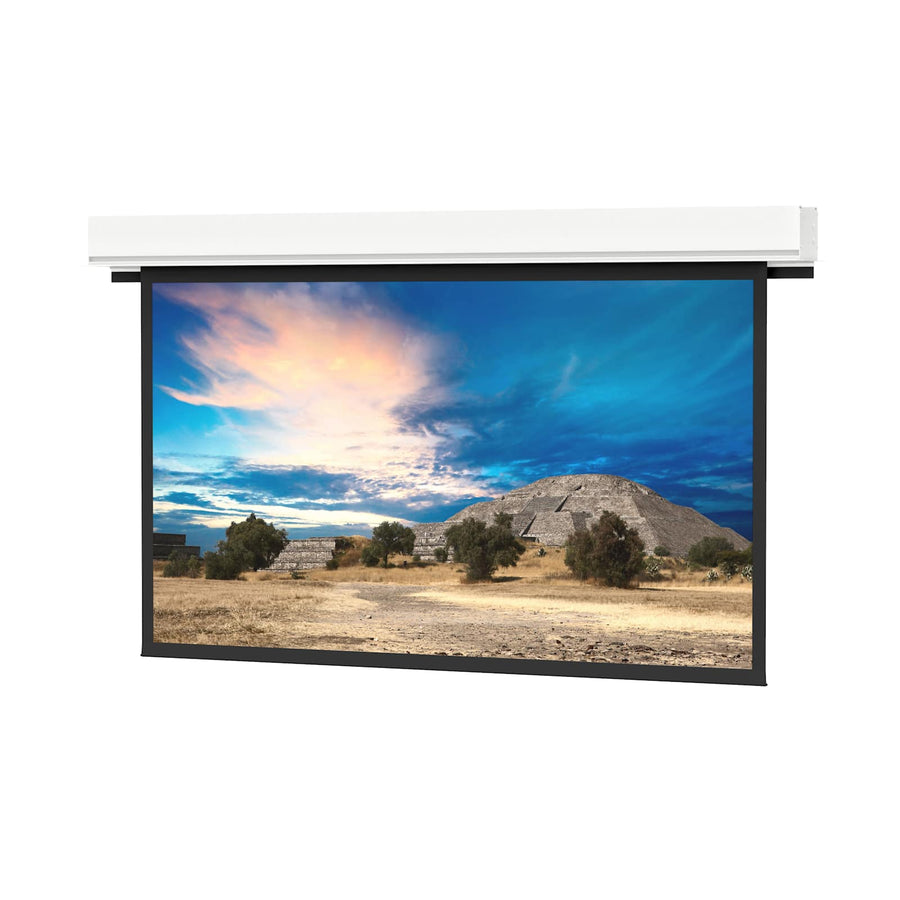

Da-Lite Advantage Series, 87" x 116" with Matte White - 88138E
150" diagonal ceiling recessed electric screen with 87" height, Matte White surface, and automatic closure door
The Da-Lite 88138E is a ceiling recessed electric screen designed for large venue front projection applications. This 150 in (381 cm) diagonal screen features a 4:3 video format and a non-tensioned Matte White surface. The series is engineered to conceal the rough opening with integrated ceiling trim, eliminating the need for additional trim work after installation. This model includes an automatic closure door and a standard black drop to maintain high projected brightness on the front projection surface. For export applications, this unit is equipped with a 220V (50Hz) motor. Installation is flexible due to the two-stage process, allowing the case to be installed during rough-in and the surface assembly to be completed during the finishing stage. The white powder-coated case is UL Plenum rated, providing a clean aesthetic that meets stringent building requirements. This TAA compliant screen provides a professional, recessed finish for high-end AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 150 in (381 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 142" x 13" x 10" (360.7 x 33 x 25.4 cm) |
| Shipping Weight | 165 lbs (74.8 kg) |
| Size | 87" x 116" or 150" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068709898 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit a 4:3 aspect ratio application?
Yes, the 88138E is specifically configured for a 4:3 video format with an 87 in (221 cm) screen height.
What is required for the installation of the 88138E?
The screen uses a two-stage installation process where the case is installed during rough-in and the surface is installed during finishing; you will need to manage the standard low voltage control wiring.
Is the 88138E suitable for plenum-rated environments?
Yes, the white powder-coated case for this model is UL Plenum rated for safe installation in ceiling spaces.
What accessories are compatible with this Advantage Series screen?
You can add a Da-Lite Low Voltage Wall Switch (40975) or a Da-Lite Locking Switch Cover Plate (98837) for enhanced control and security.
Does this screen support international power requirements?
This specific SKU features a 220V (50Hz) motor, making it suitable for export applications.
