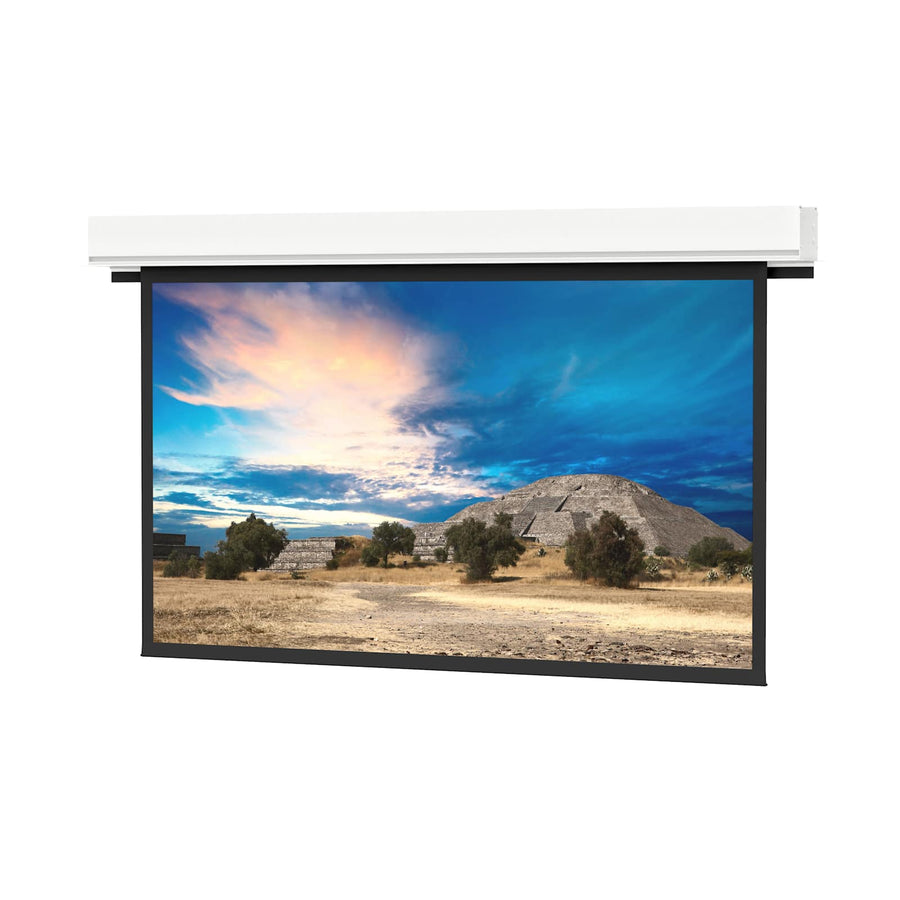

Da-Lite Advantage Series, 87" x 116" with Matte White - 88138B
Ceiling recessed electric screen with 87" x 116" Matte White surface, 4:3 video format, and automatic closure door
The Da-Lite 88138B is a ceiling recessed electric screen from the Advantage Series, designed for high-end professional environments. This 150 in (381 cm) diagonal screen features an 87 in (221 cm) height and a Matte White non-tensioned surface optimized for front projection. It is configured in a 4:3 video format, making it a versatile choice for legacy video presentations in large venue settings. This specific SKU is an Advantage Deluxe model, which includes an automatic closure door to protect the screen surface when not in use. The unit utilizes a standard 120V (60Hz) motor with built-in standard low voltage control for streamlined wiring. Designed for recessed installation, the white powder-coated case is UL Plenum rated and features a standard black drop. This TAA compliant screen is manufactured in the US and provides a professional, clean aesthetic for any ceiling-mounted installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 150 in (381 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 142" x 13" x 10" (360.7 x 33 x 25.4 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 87" x 116" or 150" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068709829 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the screen size and format for the Da-Lite 88138B?
The 88138B has a screen size of 87" x 116" (221 cm x 294.5 cm), which is a 150 in (381 cm) diagonal in a 4:3 video format.
Does this screen require additional trim work after installation?
The Advantage Series is designed with ceiling trim in place to conceal the rough opening, which eliminates the need for additional trim work once installed.
What electrical requirements are needed for this motor?
This model uses a standard 120V (60Hz) motor and features built-in standard low voltage control for simplified installation.
What accessories are compatible with this screen?
You can add a Da-Lite Low Voltage Wall Switch (SKU 40975) or a Da-Lite Locking Switch Cover Plate (SKU 98837) for complete control and security.
Is this screen suitable for plenum ceiling environments?
Yes, the white powder-coated case for this model is UL Plenum rated for safe installation in plenum spaces.
