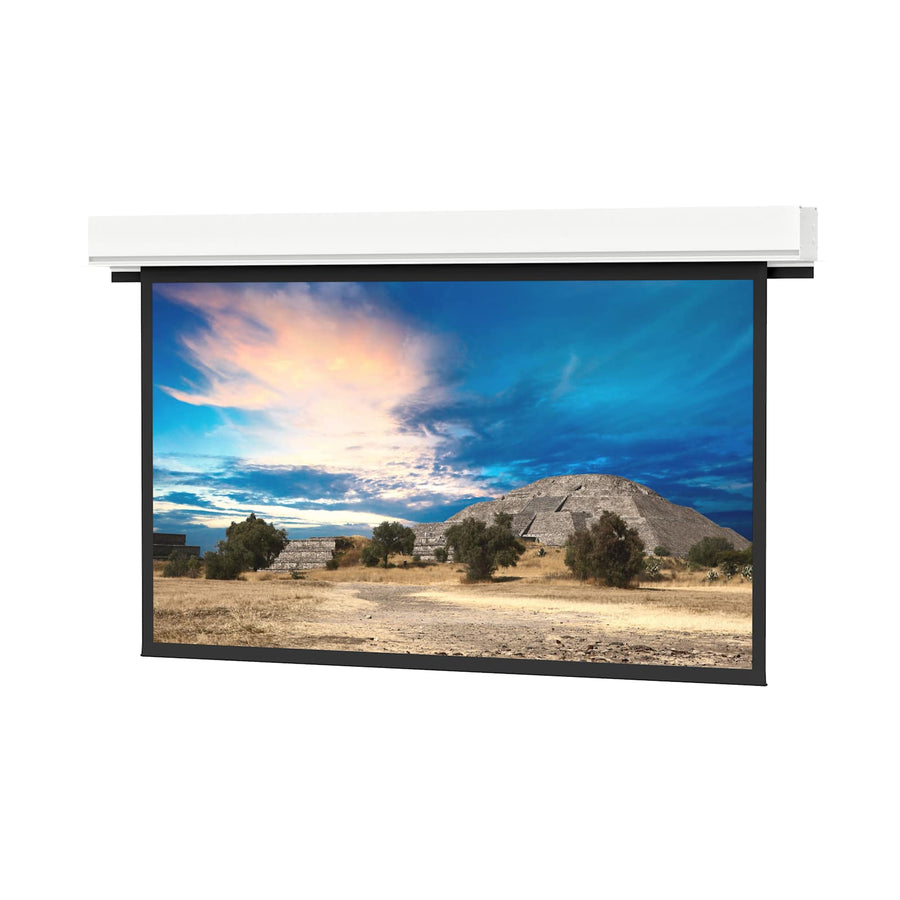

Da-Lite Advantage Series, 87" x 116" with High Contrast Matte White - 92596EF
Ceiling recessed electric screen with 150" diagonal, 87" x 116" High Contrast Matte White surface, and automatic closure door
The Da-Lite 92596EF is an Advantage Series ceiling recessed electric screen designed for professional large venue environments. This 150 in (381 cm) diagonal screen features a High Contrast Matte White non-tensioned surface and a 4:3 video format, making it an efficient solution for front projection applications. Built for seamless integration, the white powder-coated case is UL Plenum rated and includes an automatic closure door to protect the screen when not in use. This specific SKU is the Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. For international installations, this unit is equipped with a 220V (50Hz) motor and includes standard low voltage control. The assembly utilizes a standard black drop and includes a black backing to maintain projected brightness. This TAA compliant, US-made screen offers a professional aesthetic for recessed ceiling installations where a clean, finished look is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 150 in (381 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Weight | 40 lbs (18.1 kg) |
| Size | 87" x 116" or 150" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 92596EF?
This SKU is the Surface, Roller, and Motor Assembly Only. The case and box must be ordered separately to complete the installation.
Does the 92596EF support front projection?
Yes, this screen is designed for front projection using a High Contrast Matte White surface and a standard black drop to retain brightness.
Is the 92596EF TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
What additional controls are available for this screen?
The screen features standard low voltage control. You can also purchase the Da-Lite 40975 Low Voltage Wall Switch and the 98837 Locking Switch Cover Plate.
What is the required voltage for the motor?
This model is equipped with a 220V (50Hz) motor specifically for export use.
