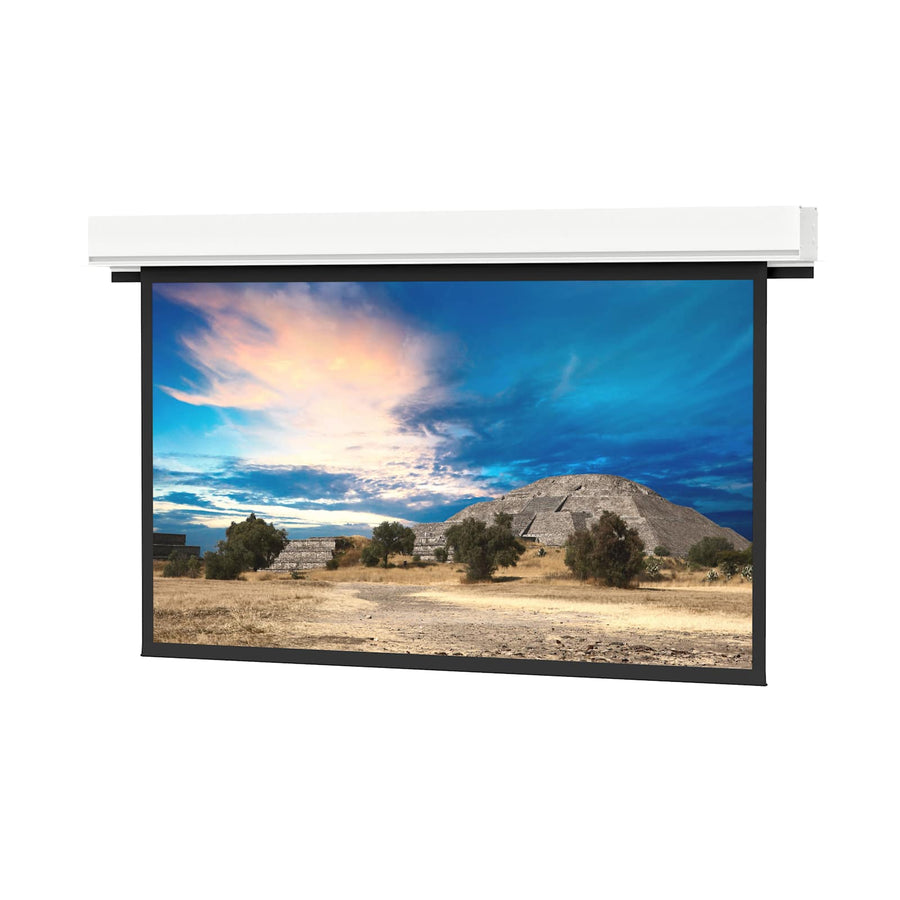

Da-Lite Advantage Series, 78" x 139" with High Contrast Matte White - 92601EB
159" diagonal ceiling recessed electric screen with High Contrast Matte White surface and automatic closure door
The Da-Lite 92601EB is an Advantage Series ceiling recessed electric screen designed for high-impact large venue environments. This 159" (403.9 cm) diagonal screen features a 78" (198.1 cm) height and utilizes a High Contrast Matte White non-tensioned surface. Engineered for front projection, the screen utilizes a standard black drop and a standard black backing to retain maximum projected brightness on the front surface. This specific SKU includes an automatic closure door, which is part of the Advantage Deluxe Electrol configuration. This model is built for international use with a 220V (50Hz) motor. The system utilizes standard low voltage control (LVC) and is TAA compliant. Because it is designed for recessed installation, the case and surface assembly can be installed in stages to accommodate rough-in construction and final finishing requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 110.5 lbs (50.1 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the voltage requirement for the Da-Lite 92601EB?
This model is equipped with a 220V (50Hz) motor specifically for export applications.
Will this screen work with my existing low voltage control system?
The 92601EB features standard low voltage control (LVC) for flexible operation. You can also add a Da-Lite 40975 Low Voltage Wall Switch for control.
Does this screen include a way to cover the surface when not in use?
Yes, this SKU is part of the Advantage Deluxe Electrol series and includes an automatic closure door.
What kind of installation is required for this recessed screen?
This is a ceiling recessed screen designed for a two-stage installation: the case can be installed during the rough-in stage, while the surface assembly is installed during finishing.
Is this product TAA compliant for government projects?
Yes, the 92601EB is TAA compliant and the case is UL Plenum rated.
