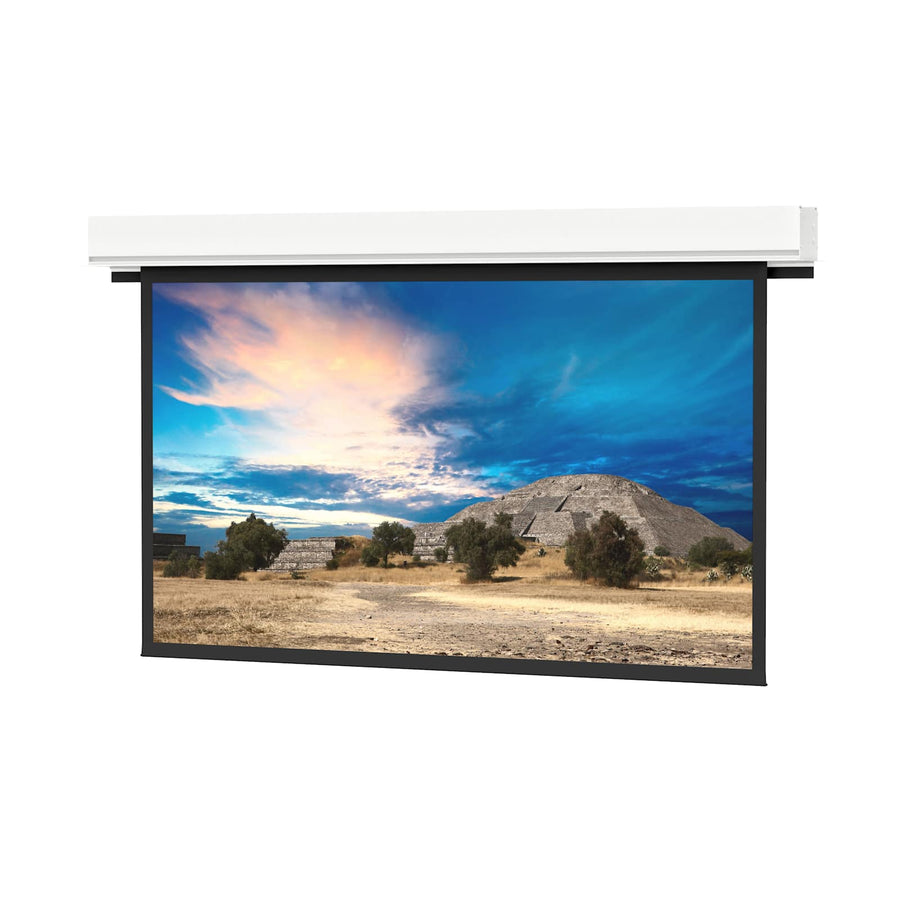

Da-Lite Advantage Series, 69" x 92" with High Contrast Matte White - 92595EB
Ceiling recessed electric screen for front projection, 120" diagonal with High Contrast Matte White surface and automatic closure door
The Da-Lite 92595EB is a ceiling recessed electric screen from the Advantage Series, specifically configured for 120 inch (304.8 cm) diagonal applications. This unit features a 69" x 92" screen size with a High Contrast Matte White non-tensioned surface designed for front projection. It is built with a standard black drop and includes an automatic closure door to protect the screen surface. This model is a 220V (50Hz) for Export configuration with standard low voltage control. For installation, this SKU is the Case/Box Only for Rough-In, designed to be installed with the ceiling trim already in place to conceal the rough opening. The white powder-coated, UL Plenum rated case provides a clean aesthetic, while the standard black backing helps maintain projected brightness. This TAA compliant screen is ideal for large venue environments requiring a professional, recessed installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Weight | 80 lbs (36.3 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen work for my ceiling installation?
Yes, the 92595EB is designed for ceiling recessed applications. The Advantage Series uses ceiling trim to conceal the rough opening, and the case can be installed during the rough-in construction stage.
What motor voltage does this screen use?
This specific model (92595EB) is equipped with a 220V (50Hz) motor intended for export use.
What do I need to purchase for the wall switch?
While this screen includes standard low voltage control, you can add a Da-Lite 40975 Low Voltage Wall Switch or a 98837 Locking Switch Cover Plate for complete control and security.
What kind of surface is on the 92595EB?
This model features a High Contrast Matte White non-tensioned surface with a standard black drop and black backing to help retain projected brightness.
Is this screen TAA compliant?
Yes, the 92595EB is TAA compliant and is manufactured in the US.
