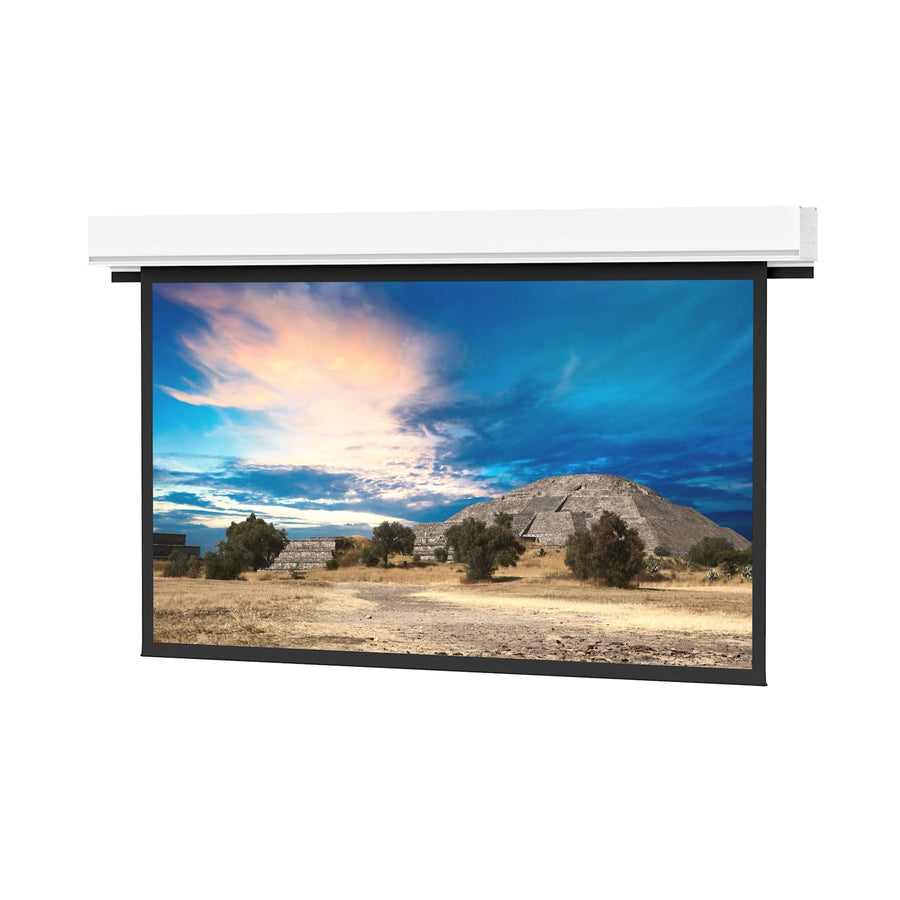

Da-Lite Advantage Series, 60" x 96" with Matte White - 34572F
60" x 96" ceiling recessed electric screen, 113" diagonal, with Matte White surface and automatic closure door
The Da-Lite 34572F is a ceiling recessed electric screen from the Advantage Series, featuring a 60" x 96" (152.4 x 2438 mm) projection area with a 113" (287 cm) diagonal. This 16:10 wide format screen is designed for front projection and utilizes a Matte White non-tensioned surface. For installation, this SKU is the Surface, Roller, and Motor Assembly only; the case/box must be ordered separately. This model features an automatic closure door to protect the screen surface when retracted and includes standard 120V (60Hz) motor operation. The unit is equipped with standard low voltage control and a standard black drop. The white powder-coated case is UL plenum rated, ensuring compliance for ceiling-mounted applications. This TAA compliant assembly is manufactured in the US, making it suitable for federal projects requiring specific domestic sourcing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 113 in (287 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 110" x 8" x 6" (279.4 x 20.3 x 15.2 cm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Size | 60" x 96" or 113" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068110595 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the 34572F a complete installation kit?
This specific SKU is the Surface, Roller, and Motor Assembly only. You must order the matching case or box separately to complete the installation.
Does this screen include a wall switch for operation?
The assembly includes standard low voltage control. You can add a Da-Lite Decora-style three-button wall switch or the 40975 Low Voltage Wall Switch for operation.
What is the mounting requirement for the 34572F?
This is a ceiling recessed application. The Advantage Series allows for a two-stage installation where the case is installed during rough-in and the surface assembly is installed during finishing.
Is this screen suitable for plenum-rated ceiling spaces?
Yes, the white powder-coated case is UL plenum rated, making it appropriate for use in ceiling spaces that require plenum compliance.
What type of projection is required for this surface?
This model is designed for front projection and features a standard black backing to help retain projected brightness on the Matte White surface.
