Da-Lite Advantage Series, 60" x 96" with High Contrast Matte White - 34573B

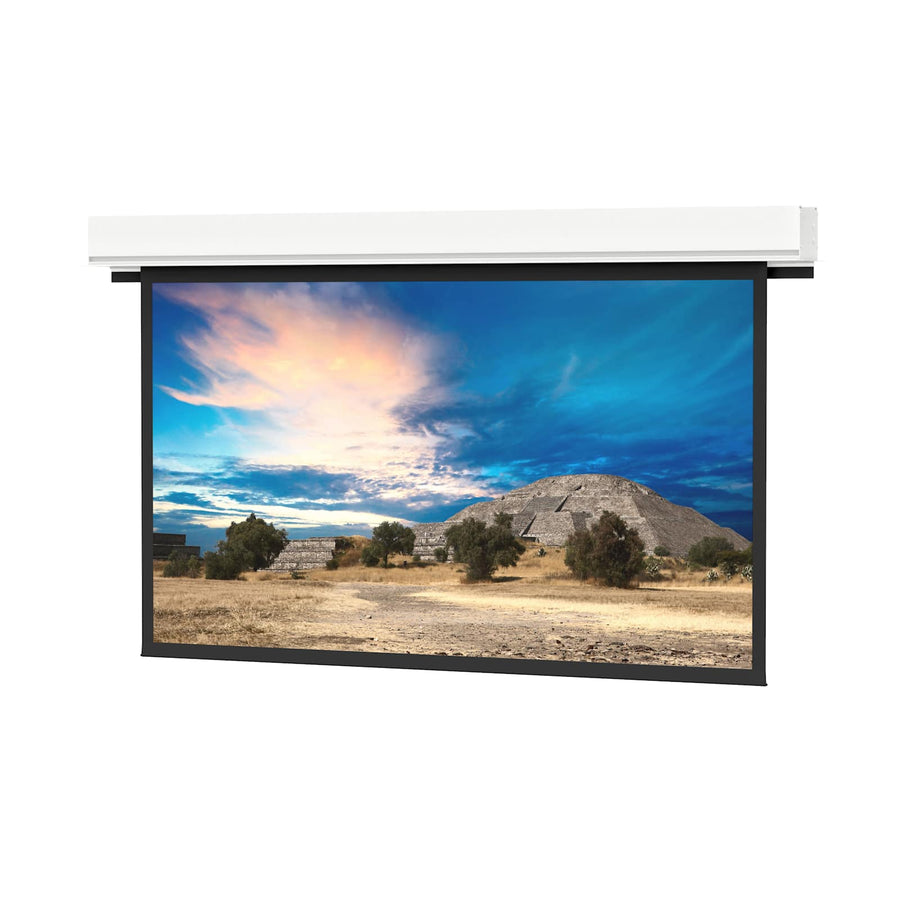

Ceiling recessed electric screen, 60" x 96" (113" diagonal), High Contrast Matte White surface, with automatic closure door
The Da-Lite 34573B is a ceiling recessed electric screen designed for large venue environments requiring a high-quality projection surface. This 60" x 96" (113" diagonal) model features a High Contrast Matte White non-tensioned surface optimized for front projection. It is designed to be installed with the ceiling trim in place, allowing the screen case to be hidden within a rough opening and eliminating the need for additional finishing trim work once installed. This specific SKU is a Case/Box Only for Rough-In selection, allowing for a two-stage installation where the housing is installed during rough-in construction and the screen surface assembly is completed during the finishing stage. This unit includes a standard 120V (60Hz) motor and features standard low voltage control. The screen is configured with a standard black drop and includes an automatic closure door to protect the surface. This TAA compliant, US-made product also features a white powder-coated case and a standard black backing to help retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 113 in (287 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Dimensions | 122" x 13" x 10" (309.9 x 33 x 25.4 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 60" x 96" or 113" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068110601 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation method for the 34573B screen?
This is a ceiling recessed screen designed for installation during the rough-in stage. The case can be installed early, with the screen surface assembly added during the final finishing stage.
Does this screen include a closure door?
Yes, the 34573B includes an automatic closure door to protect the High Contrast Matte White surface when the screen is retracted.
What control options are available for this model?
The screen features standard low voltage control. You can also add a Da-Lite 40975 Low Voltage Wall Switch or a Da-Lite 98837 Locking Switch Cover Plate.
What is the difference between this and a standard Advantage screen?
This specific SKU is the Case/Box Only for Rough-In version, intended for recessed installation where the housing is concealed within the ceiling structure.
Is this product TAA compliant for federal projects?
Yes, the 34573B is TAA compliant and is manufactured in the US.
