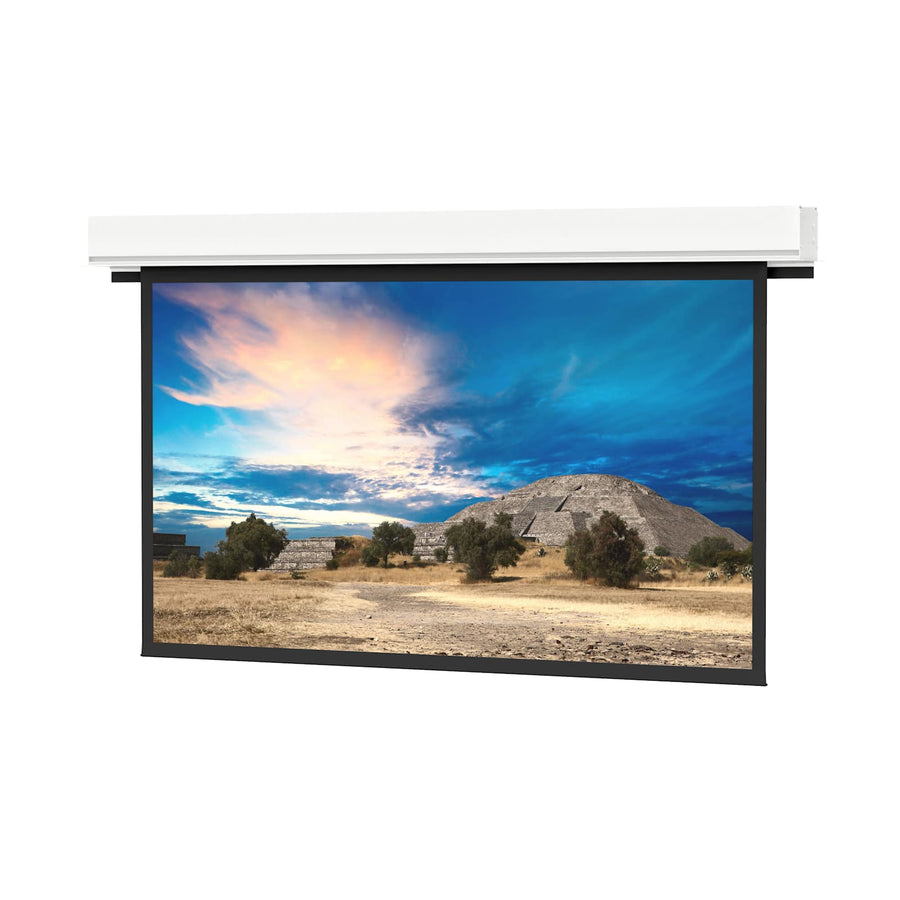

Da-Lite Advantage Series, 60" x 60" with High Contrast Matte White - 92584
Square ceiling recessed electric screen, 60" x 60" size, featuring high contrast matte white surface and automatic closure door
The Da-Lite 92584 is a ceiling recessed electric screen designed for professional front projection applications. This square 60" x 60" (152.4 cm height) screen features a High Contrast Matte White non-tensioned surface, which is optimized for high-quality image reproduction. Part of the Advantage Series, this unit includes an automatic closure door to protect the screen surface when not in use. The system is powered by a standard 120V (60Hz) motor and features built-in standard low voltage control for simplified integration into existing control systems. The white powder-coated case is UL Plenum rated, making it suitable for various ceiling installations. For installers, the Advantage Series offers a two-stage installation process, allowing the screen case to be mounted during the rough-in stage and the surface assembly to be added during final finishing. This specific SKU features a standard black drop to maintain image brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 85 in (215.9 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Weight | 81 lbs (36.7 kg) |
| Size | 60" x 60" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will this screen fit my ceiling installation requirements?
Yes, the 92584 is designed for ceiling recessed applications. The Advantage Series allows for a two-stage installation where the case is installed during rough-in and the surface is added during finishing.
What type of control system does this screen use?
This model features standard low voltage control built into the motor, which provides flexibility for integration with various AV control systems.
Is this screen TAA compliant for government projects?
Yes, this Da-Lite 92584 model is TAA Compliant and carries the necessary certifications for such installations.
How is the screen surface protected when not in use?
The unit includes an automatic closure door that protects the High Contrast Matte White surface from dust and debris.
What is the installation requirement for the ceiling?
The case is UL Plenum rated. The Advantage Series uses sliding installation brackets to provide mounting flexibility for attachment to the structure above a drop ceiling.
