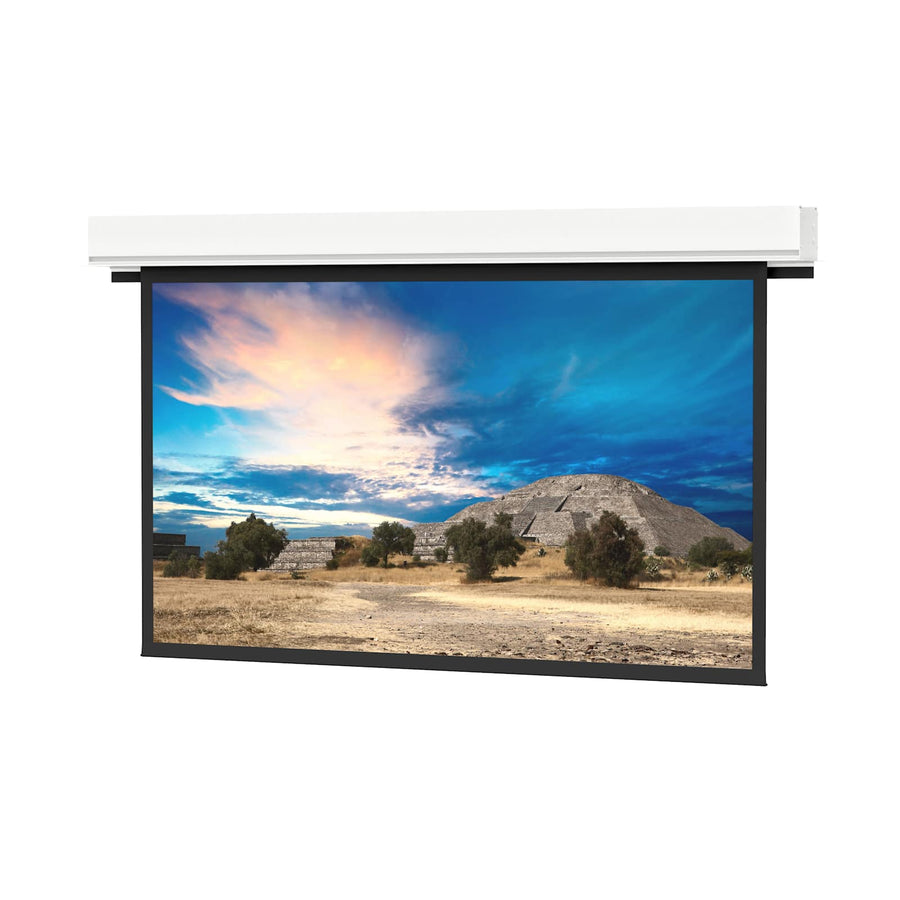

Da-Lite Advantage Series, 50" x 67" with High Contrast Matte White - 92592E
Ceiling recessed electric screen with 50" x 67" High Contrast Matte White surface and automatic closure door
The Da-Lite 92592E is a ceiling recessed electric screen designed for professional projection environments. This Advantage Series unit features a 50" x 67" High Contrast Matte White surface, optimized for 4:3 video format front projection. The screen is engineered for seamless integration into ceiling architectures; its design includes integrated ceiling trim to conceal the rough opening, removing the need for additional finish work. This specific model includes an automatic closure door to protect the screen surface when not in use. Built for large venue applications, the screen utilizes a standard black drop to maintain brightness during front projection. The assembly features a white powder-coated case for a clean aesthetic and is TAA compliant. For international installations, this unit is equipped with a 220V (50Hz) motor. Installation is flexible via sliding brackets, allowing the housing to be mounted to the structure above a drop ceiling during the rough-in stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 93 lbs (42.2 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 92592E screen work with my ceiling setup?
Yes, this is a ceiling recessed model designed to conceal the rough opening with integrated trim. It uses sliding installation brackets that allow for mounting to structures above a drop ceiling.
What control options are available for the 92592E?
This screen features standard Low Voltage Control (LVC). You can also add a Da-Lite Low Voltage Wall Switch (SKU 40975) for manual operation.
Does this screen include a protective cover?
Yes, the 92592E includes an automatic closure door that covers the screen when it is in the retracted position.
What is the aspect ratio and projection type for this model?
This screen is configured for a 4:3 video format and is intended for front projection using a High Contrast Matte White surface.
Which documents are available for submittals?
The Advantage Series provides comprehensive technical resources including a full specification sheet, installation and connection instructions, and CAD and BIM models for integration.
