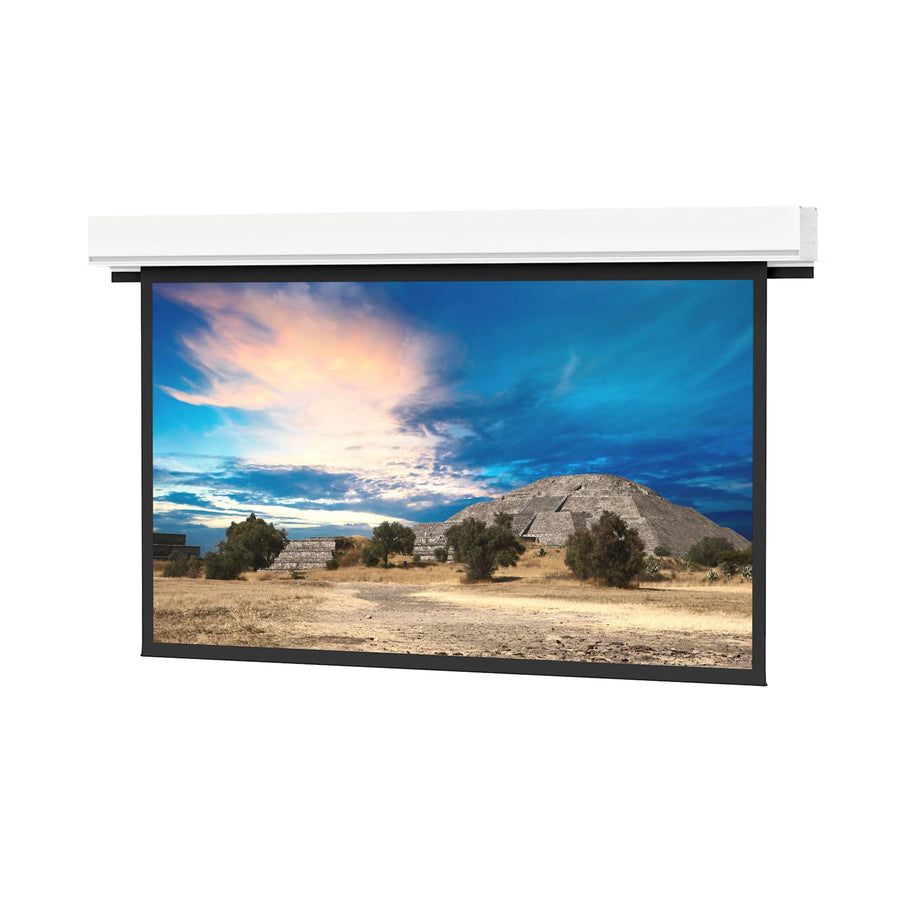

Da-Lite Advantage Series, 45" x 80" with High Contrast Matte White - 92597E
Ceiling recessed electric screen, 45" x 80" (92" diagonal), with High Contrast Matte White surface and automatic closure door
The Da-Lite 92597E is a ceiling recessed electric screen designed for professional environments requiring a clean, integrated look. This 45" x 80" (92" diagonal) unit features a High Contrast Matte White, non-tensioned surface optimized for front projection. It is built with an automatic closure door and a standard black drop to maintain image brightness. For international installations, this specific model is equipped with a 220V (50Hz) motor. The Advantage Series is designed for two-stage installation: the white powder-coated case can be installed during the rough-in construction stage, while the screen surface assembly is added during the finishing stage. This model is TAA compliant and features a UL plenum rated case. For operation, it utilizes standard low voltage control, providing flexibility for integration with existing control systems. This screen is part of the Advantage Series, which offers specialized solutions for large venue applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 122 lbs (55.3 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | High Contrast Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 92597E fit my ceiling installation?
Yes, this is a ceiling recessed electric screen designed for integration during the rough-in stage, featuring sliding installation brackets for flexible attachment to the structure above a drop ceiling.
What electrical requirements are needed for this screen?
This specific SKU is equipped with a 220V (50Hz) motor intended for export use and includes standard low voltage control.
What additional accessories are available for the 92597E?
You can add a Da-Lite Low Voltage Wall Switch (SKU 40975) or a Da-Lite Locking Switch Cover Plate (SKU 98837) for improved control and security.
What is the screen surface type and projection compatibility?
The 92597E features a non-tensioned High Contrast Matte White surface specifically designed for front projection applications.
Which documents are available for submittals?
Technical information is available via the Advantage Series Specification Sheet, the Product Information Sheet, and CAD or BIM models for architectural integration.
