Da-Lite Advantage Series, 43" x 57" with Matte White - 88118F
Ceiling recessed electric screen for 4:3 video, featuring a 72" diagonal matte white surface and automatic closure door

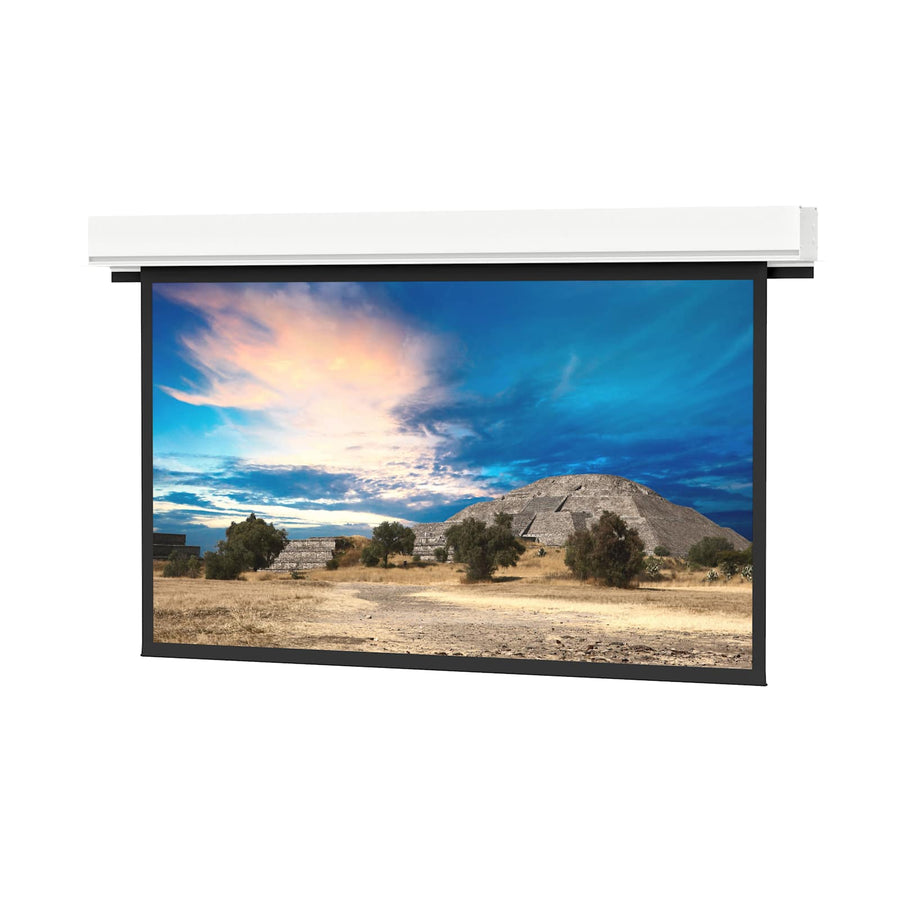

The Da-Lite 88118F is an Advantage Series ceiling recessed electric screen designed for professional environments requiring a clean, integrated look. This 72" diagonal screen features a 43" x 57" matte white non-tensioned surface in a 4:3 video format, making it suitable for standard resolution front projection applications. The unit is equipped with a standard 120V (60Hz) motor and includes an automatic closure door to protect the screen surface when not in use. This specific SKU represents the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. For installation flexibility, the system features a two-stage process where the case can be installed during the rough-in construction stage and the surface assembly can be added during the finishing stage. It is TAA compliant and features a white powder-coated, UL Plenum rated case for a clean aesthetic in ceiling applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 72 in (182.9 cm) |
| Screen Height | 43 in (109.2 cm) |
| Shipping Weight | 22 lbs (10 kg) |
| Size | 43" x 57" or 72" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 88118F?
This SKU includes the screen surface, roller, and motor assembly only. The screen case and box must be ordered as separate items.
Does this screen require additional trim work after installation?
No, the Advantage Series is designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional trim work.
What mounting requirements are needed for this recessed screen?
The series utilizes sliding installation brackets that allow for mounting flexibility when attaching the housing to the structure above a drop ceiling.
What accessories are compatible with this model?
You can add a Da-Lite Low Voltage Wall Switch (SKU 40975) or a Da-Lite Locking Switch Cover Plate (SKU 98837) to your order.
Is the 88118F suitable for plenum space installation?
Yes, the case for this model is UL Plenum rated for safe installation in such environments.
