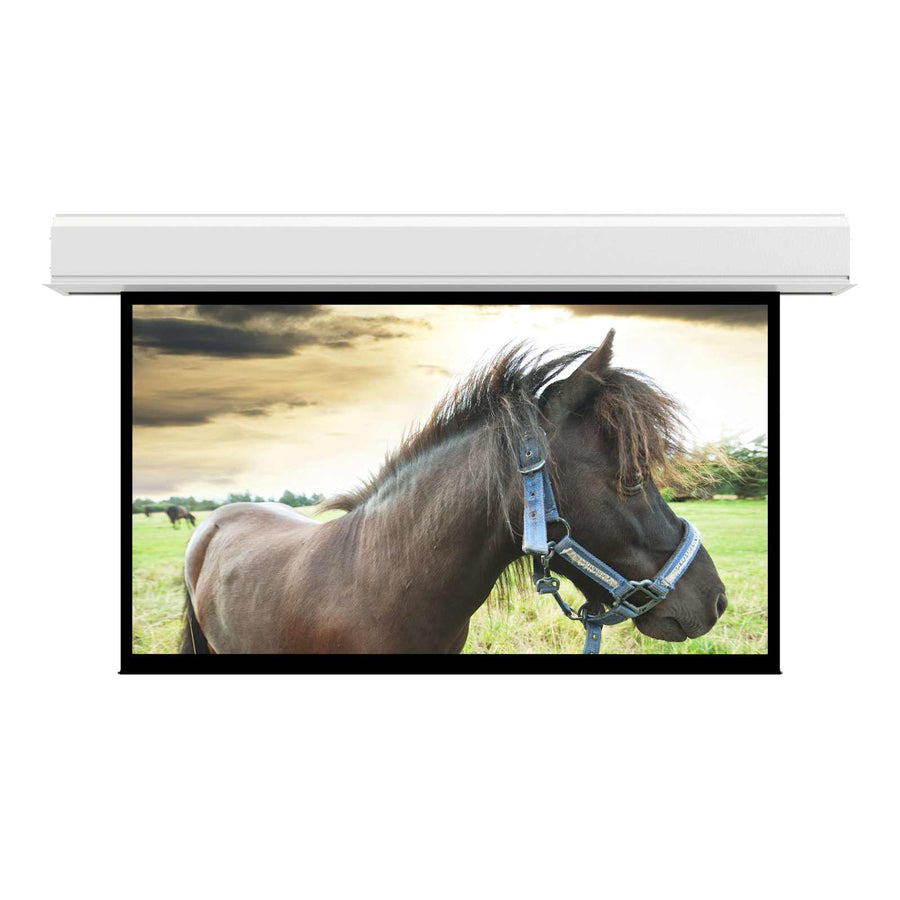

Da-Lite Advantage Series, 264" x 264" with Matte White - 36992L
Square ceiling recessed electric projection screen, 264" x 264" with Matte White surface and standard low voltage control
The Da-Lite 36992L is a large venue, ceiling recessed electric projection screen designed for square format applications. Featuring a 264" x 264" screen size and a 373 in (947.4 cm) diagonal, this unit is built for high-impact front projection in large environments. The matte white non-tensioned surface is paired with a standard black drop to maintain projected brightness. This screen is part of the Advantage Series, which features a white powder-coated case for a clean aesthetic and is UL Plenum rated for safety in ceiling installations. The series is designed for flexible two-stage installation, allowing the housing to be installed during the rough-in phase and the surface assembly during the finishing phase. It comes equipped with a standard 120V (60Hz) motor and includes built-in standard low voltage control for streamlined wiring. This TAA compliant product is manufactured in the US, providing a reliable solution for professional integration into ceiling architectures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 373 in (947.4 cm) |
| Screen Height | 264 in (670.6 cm) |
| Shipping Dimensions | 287" x 18" x 23" (729 x 45.7 x 58.4 cm) |
| Shipping Weight | 945 lbs (428.6 kg) |
| Size | 264" x 264" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068526501 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What are the dimensions of the 36992L screen?
The screen features a 264" x 264" surface area and a 373 in (947.4 cm) diagonal measurement.
Can this screen be used in plenum environments?
Yes, the housing for this model is UL Plenum rated, making it suitable for ceiling recessed installation in plenum spaces.
What kind of controls are included with the 36992L?
This unit features built-in standard low voltage control and is compatible with accessories like the Da-Lite 40975 Low Voltage Wall Switch.
Is this screen suitable for front projection?
Yes, it is designed specifically for front projection and features a standard black drop to help retain brightness on the Matte White surface.
What is the installation requirement for the 36992L?
It is a ceiling recessed screen that allows for a two-stage installation, enabling the case to be installed during rough-in and the surface during finishing.
