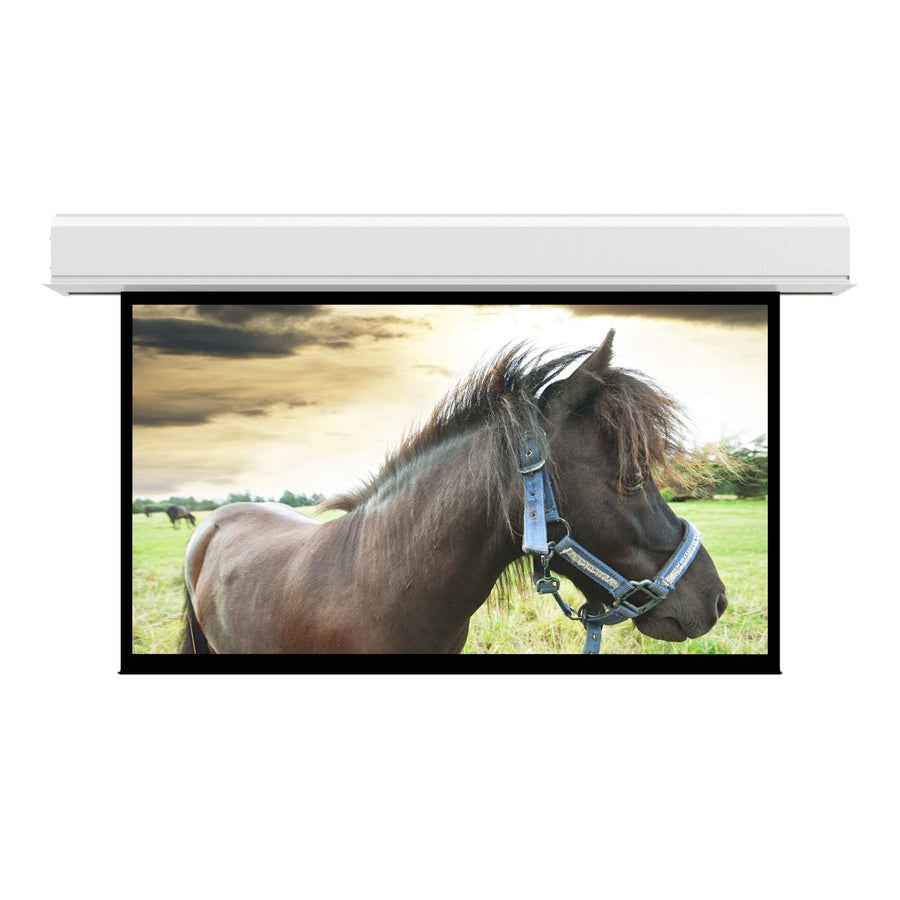

Da-Lite Advantage Series, 216" x 216" with Matte White - 36988EFL
Large venue square electric screen, 216" x 216" (548.6 cm x 548.6 cm), featuring a matte white non-tensioned surface for front projection
The Da-Lite 36988EFL is a large venue electric screen designed for ceiling recessed applications. This 216" x 216" square format screen features a non-tensioned matte white surface optimized for front projection. Engineered for high-impact environments, this unit is part of the Advantage Series, which allows for a two-stage installation process. Installers can mount the white powder-coated, UL Plenum rated case during the rough-in construction stage, then install the surface assembly during the finishing stage to ensure a clean, professional look. This specific SKU (36988EFL) is sold as the surface, roller, and motor assembly only; the screen case and box must be ordered separately. It is equipped with a 220V (50Hz) motor for export markets and includes standard low voltage control with a slot-style closure door. For deployment, this model utilizes a standard black drop to maintain brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 305 in (774.7 cm) |
| Screen Height | 216 in (548.6 cm) |
| Size | 216" x 216" |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Square |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
You'll need these with it
Questions about this part
What is included in this specific SKU?
The 36988EFL includes the screen surface, roller, and motor assembly only. The screen case and box must be ordered separately.
Is the case suitable for plenum air spaces?
Yes, the white powder-coated case for this Advantage Series screen is UL Plenum rated.
What type of control does this screen use?
This model features standard low voltage control and utilizes a Decora-style, three-button wall switch.
Does this screen require additional trim work after installation?
No, the Advantage Series is designed with ceiling trim in place to conceal the rough opening once installed.
What is the voltage for the motor on the 36988EFL?
This specific model is equipped with a 220V (50Hz) motor intended for export use.
