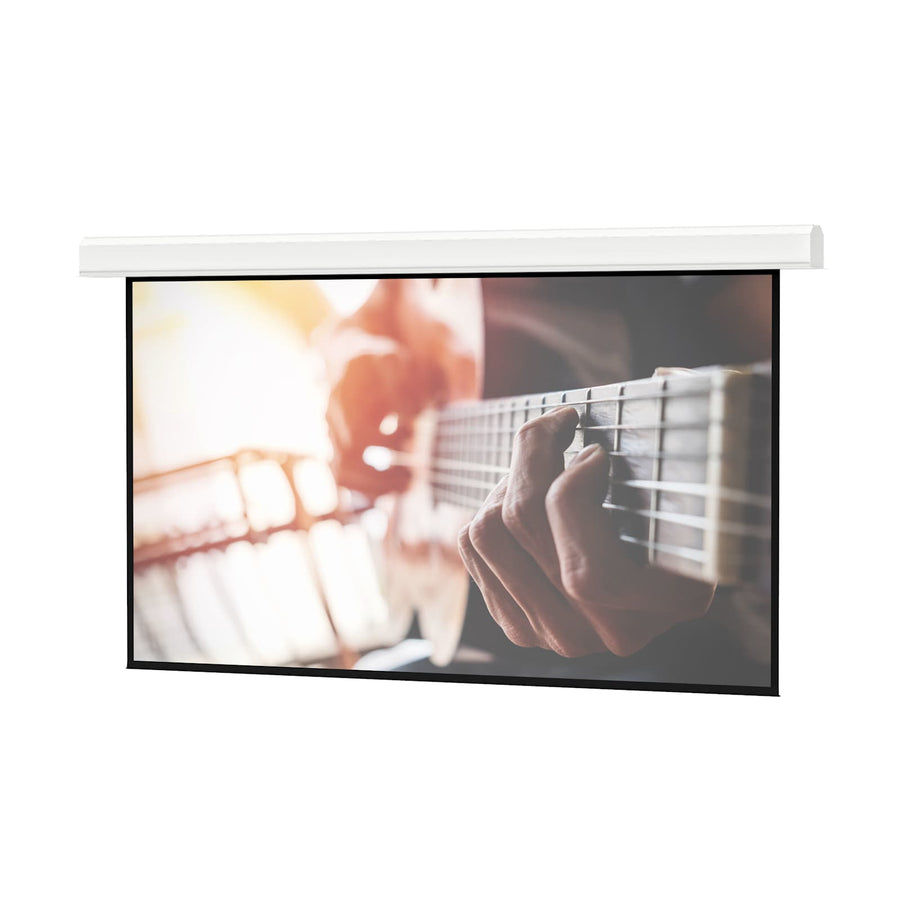

Da-Lite Advantage Series, 213" x 284" with Matte White - 36872F
Ceiling recessed electric screen for large venues, featuring a 213" x 284" Matte White surface and automatic closure door
The Da-Lite 36872F is an Advantage Series ceiling recessed electric screen designed for large venue front projection environments. This 213" x 284" screen features a Matte White non-tensioned surface and a 4:3 video screen format. Engineered for professional installations, the series allows for a two-stage installation process: the screen case can be installed during the rough-in construction phase, while the screen surface assembly is installed during the finishing stage. This SKU is a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. It includes an automatic closure door and utilizes a standard black drop. This model features standard 120V (60Hz) motor operation and comes equipped with standard low voltage control. For high-end aesthetic integration, this unit is TAA compliant and features a white powder-coated case. The standard black backing is designed to retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 355 in (901.7 cm) |
| Screen Height | 213 in (541 cm) |
| Shipping Dimensions | 311" x 13" x 16" (789.9 x 33 x 40.6 cm) |
| Shipping Weight | 613 lbs (278.1 kg) |
| Size | 213" x 284" or 355" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068549890 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Does this screen include the mounting case?
No, this specific SKU (36872F) is the Surface, Roller, and Motor Assembly Only. The screen case and box must be ordered separately to complete the installation.
What is the required power for this screen?
The 36872F operates on a standard 120V (60Hz) motor and includes standard low voltage control for flexible operation.
Is this screen suitable for plenum spaces?
Yes, the Advantage Series features a UL plenum rated case, making it suitable for many commercial ceiling environments.
What is the total surface area of the screen?
The screen dimensions are 213" x 284", which provides a 355" diagonal projection area.
Which documents are available for submittals?
Installers can access the Advantage Series Specification Sheet, BIM models, CAD models, and the official Installation and Connections manual for submittals.
