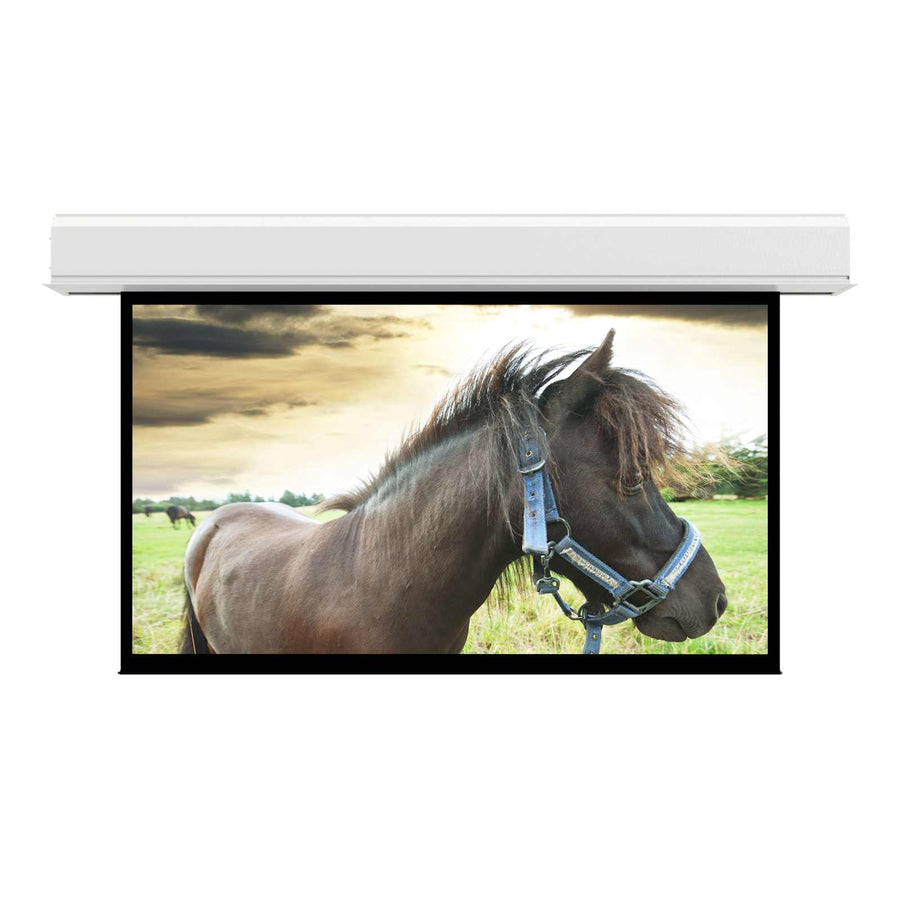

Da-Lite Advantage Series, 177" x 236" with Matte White - 36979EL
Ceiling recessed electric screen with 177" x 236" Matte White surface, 295" diagonal, and standard low voltage control
The Da-Lite 36979EL is an electric, ceiling recessed screen from the Advantage Series, designed for large venue applications. This complete screen unit features a 177" x 236" (449.6 x 600 mm) Matte White non-tensioned surface optimized for 4:3 video front projection. It includes a standard black drop to maintain high projected brightness and a slot-style closure door. This SKU is configured with a 220V (50Hz) motor intended for export markets and features standard low voltage control for flexible operation. The white powder-coated case is UL Plenum rated, providing a clean aesthetic that is TAA compliant. For installation, the two-stage design allows for the housing to be mounted during the rough-in stage, with the surface assembly completed during the finishing stage. The single roller design utilizes a suspension system that helps minimize the visual impact of the black drop.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 295 in (749.3 cm) |
| Screen Height | 177 in (449.6 cm) |
| Shipping Dimensions | 263" x 18" x 23" (668 x 45.7 x 58.4 cm) |
| Shipping Weight | 805 lbs (365.1 kg) |
| Size | 177" x 236" or 295" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 717068523999 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the exact size of the 36979EL screen surface?
The screen has a surface size of 177 in (449.6 cm) in height and 236 in (599.4 cm) in width, totaling a 295 in (749.3 cm) diagonal.
Does this screen include the necessary control hardware?
This SKU features standard low voltage control (LVC). You can also purchase a Da-Lite Low Voltage Wall Switch, part number 40975, for operation.
Is the 36979EL suitable for plenum ceiling environments?
Yes, the white powder-coated case for this Advantage Series screen is UL Plenum rated for safe installation in such environments.
What type of projection is this screen intended for?
The 36979EL is designed for front projection using a Matte White non-tensioned surface in a 4:3 video format.
How much weight and space is required for shipping this unit?
The shipping weight is 805 lbs (365.1 kg) and the shipping dimensions are 263" x 18" x 23" (668 x 45.7 x 58.4 cm).
