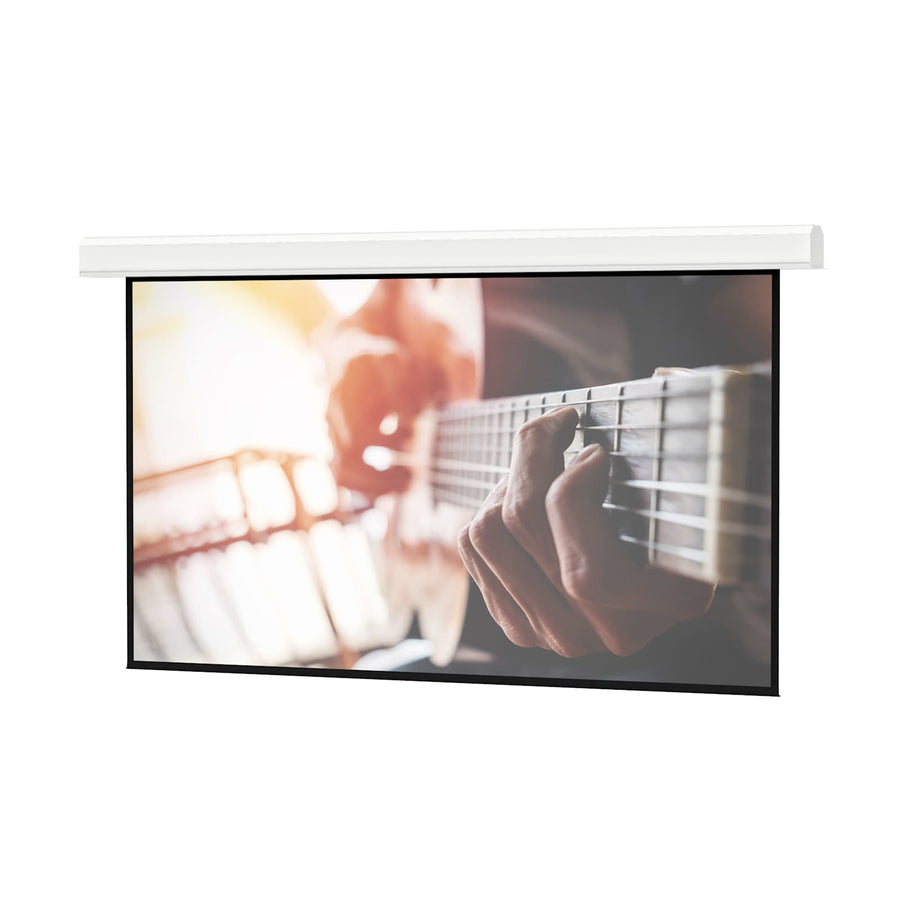

Da-Lite Advantage Series, 177.5" x 284" with Matte White - 14198EF
Large venue ceiling recessed electric screen with 177.5" x 284" matte white surface and automatic closure door
The Da-Lite 14198EF is an Advantage Series ceiling recessed electric screen designed for large venue front projection. This specific model features a 177.5" x 284" (335" diagonal) screen size with a Wide (16:10) format and a matte white, non-tensioned surface. Designed for seamless integration, this series includes ceiling trim to conceal the rough opening, which eliminates the need for additional finishing trim after installation. This SKU is the Surface, Roller, and Motor Assembly Only; the case or box must be ordered separately. It is equipped with an automatic closure door and a standard black drop. The unit utilizes a 220V (50Hz) motor intended for export and features standard low voltage control for flexible operation. For a clean aesthetic, the assembly includes a white powder-coated case and a standard black backing to help maintain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 335 in (850.9 cm) |
| Screen Height | 177.5 in (450.9 cm) |
| Size | 177.5" x 284" or 335" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
You'll need these with it
Questions about this part
What is required to complete the installation of the 14198EF?
This SKU is the Surface, Roller, and Motor Assembly Only. You must order the case or box separately to complete the assembly.
How is the screen operated and controlled?
The 14198EF features standard low voltage control and includes an automatic closure door. It is compatible with a Decora-style, three-button wall switch.
Can this screen be used in plenum-rated environments?
Yes, the Advantage Series case is UL Plenum rated, making it suitable for such environments.
Does this screen include a black border?
This model features a Standard Black Drop, which is the black border located above the projection surface.
What is the surface type for this projection screen?
The 14198EF uses a matte white, non-tensioned surface designed for front projection in large venue settings.
