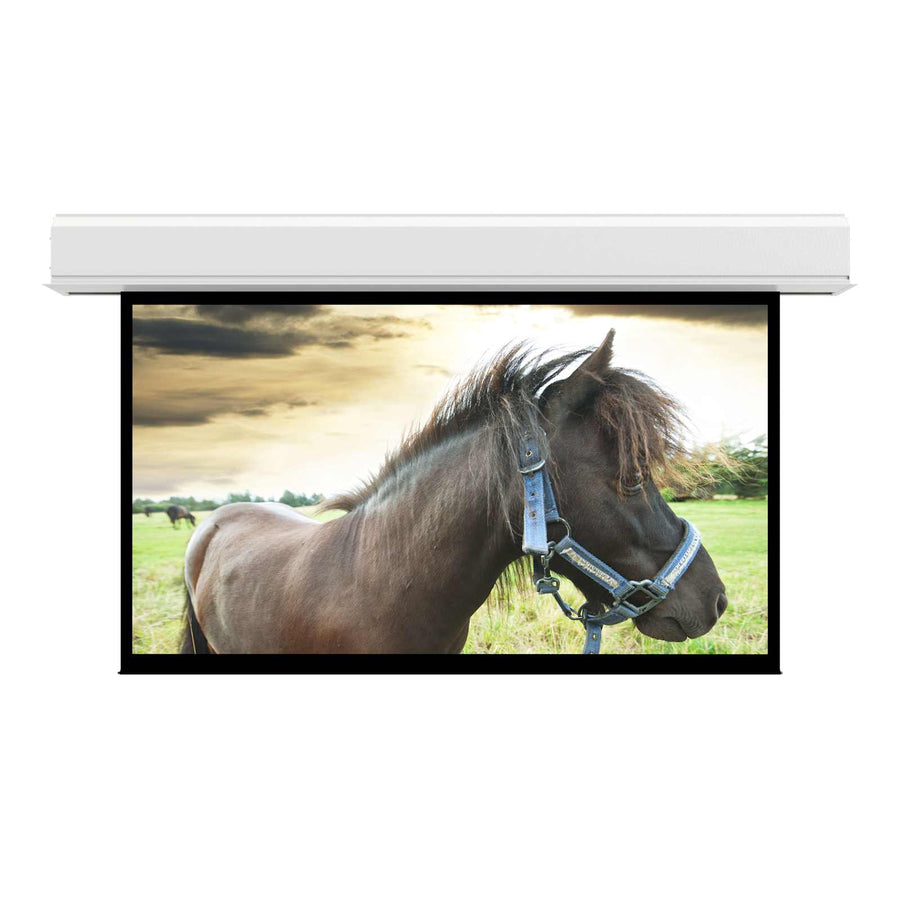

Da-Lite Advantage Series, 162.5" x 260" with Matte White - 14203BL
Large venue ceiling recessed electric screen, 162.5" x 260" size, Matte White surface, 16:10 Wide format
The Da-Lite 14203BL is an Advantage Series electric screen designed for ceiling recessed applications in large venue environments. This 162.5" x 260" (307" diagonal) screen features a 16:10 Wide aspect ratio and is finished with a Matte White non-tensioned surface. The unit is built for front projection and includes a standard black drop to maintain brightness on the projection surface. The white powder-coated case is UL Plenum rated, ensuring it meets safety requirements for air-handling spaces. For installation flexibility, the housing uses sliding brackets to facilitate attachment to structures above a drop ceiling. This SKU is configured as a Case/Box Only for Rough-In, meaning the screen housing is installed during the rough-in construction stage. The system utilizes a standard 120V (60Hz) motor equipped with built-in standard low voltage control for simplified operation. The closure door features a slot design for a clean, recessed finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 307 in (779.8 cm) |
| Screen Height | 162.5 in (412.8 cm) |
| Size | 162.5" x 260" or 307" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
You'll need these with it
Questions about this part
What is the screen size and aspect ratio for the 14203BL?
The 14203BL features a 162.5" x 260" dimension, which is a 307" diagonal, in a 16:10 Wide aspect ratio.
What are the mounting requirements for this recessed screen?
This is a Case/Box Only for Rough-In SKU. It is designed for ceiling recessed applications and uses sliding installation brackets for mounting to structures above a drop ceiling.
Is this screen suitable for plenum environments?
Yes, the white powder-coated case for the 14203BL is UL Plenum rated.
What type of projection and surface should I expect?
This is a front projection screen featuring a Matte White non-tensioned surface with a standard black drop to improve projected brightness.
What electrical requirements are needed for installation?
The screen is equipped with a standard 120V (60Hz) motor and includes built-in standard low voltage control.
