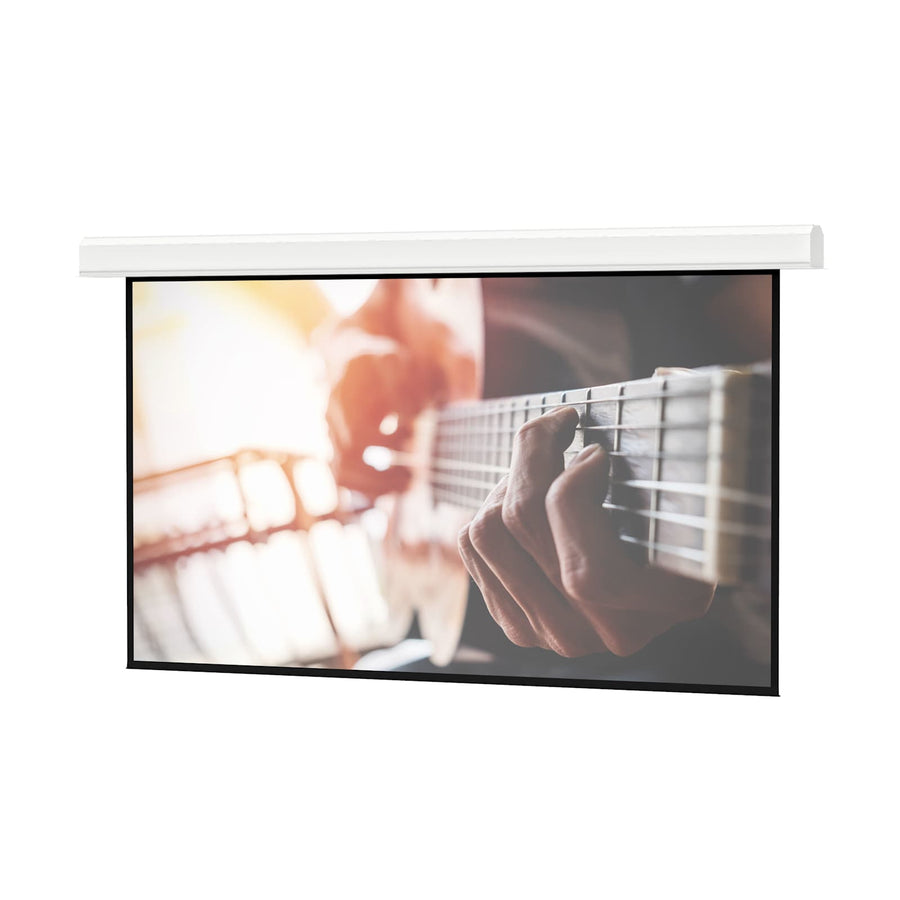

Da-Lite Advantage Series, 162.5" x 260" with Matte White - 14197EF
Large venue ceiling recessed electric screen, 162.5" x 260" (307" diagonal) with Matte White surface and automatic closure door
The Da-Lite 14197EF is a large venue, ceiling recessed electric screen measuring 162.5" x 260" with a 307 in (779.8 cm) diagonal. Designed for professional front projection applications, this non-tensioned screen features a Matte White surface and a standard black drop. This specific SKU is the Surface, Roller, and Motor Assembly Only; the case or box must be ordered separately. It is configured with a 220V (50Hz) motor for export and includes an automatic closure door for protection when not in use. The series features built-in standard low voltage control (LVC) to provide flexible operation. For installation, this unit is designed for two-stage mounting, allowing the case to be installed during the rough-in construction stage and the surface assembly during the finishing stage. The white powder-coated case is UL Plenum rated for safety in ventilated ceiling spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 307 in (779.8 cm) |
| Screen Height | 162.5 in (412.8 cm) |
| Size | 162.5" x 260" or 307" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 14197EF?
This SKU is the Surface, Roller, and Motor Assembly Only. You must order the screen case or box separately to complete the installation.
How is the 14197EF installed in a ceiling?
It uses a two-stage installation process where the case is installed during rough-in construction, and the screen surface assembly is added during the finishing stage.
What voltage is required for this screen motor?
This specific model is equipped with a 220V (50Hz) motor designed for export applications.
Does this screen include a way to control it?
Yes, it features standard low voltage control (LVC) built into the motor for flexible operation.
Is the 14197EF suitable for plenum rated spaces?
Yes, the white powder-coated case is UL Plenum rated.
