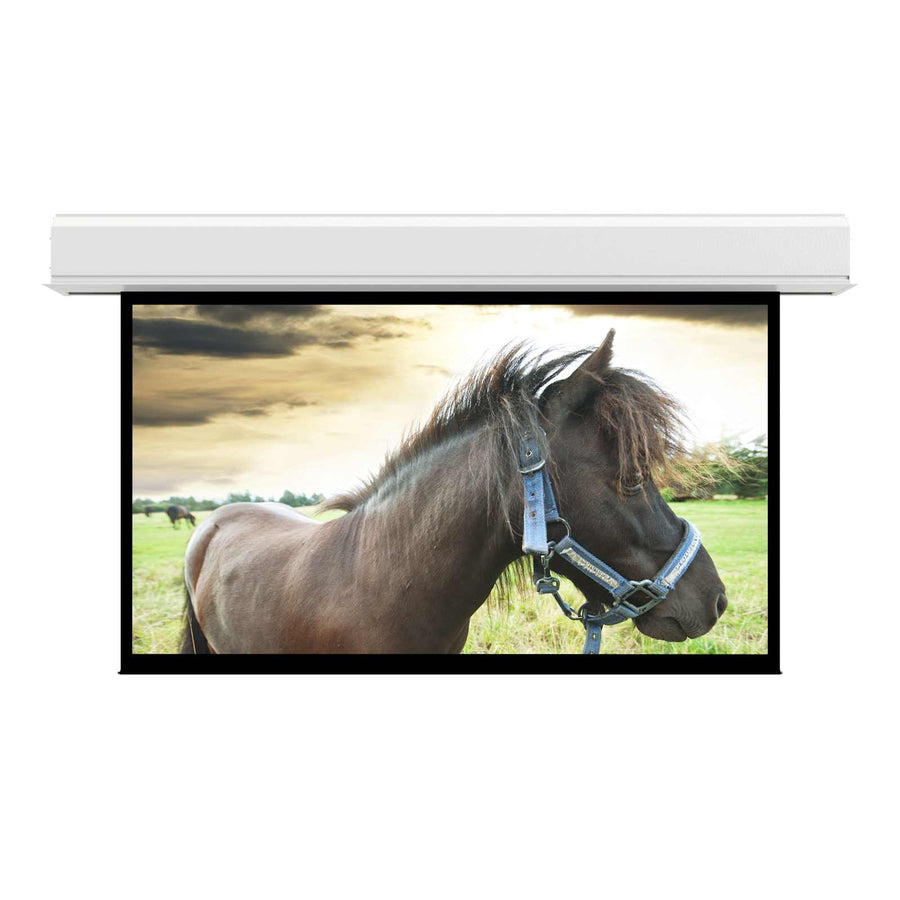

Da-Lite Advantage Series, 160" x 284" with Matte White - 14200FL
160" x 284" Matte White ceiling recessed electric screen for large venue front projection
The Da-Lite 14200FL is a large venue, ceiling recessed electric projection screen measuring 160" x 284" (326" diagonal). This Advantage Series screen features a Matte White, non-tensioned surface designed for front projection. It is configured as a Surface, Roller, and Motor Assembly Only; the case or box must be ordered separately. Designed for ceiling recessed applications, the series includes built-in standard 120V (60Hz) motorization with standard low voltage control. The setup features a slot-style closure door and a standard black drop. For installation flexibility, this model utilizes sliding installation brackets to facilitate attachment to the structure above a drop ceiling. The white powder-coated case provides a clean aesthetic, while the standard black backing is designed to retain projected brightness on the front projection surface. This screen is part of the Advantage Series, which offers a two-stage installation process allowing the case to be installed during rough-in and the surface assembly during finishing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 326 in (828 cm) |
| Screen Height | 160 in (406.4 cm) |
| Size | 160" x 284" or 326" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
Resources
You'll need these with it
Questions about this part
What is included with the Da-Lite 14200FL?
This SKU is the Surface, Roller, and Motor Assembly Only. The screen case or box must be ordered separately.
What electrical requirements are needed for installation?
The unit features a standard 120V (60Hz) motor with built-in standard low voltage control.
Can I install this in a drop ceiling?
Yes, this model uses sliding installation brackets that allow for flexible mounting to the structure above a drop ceiling.
What type of projection does this screen support?
This is a front projection screen featuring a Matte White, non-tensioned surface.
Which documents are available for submittals?
You can access the Advantage Series Specification Sheet, Installation and Connections manual, and BIM/CAD models via the Resources tab.
