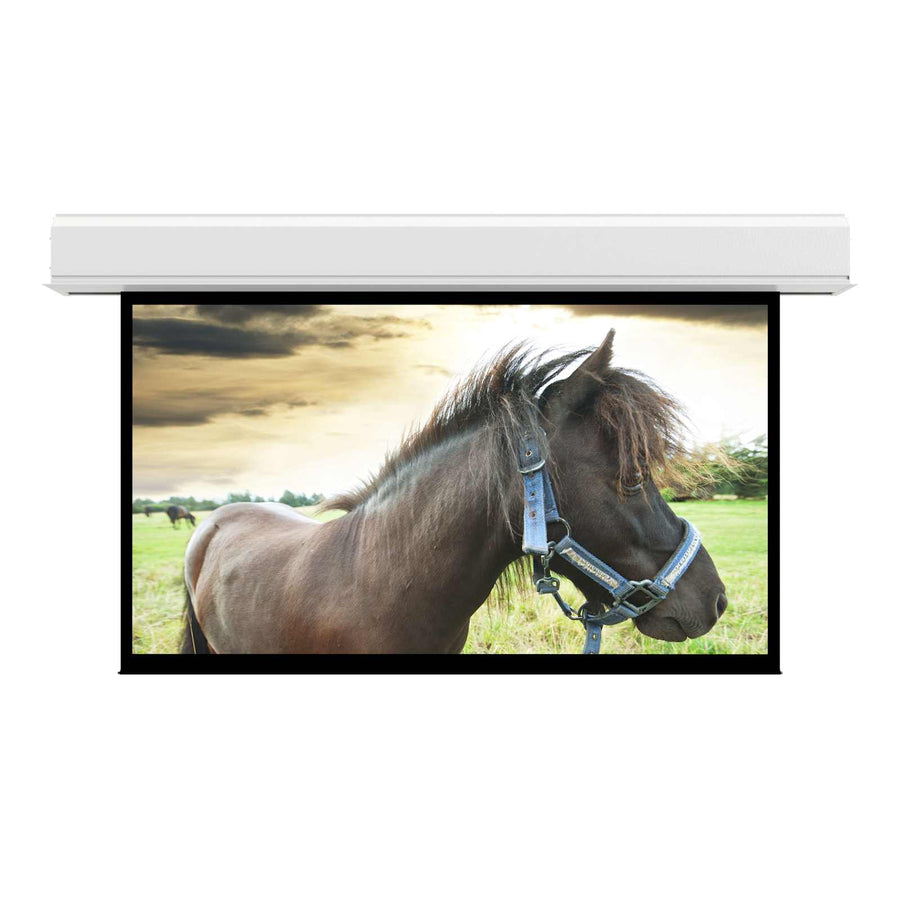

Da-Lite Advantage Series, 147.5" x 236" with Matte White - 14202FL
Large venue ceiling recessed electric screen, 147.5" x 236" wide format, Matte White non-tensioned surface with SightLine™ technology
The Da-Lite 14202FL is a large venue electric projection screen designed for ceiling recessed applications. This 147.5" x 236" (278" diagonal) screen features a Wide 16:10 aspect ratio and a non-tensioned Matte White surface. It is built for front projection and utilizes a standard black drop to maximize brightness on the projection surface. This specific SKU is for the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. The assembly features standard 120V (60Hz) motor operation and includes built-in standard low voltage control. As part of the Advantage Series, this model supports SightLine™ technology, providing a floating screen appearance by utilizing thin cables to eliminate the visual impact of a traditional black drop. The white powder-coated case is UL Plenum rated for safe installation in plenum spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 278 in (706.1 cm) |
| Screen Height | 147.5 in (374.7 cm) |
| Shipping Dimensions | 267" x 18" x 23" (678.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 262 lbs (118.8 kg) |
| Size | 147.5" x 236" or 278" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Matte White (non-tensioned) |
| TAA Compliant | Yes |
| UPC | 840236935031 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Does this screen include the ceiling housing?
No, this SKU (14202FL) is for the Surface, Roller, and Motor Assembly only. The case and box must be ordered separately.
Is this screen TAA compliant for federal projects?
Yes, this product is TAA compliant and features a US country of origin.
What is required for a recessed installation?
This unit is designed for ceiling recessed applications and features a white powder-coated, UL Plenum rated case.
Which control options are available for the 14202FL?
The assembly includes standard low voltage control and is compatible with a Decora-style, three-button wall switch.
Can I adjust the drop distance after installation?
Yes, SightLine™ technology allows for variable vertical placement between the ceiling and the top of the screen.
